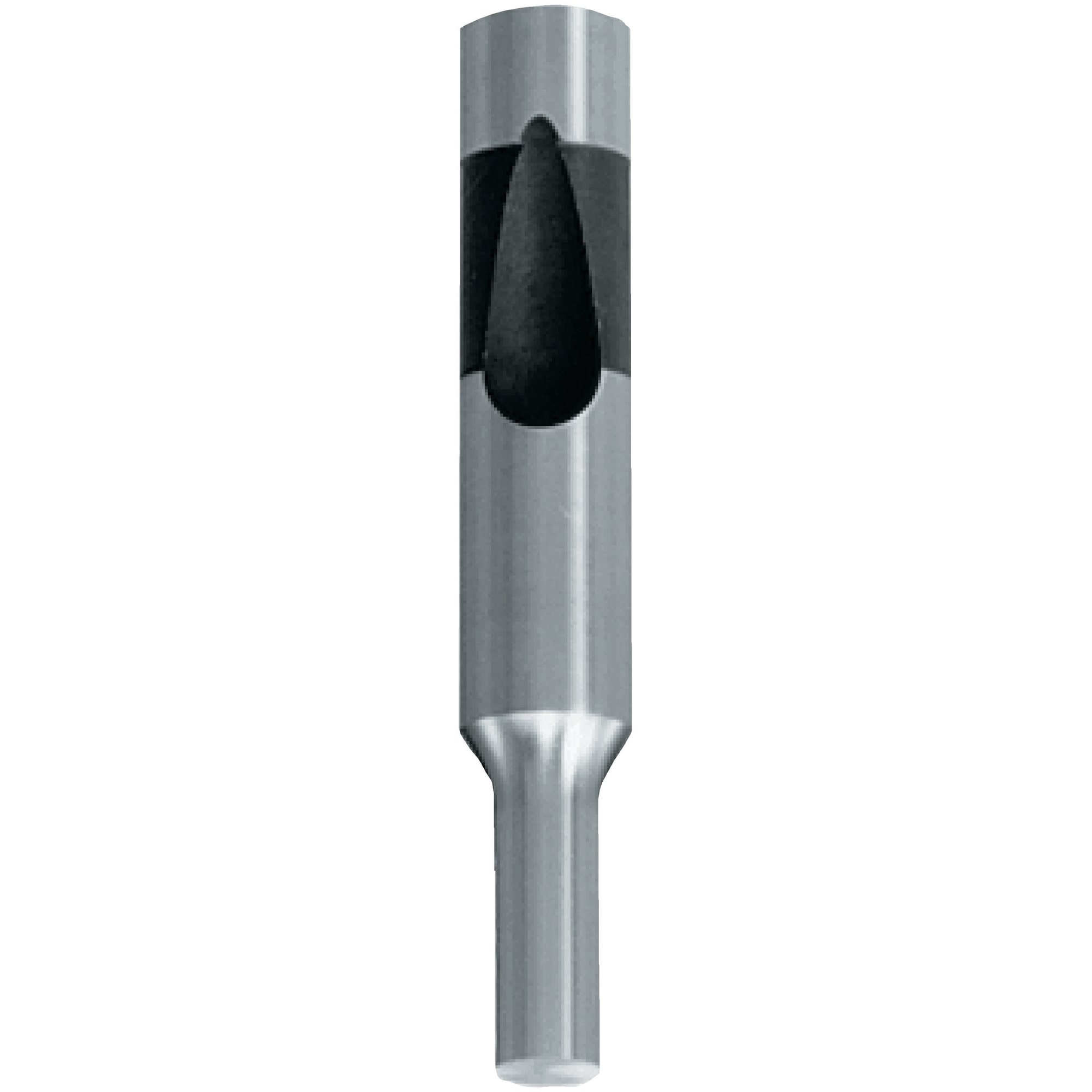

Cutting punches / ball seat receptacle / heavy design

Cutting punches / ball seat receptacle / heavy design

Click on this image to zoom in.

Click on this image to zoom in.

MISUMI

MISUMI

  • BALL-LOCK
  • SKH51

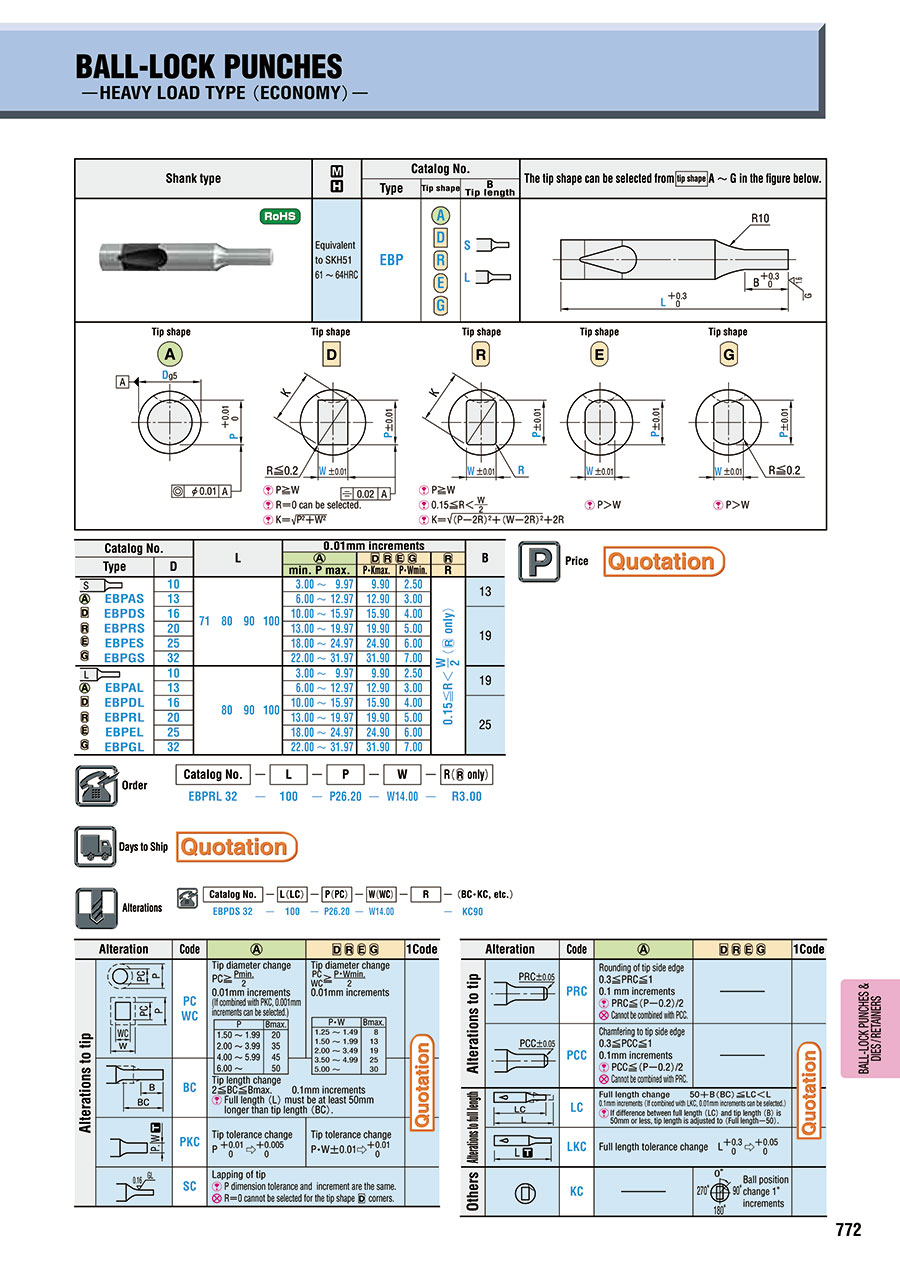

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Data to be displayed
30
45
60
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. Next >>
Part Number
EBPAL10-[80,​90,​100]-P[3-9.97/0.01]
EBPAL10-[80,​90,​100]-PC[1.5-2.99/0.01]
EBPAL10-LC[47-99.9/0.1]-P[3-9.97/0.01]
EBPAL10-LC[47-99.9/0.1]-PC[1.5-2.99/0.01]
EBPAL13-[80,​90,​100]-P[6-12.97/0.01]
EBPAL13-[80,​90,​100]-PC[3-5.99/0.01]
EBPAL13-LC[47-99.9/0.1]-P[6-12.97/0.01]
EBPAL13-LC[47-99.9/0.1]-PC[3-5.99/0.01]
EBPAL16-[80,​90,​100]-P[10-15.97/0.01]
EBPAL16-[80,​90,​100]-PC[5-9.99/0.01]
EBPAL16-LC[47-99.9/0.1]-P[10-15.97/0.01]
EBPAL16-LC[47-99.9/0.1]-PC[5-9.99/0.01]
EBPAL20-[80,​90,​100]-P[13-19.97/0.01]
EBPAL20-[80,​90,​100]-PC[6.5-12.99/0.01]
EBPAL20-LC[47-99.9/0.1]-P[13-19.97/0.01]
EBPAL20-LC[47-99.9/0.1]-PC[6.5-12.99/0.01]
EBPAL25-[80,​90,​100]-P[18-24.97/0.01]
EBPAL25-[80,​90,​100]-PC[9-17.99/0.01]
EBPAL25-LC[47-99.9/0.1]-P[18-24.97/0.01]
EBPAL25-LC[47-99.9/0.1]-PC[9-17.99/0.01]
EBPAL32-[80,​90,​100]-P[22-31.97/0.01]
EBPAL32-[80,​90,​100]-PC[11-21.99/0.01]
EBPAL32-LC[47-99.9/0.1]-P[22-31.97/0.01]
EBPAL32-LC[47-99.9/0.1]-PC[11-21.99/0.01]
EBPAS10-[71,​80,​90,​100]-P[3-9.97/0.01]
EBPAS10-[71,​80,​90,​100]-PC[1.5-2.99/0.01]
EBPAS10-LC[47-99.9/0.1]-P[3-9.97/0.01]
EBPAS10-LC[47-99.9/0.1]-PC[1.5-2.99/0.01]
EBPAS13-[71,​80,​90,​100]-P[6-12.97/0.01]
EBPAS13-[71,​80,​90,​100]-PC[3-5.99/0.01]
EBPAS13-LC[47-99.9/0.1]-P[6-12.97/0.01]
EBPAS13-LC[47-99.9/0.1]-PC[3-5.99/0.01]
EBPAS16-[71,​80,​90,​100]-P[10-15.97/0.01]
EBPAS16-[71,​80,​90,​100]-PC[5-9.99/0.01]
EBPAS16-LC[47-99.9/0.1]-P[10-15.97/0.01]
EBPAS16-LC[47-99.9/0.1]-PC[5-9.99/0.01]
EBPAS20-[71,​80,​90,​100]-P[13-19.97/0.01]
EBPAS20-[71,​80,​90,​100]-PC[6.5-12.99/0.01]
EBPAS20-LC[47-99.9/0.1]-P[13-19.97/0.01]
EBPAS20-LC[47-99.9/0.1]-PC[6.5-12.99/0.01]
EBPAS25-[71,​80,​90,​100]-P[18-24.97/0.01]
EBPAS25-[71,​80,​90,​100]-PC[9-17.99/0.01]
EBPAS25-LC[47-99.9/0.1]-P[18-24.97/0.01]
EBPAS25-LC[47-99.9/0.1]-PC[9-17.99/0.01]
EBPAS32-[71,​80,​90,​100]-P[22-31.97/0.01]
EBPAS32-[71,​80,​90,​100]-PC[11-21.99/0.01]
EBPAS32-LC[47-99.9/0.1]-P[22-31.97/0.01]
EBPAS32-LC[47-99.9/0.1]-PC[11-21.99/0.01]
EBPDL10-[80,​90,​100]-P[2.5-9.9/0.01]-W[2.5-9.9/0.01]
EBPDL10-[80,​90,​100]-P[2.5-9.9/0.01]-WC[1.25-2.49/0.01]
EBPDL10-[80,​90,​100]-PC[1.25-2.49/0.01]-W[2.5-9.9/0.01]
EBPDL10-[80,​90,​100]-PC[1.25-2.49/0.01]-WC[1.25-2.49/0.01]
EBPDL10-LC[47-99.9/0.1]-P[2.5-9.9/0.01]-W[2.5-9.9/0.01]
EBPDL10-LC[47-99.9/0.1]-P[2.5-9.9/0.01]-WC[1.25-2.49/0.01]
EBPDL10-LC[47-99.9/0.1]-PC[1.25-2.49/0.01]-W[2.5-9.9/0.01]
EBPDL10-LC[47-99.9/0.1]-PC[1.25-2.49/0.01]-WC[1.25-2.49/0.01]
EBPDL13-[80,​90,​100]-P[3-12.9/0.01]-W[3-12.9/0.01]
EBPDL13-[80,​90,​100]-P[3-12.9/0.01]-WC[1.5-2.99/0.01]
EBPDL13-[80,​90,​100]-PC[1.5-2.99/0.01]-W[3-12.9/0.01]
EBPDL13-[80,​90,​100]-PC[1.5-2.99/0.01]-WC[1.5-2.99/0.01]
Part NumberMinimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSTip shape B (Tip length)
(mm) 		D (Shank diameter)
(mm) 		L (L dimension)
(mm) 		LC (Full length alteration)
(mm) 		P (Tip dimension)
(mm) 		PC (Tip dimension alteration)
(mm) 		R (Tip corner R)
(mm) 		W (Tip dimension)
(mm) 		WC (Tip dimension alteration)
(mm)
1 Quote 10AL1080 ～ 100-3 ～ 9.97----
1 Quote 10AL1080 ～ 100--1.5 ～ 2.99---
1 Quote 10AL10-47 ～ 99.93 ～ 9.97----
1 Quote 10AL10-47 ～ 99.9-1.5 ～ 2.99---
1 Quote 10AL1380 ～ 100-6 ～ 12.97----
1 Quote 10AL1380 ～ 100--3 ～ 5.99---
1 Quote 10AL13-47 ～ 99.96 ～ 12.97----
1 Quote 10AL13-47 ～ 99.9-3 ～ 5.99---
1 Quote 10AL1680 ～ 100-10 ～ 15.97----
1 Quote 10AL1680 ～ 100--5 ～ 9.99---
1 Quote 10AL16-47 ～ 99.910 ～ 15.97----
1 Quote 10AL16-47 ～ 99.9-5 ～ 9.99---
1 Quote 10AL2080 ～ 100-13 ～ 19.97----
1 Quote 10AL2080 ～ 100--6.5 ～ 12.99---
1 Quote 10AL20-47 ～ 99.913 ～ 19.97----
1 Quote 10AL20-47 ～ 99.9-6.5 ～ 12.99---
1 Quote 10AL2580 ～ 100-18 ～ 24.97----
1 Quote 10AL2580 ～ 100--9 ～ 17.99---
1 Quote 10AL25-47 ～ 99.918 ～ 24.97----
1 Quote 10AL25-47 ～ 99.9-9 ～ 17.99---
1 Quote 10AL3280 ～ 100-22 ～ 31.97----
1 Quote 10AL3280 ～ 100--11 ～ 21.99---
1 Quote 10AL32-47 ～ 99.922 ～ 31.97----
1 Quote 10AL32-47 ～ 99.9-11 ～ 21.99---
1 Quote 10AS1071 ～ 100-3 ～ 9.97----
1 Quote 10AS1071 ～ 100--1.5 ～ 2.99---
1 Quote 10AS10-47 ～ 99.93 ～ 9.97----
1 Quote 10AS10-47 ～ 99.9-1.5 ～ 2.99---
1 Quote 10AS1371 ～ 100-6 ～ 12.97----
1 Quote 10AS1371 ～ 100--3 ～ 5.99---
1 Quote 10AS13-47 ～ 99.96 ～ 12.97----
1 Quote 10AS13-47 ～ 99.9-3 ～ 5.99---
1 Quote 10AS1671 ～ 100-10 ～ 15.97----
1 Quote 10AS1671 ～ 100--5 ～ 9.99---
1 Quote 10AS16-47 ～ 99.910 ～ 15.97----
1 Quote 10AS16-47 ～ 99.9-5 ～ 9.99---
1 Quote 10AS2071 ～ 100-13 ～ 19.97----
1 Quote 10AS2071 ～ 100--6.5 ～ 12.99---
1 Quote 10AS20-47 ～ 99.913 ～ 19.97----
1 Quote 10AS20-47 ～ 99.9-6.5 ～ 12.99---
1 Quote 10AS2571 ～ 100-18 ～ 24.97----
1 Quote 10AS2571 ～ 100--9 ～ 17.99---
1 Quote 10AS25-47 ～ 99.918 ～ 24.97----
1 Quote 10AS25-47 ～ 99.9-9 ～ 17.99---
1 Quote 10AS3271 ～ 100-22 ～ 31.97----
1 Quote 10AS3271 ～ 100--11 ～ 21.99---
1 Quote 10AS32-47 ～ 99.922 ～ 31.97----
1 Quote 10AS32-47 ～ 99.9-11 ～ 21.99---
1 Quote 10DL1080 ～ 100-2.5 ～ 9.9--2.5 ～ 9.9-
1 Quote 10DL1080 ～ 100-2.5 ～ 9.9---1.25 ～ 2.49
1 Quote 10DL1080 ～ 100--1.25 ～ 2.49-2.5 ～ 9.9-
1 Quote 10DL1080 ～ 100--1.25 ～ 2.49--1.25 ～ 2.49
1 Quote 10DL10-47 ～ 99.92.5 ～ 9.9--2.5 ～ 9.9-
1 Quote 10DL10-47 ～ 99.92.5 ～ 9.9---1.25 ～ 2.49
1 Quote 10DL10-47 ～ 99.9-1.25 ～ 2.49-2.5 ～ 9.9-
1 Quote 10DL10-47 ～ 99.9-1.25 ～ 2.49--1.25 ～ 2.49
1 Quote 10DL1380 ～ 100-3 ～ 12.9--3 ～ 12.9-
1 Quote 10DL1380 ～ 100-3 ～ 12.9---1.5 ～ 2.99
1 Quote 10DL1380 ～ 100--1.5 ～ 2.99-3 ～ 12.9-
1 Quote 10DL1380 ～ 100--1.5 ～ 2.99--1.5 ～ 2.99

Loading...

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. Next >>


Basic information

Type Shoulder Material SKH51 Equivalent

Configure

Clear all

592Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Tip shape

    • A
    • D
    • R
    • E
    • G

    Clear

  • B (Tip length)(mm)

    • L
    • S

    Clear

  • D (Shank diameter)(mm)

    • 10
    • 13
    • 16
    • 20
    • 25
    • 32

    Clear

  • L (L dimension)(mm)

    • 71
    • 80
    • 90
    • 100

    Clear

  • LC (Full length alteration)(mm)

     [47-99.9/0.1mm Unit(s)]

    Clear

  • P (Tip dimension)(mm)

     [2.5-31.97/0.01mm Unit(s)]

    Clear

  • PC (Tip dimension alteration)(mm)

     [1.25-21.99/0.01mm Unit(s)]

    Clear

  • R (Tip corner R)(mm)

     [0.15-15.94/0.01mm Unit(s)]

    Clear

  • W (Tip dimension)(mm)

     [2.5-31.9/0.01mm Unit(s)]

    Clear

  • WC (Tip dimension alteration)(mm)

     [1.25-6.99/0.01mm Unit(s)]

    Clear

  • Type

    • EBPAL
    • EBPAS
    • EBPDL
    • EBPDS
    • EBPEL
    • EBPES
    • EBPGL
    • EBPGS
    • EBPRL
    • EBPRS

    Clear
