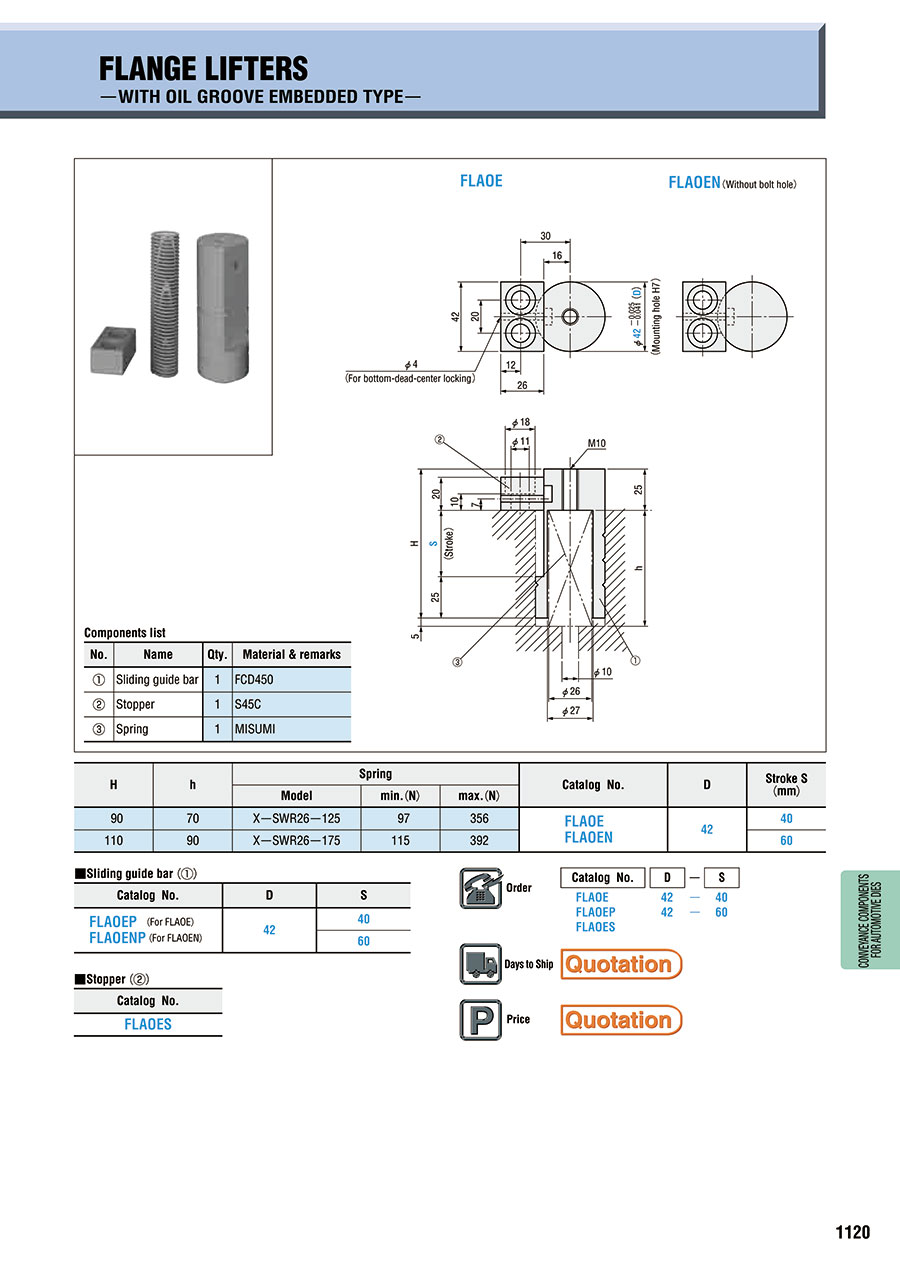

Flange Lifters -With Oil Groove Embedded Type-
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| FLAOE42-40 |
| FLAOE42-60 |
| FLAOEN42-40 |
| FLAOEN42-60 |
| FLAOENP42-40 |
| FLAOENP42-60 |
| FLAOEP42-40 |
| FLAOEP42-60 |
| FLAOES |
| Part Number | Minimum order quantity | Volume Discount | Devices Type | Lifters Type | Supporting Parts Type | S (Stroke) (mm) | D (Guide Levers Outer Diameter) (mm) | |
|---|---|---|---|---|---|---|---|---|
| 1 | Quote | Lifters | WITH OIL GROOVE EMBEDDED TYPE | - | 40 | 42 | ||
| 1 | Quote | Lifters | WITH OIL GROOVE EMBEDDED TYPE | - | 60 | 42 | ||
| 1 | Quote | Lifters | WITH OIL GROOVE EMBEDDED TYPE・WITHOUT BOLT HOLE TYPE | - | 40 | 42 | ||
| 1 | Quote | Lifters | WITH OIL GROOVE EMBEDDED TYPE・WITHOUT BOLT HOLE TYPE | - | 60 | 42 | ||
| 1 | Quote | Supporting Parts | - | Slide Guide Lever・WITHOUT BOLT HOLE TYPE | 40 | 42 | ||
| 1 | Quote | Supporting Parts | - | Slide Guide Lever・WITHOUT BOLT HOLE TYPE | 60 | 42 | ||
| 1 | Quote | Supporting Parts | - | Slide Guide Lever | 40 | 42 | ||
| 1 | Quote | Supporting Parts | - | Slide Guide Lever | 60 | 42 | ||
| 1 | Quote | Supporting Parts | - | STOPPERS | - | - |
Loading...
Basic information
| Brand | MISUMI |
|---|
Configure
Basic Attributes
-
Devices Type
- Lifters
- Supporting Parts
-
Lifters Type
- WITH OIL GROOVE EMBEDDED TYPE
- WITH OIL GROOVE EMBEDDED TYPE・WITHOUT BOLT HOLE TYPE
-
Supporting Parts Type
- STOPPERS
- Slide Guide Lever
- Slide Guide Lever・WITHOUT BOLT HOLE TYPE
-
S (Stroke)(mm)
- 40
- 60
-
D (Guide Levers Outer Diameter)(mm)
- 42
-
Type
- FLAOE
- FLAOEN
- FLAOENP
- FLAOEP
- FLAOES
-
Filter by CAD data type
- 2D
- 3D
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
