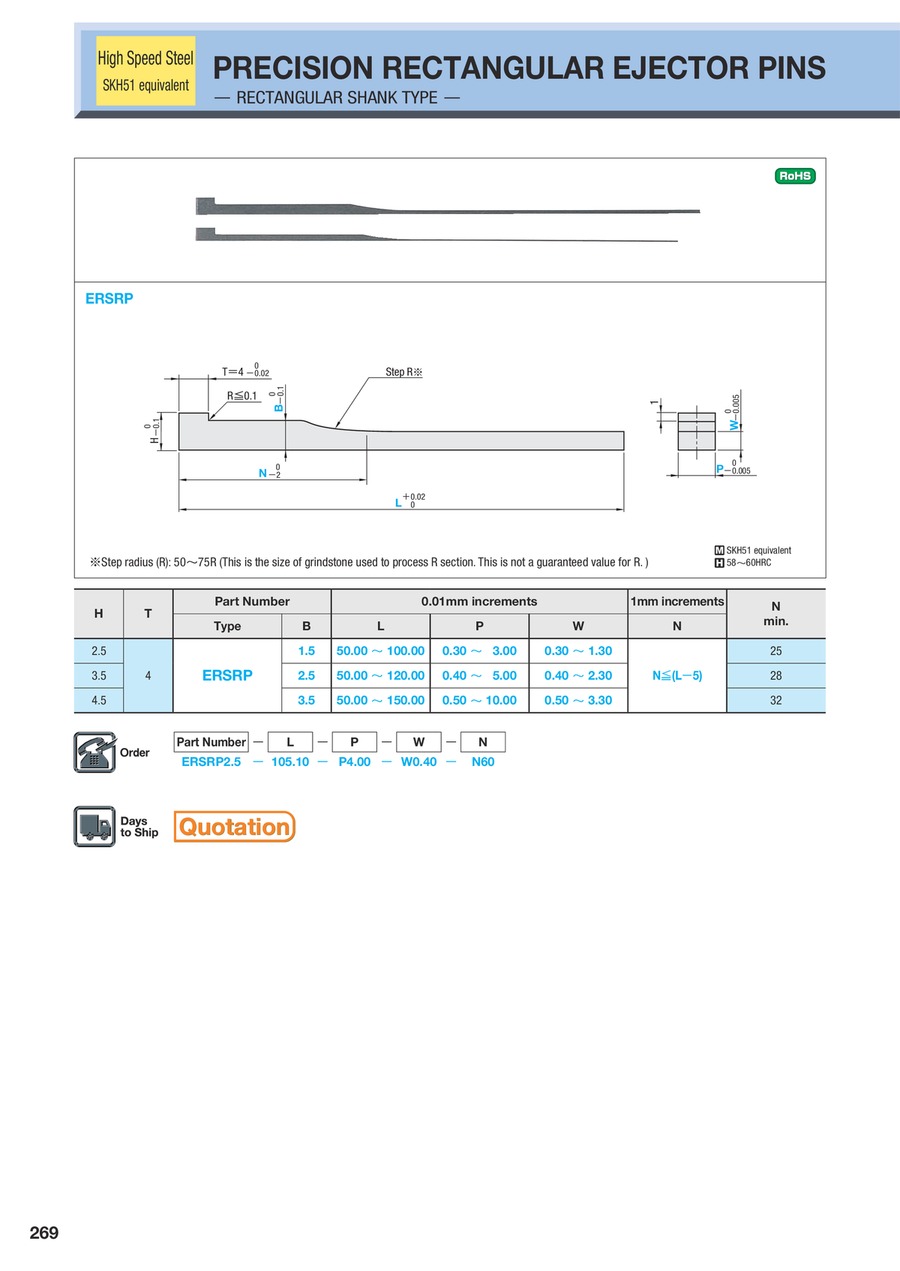

Precision flat ejector pins / rectangular head / HSS / dimensions configurable

Precision flat ejector pins / rectangular head / HSS / dimensions configurable

Click on this image to zoom in.

Click on this image to zoom in.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...
Part Number
ERSRP1.5-[50-100/0.01]-P[0.3-3/0.01]-W[0.3-1.3/0.01]-N[25-95/1]
ERSRP2.5-[50-120/0.01]-P[0.4-5/0.01]-W[0.4-2.3/0.01]-N[28-115/1]
ERSRP3.5-[50-150/0.01]-P[0.5-10/0.01]-W[0.5-3.3/0.01]-N[32-145/1]
Part NumberMinimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSP (Tip)
(mm)
W (Tip)
(mm)
L (L dimension)
(mm)
N
(mm)
B (Shank)
(mm)
1 Quote 100.3 ~ 30.3 ~ 1.350 ~ 10025 ~ 951.5
1 Quote 100.4 ~ 50.4 ~ 2.350 ~ 12028 ~ 1152.5
1 Quote 100.5 ~ 100.5 ~ 3.350 ~ 15032 ~ 1453.5

Loading...

  1. 1

Basic information

Material SKH51 P/W dimension tolerance (Reference tolerance) 0/-0.005 Surface treatment No
Head thickness 4mm(T4) Rectangular treatment No Tip shape No
Character engraving type No Number of engraving characters No R-Chamfered rectangular position No
C-Chamfered position No With/without gas release shape No Shape type Rectangular shank
Trimming Normal
