Lubrication-Free Bushing Block Type Housing Unit, Wide / Standard Type

Lubrication-Free Bushing Block Type Housing Unit, Wide / Standard Type

Click on this image to zoom in.

Click on this image to zoom in.

  • Volume Discount

(i)Remark

  • Please check the content on our website as the PDF does not contain the most up-to-date information.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

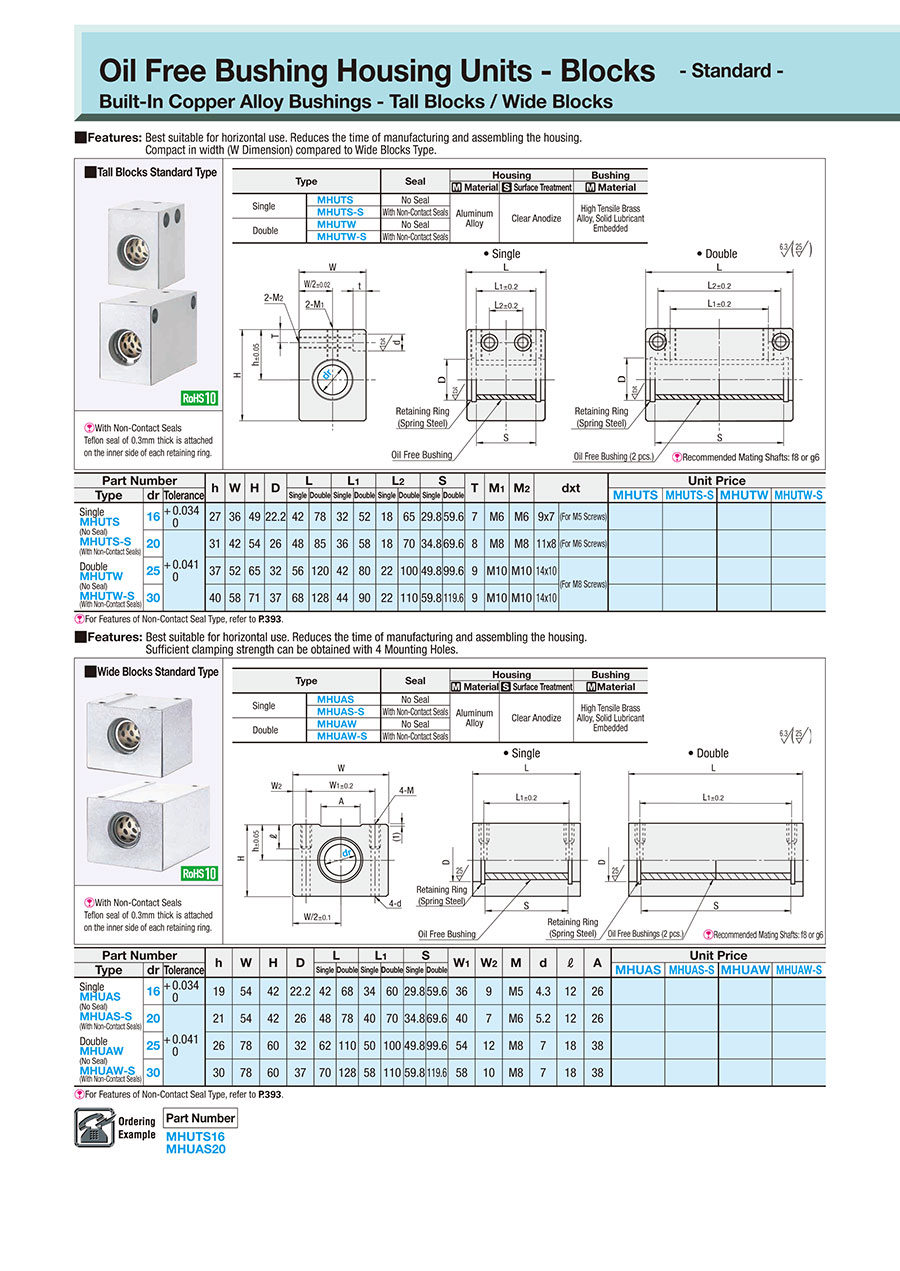

Oil Free Bushing Pillow Blocks/Wide Block Compact/Single Type:Related Image
Recommended Mating Shaft
Single・・・・・f8 or g6
Double・・・・f8

TypeSealHousingBushing
Material Surface TreatmentMaterial
SingleMHUASNo SealAluminum
Alloy
Clear AnodizeHigh Tensile Brass
Alloy,Solid Lubricant
Embedded
MHUAS-SWith Non-Contact Seals
DoubleMHUAWNo Seal
MHUAW-SWith Non-Contact Seals

Specifications

Part Number
MHUTS16
MHUAS20
Part NumberhWHDLL1SW1W2MdAUnit Price
TypedrToleranceSingleDoubleSingleDoubleSingleDoubleMHUASMHUAS-SMHUAWMHUAW-S
Single
MHUAS
(No Seal)
MHUAS-S
(With Non-Contact Seals)
Double
MHUAW
(No Seal)
MHUAW-S
(With Non-Contact Seals)
16+ 0.034
0
19544222.24268346029.859.6369M54.31226
20+ 0.041
0
215442264878407034.869.6407M65.21226
2526786032621105010049.899.65412M871838
3030786037701285811059.8119.65810M871838
For Features of Non-Contact Seal Type, refer to P.393.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...
Part Number
MHUAS16
MHUAS20
MHUAS25
MHUAS30
MHUAS-S16
MHUAS-S20
MHUAS-S25
MHUAS-S30
MHUAW16
MHUAW20
MHUAW25
MHUAW30
MHUAW-S16
MHUAW-S20
MHUAW-S25
MHUAW-S30
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSI.D. d
(mm)
Overall Length L
(mm)
Length Type Seal Type

36.81 €

1 Available 5 Days 1016421-fachNo Seal

39.00 €

1 Available 5 Days 1020481-fachNo Seal

66.39 €

1 Available 5 Days 1025621-fachNo Seal

81.55 €

1 Available 5 Days 1030701-fachNo Seal

40.72 €

1 Available 5 Days 1016421-fachWith Non-Contact Seals

42.91 €

1 Available 5 Days 1020481-fachWith Non-Contact Seals

70.80 €

1 Available 5 Days 1025621-fachWith Non-Contact Seals

85.96 €

1 Available 5 Days 1030701-fachWith Non-Contact Seals

81.07 €

1 Available 5 Days 101668Double-

84.85 €

1 Available 5 Days 102078Double-

141.47 €

1 Available 5 Days 1025110Double-

171.05 €

1 Available 5 Days 1030128Double-

84.85 €

1 Available 5 Days 101668Double-

88.76 €

1 Available 5 Days 102078Double-

145.88 €

1 Available 5 Days 1025110Double-

175.46 €

1 Available 5 Days 1030128Double-

Loading...

  1. 1

More Information

With Non-Contact Seals
fluoropolymer seal of 0.3mm thick is attached on the inner side of each retaining ring.

Basic information

Type Pillow Blocks Metallic High-Tensile Brass Alloy Maximum Allowable PV Value Range(N/mm2•m/s) 1.1 to 2.0
Maximum Allowable PV Value(N/mm²·m/s) 1.65-3.25 Max. Allowable Surface Pressure P(N/mm2) 29 Maximum Allowable Velocity(m/s) 0.5-1.0
Housing Material Aluminum Alloy Operating Temperature Range(°C) -40::150
