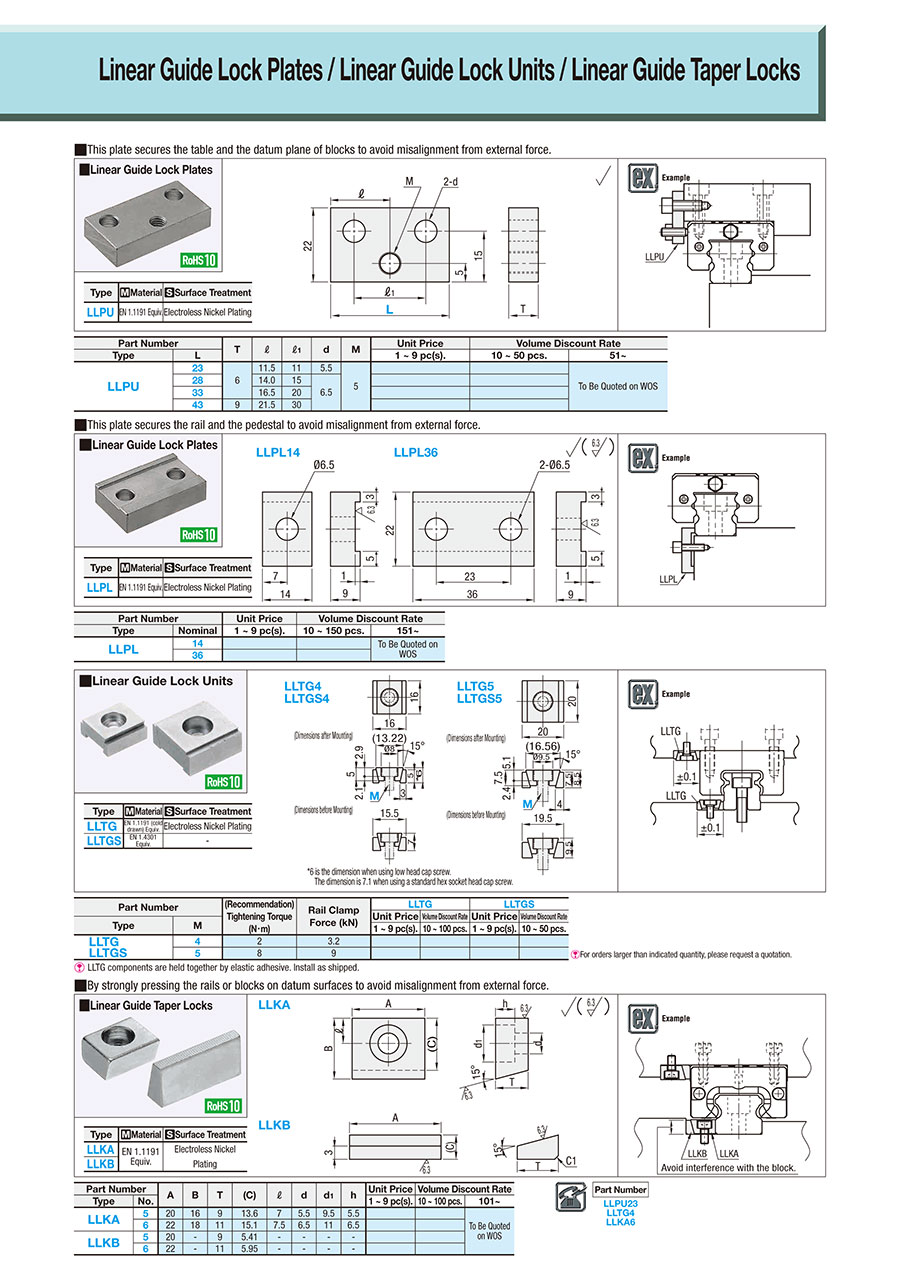

Linear Guide Lock Plates / Counterbored
Unit еxample related to this product
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Type | Material | Surface Treatment |
| LLKA | EN 1.1191 Equiv. | Electroless Nickel Plating |
| LLKB |
Specifications
| Part Number |
| LLPU23 LLTG4 LLKA6 |
| Part Number | A | B | T | (C) | ℓ | d | d1 | h | Unit Price | Volume Discount Rate | ||
| Type | No. | 1 ~ 9 pc(s). | 10 ~ 100 pcs. | 101~ | ||||||||
| LLKA | 5 | 20 | 16 | 9 | 13.6 | 7 | 5.5 | 9.5 | 5.5 | To Be Quoted on WOS | ||
| 6 | 22 | 18 | 11 | 15.1 | 7.5 | 6.5 | 11 | 6.5 | ||||
| LLKB | 5 | 20 | - | 9 | 5.41 | - | - | - | - | |||
| 6 | 22 | - | 11 | 5.95 | - | - | - | - | ||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Loading...
Example of Use
Basic information
| Type | Locks, Lock Units | Material | EN 1.1191 Equiv. (cold drawn) | Degrease Cleaning | Not Provided |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
