Brackets for Cam Followers

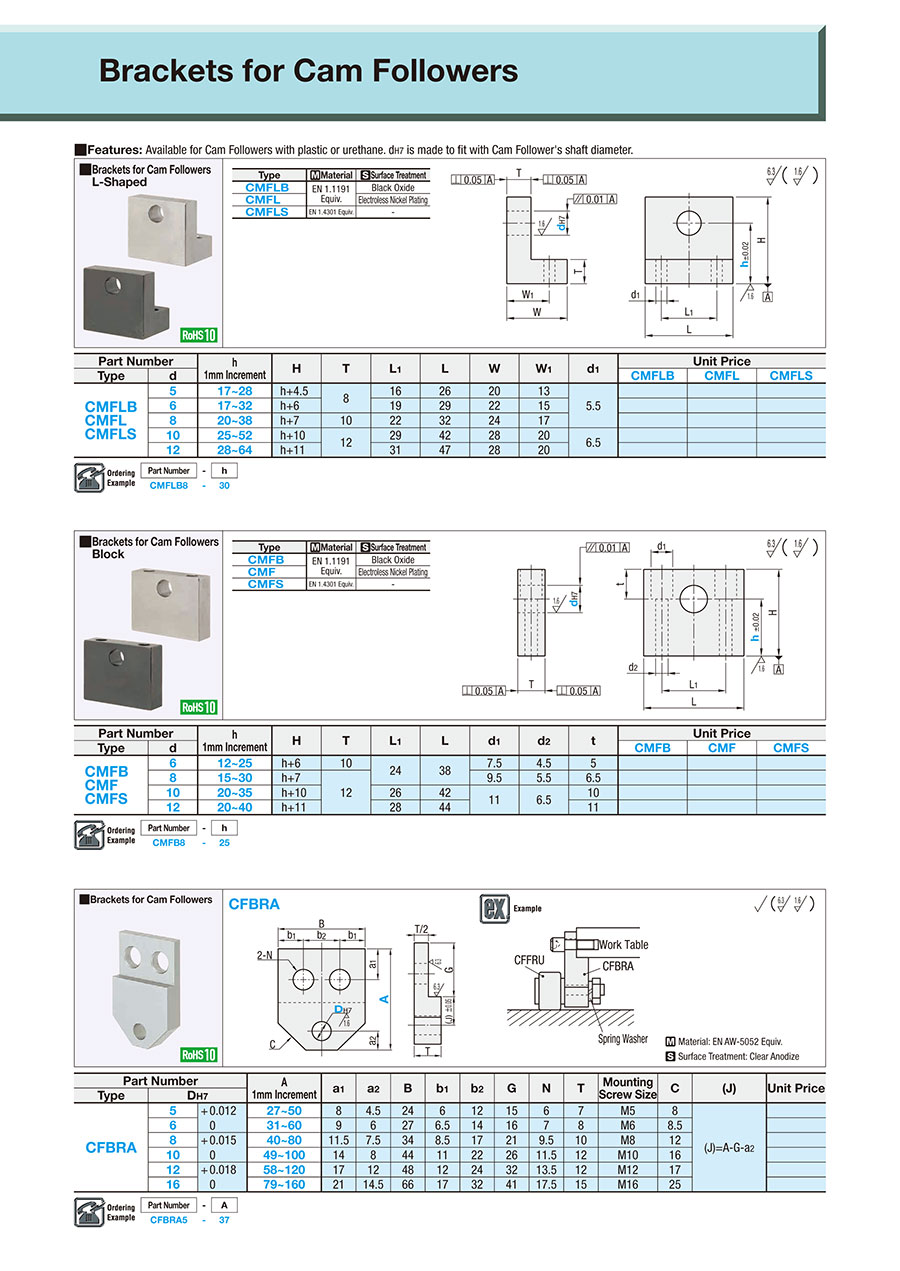

[Features] This is a holder specifically for cam followers. The material is EN AW-5052 Equiv. and the surface treatment is anodising (white).
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Material: EN AW-5052 Equiv.
Surface Treatment: Clear Anodize
Specifications
| Part Number | - | A |
| CFBRA5 | - | 37 |
| Part Number | A 1mm Increment | a1 | a2 | B | b1 | b2 | G | N | T | Mounting Screw Size | C | (J) | Unit Price | ||
| Type | DH7 | ||||||||||||||
| CFBRA | 5 | + 0.012 0 | 27~50 | 8 | 4.5 | 24 | 6 | 12 | 15 | 6 | 7 | M5 | 8 | (J)=A-G-a2 | |
| 6 | 31~60 | 9 | 6 | 27 | 6.5 | 14 | 16 | 7 | 8 | M6 | 8.5 | ||||
| 8 | + 0.015 0 | 40~80 | 11.5 | 7.5 | 34 | 8.5 | 17 | 21 | 9.5 | 10 | M8 | 12 | |||
| 10 | 49~100 | 14 | 8 | 44 | 11 | 22 | 26 | 11.5 | 12 | M10 | 16 | ||||
| 12 | + 0.018 0 | 58~120 | 17 | 12 | 48 | 12 | 24 | 32 | 13.5 | 12 | M12 | 17 | |||
| 16 | 79~160 | 21 | 14.5 | 66 | 17 | 32 | 41 | 17.5 | 15 | M16 | 25 | ||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Part Number
|
|---|
| CFBRA5-[27-50/1] |
| CFBRA6-[31-60/1] |
| CFBRA8-[40-80/1] |
| CFBRA10-[49-100/1] |
| CFBRA12-[58-120/1] |
| CFBRA16-[79-160/1] |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Stud Screw Nominal (M) (mm) | D (Ø) | A (mm) | |
|---|---|---|---|---|---|---|---|---|
- | 1 | 9 Days | 10 | M5 | 5 | 27 ～ 50 | ||
- | 1 | 9 Days | 10 | m6 | 6 | 31 ～ 60 | ||
- | 1 | 9 Days | 10 | M8 | 8 | 40 ～ 80 | ||
- | 1 | 9 Days | 10 | M10 | 10 | 49 ～ 100 | ||
- | 1 | 9 Days | 10 | M12 | 12 | 58 ～ 120 | ||
- | 1 | 9 Days | 10 | M16 | 16 | 79 ～ 160 |
Loading...
Example of Use
Basic information
| Classification | Brackets for Cam Follower | Roller Outer Circumference | Not Provided | Axis | Not Provided |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
