Fine U Nuts

Fine U Nuts

Click on this image to zoom in.

Click on this image to zoom in.

  • Volume Discount

MISUMI

MISUMI

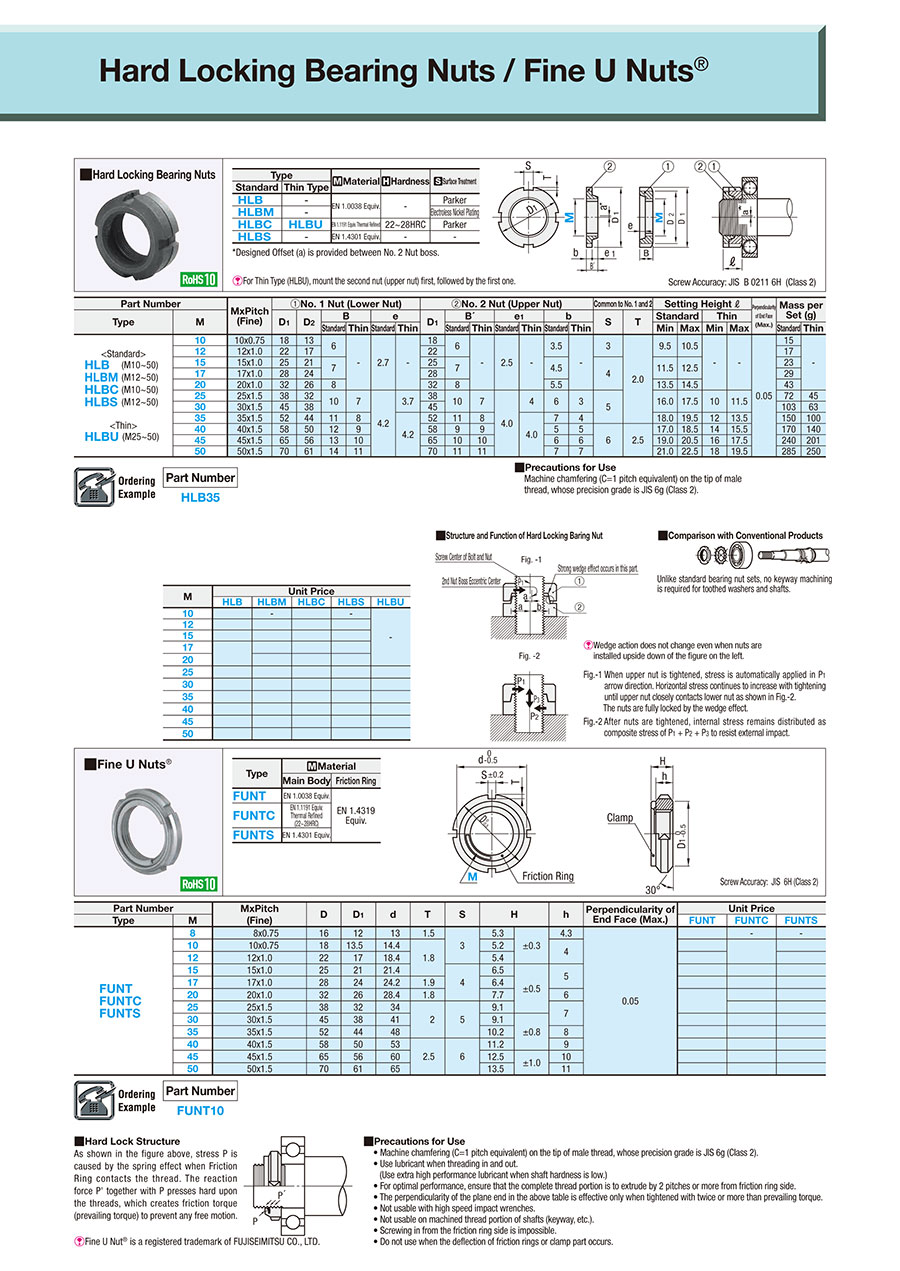

Epochal locknut for bearings, eliminating the need for machining shaft grooves, washers and assembly techniques.

Data sheet

Unit еxample related to this product
Escapement mechanism
Search for оther еxamples

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Fine U Nuts:Related Image

Type Material
Main Body Friction Ring
FUNT EN 1.0038 Equiv. EN 1.4319 Equiv.
FUNTC EN 1.1191 Equiv. Thermal Refined
(22~28HRC)
FUNTS EN 1.4301 Equiv.

Specifications

Part Number
FUNT10
Part NumberMxPitchDD1dTSHhPerpendicularity of End Face (Max.)Unit Price
TypeM(Fine)FUNTFUNTCFUNTS
FUNT
FUNTC
FUNTS		88x0.751612131.535.3±0.34.30.05 --
1010x0.751813.514.41.85.24
1212x1.0221718.45.4
1515x1.0252121.446.5±0.55
1717x1.0282424.21.96.4
2020x1.0322628.41.87.76
2525x1.5383234259.17
3030x1.54538419.1±0.8
3535x1.552444810.28
4040x1.55850532.5611.29
4545x1.565566012.5±1.010
5050x1.570616513.511

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...
