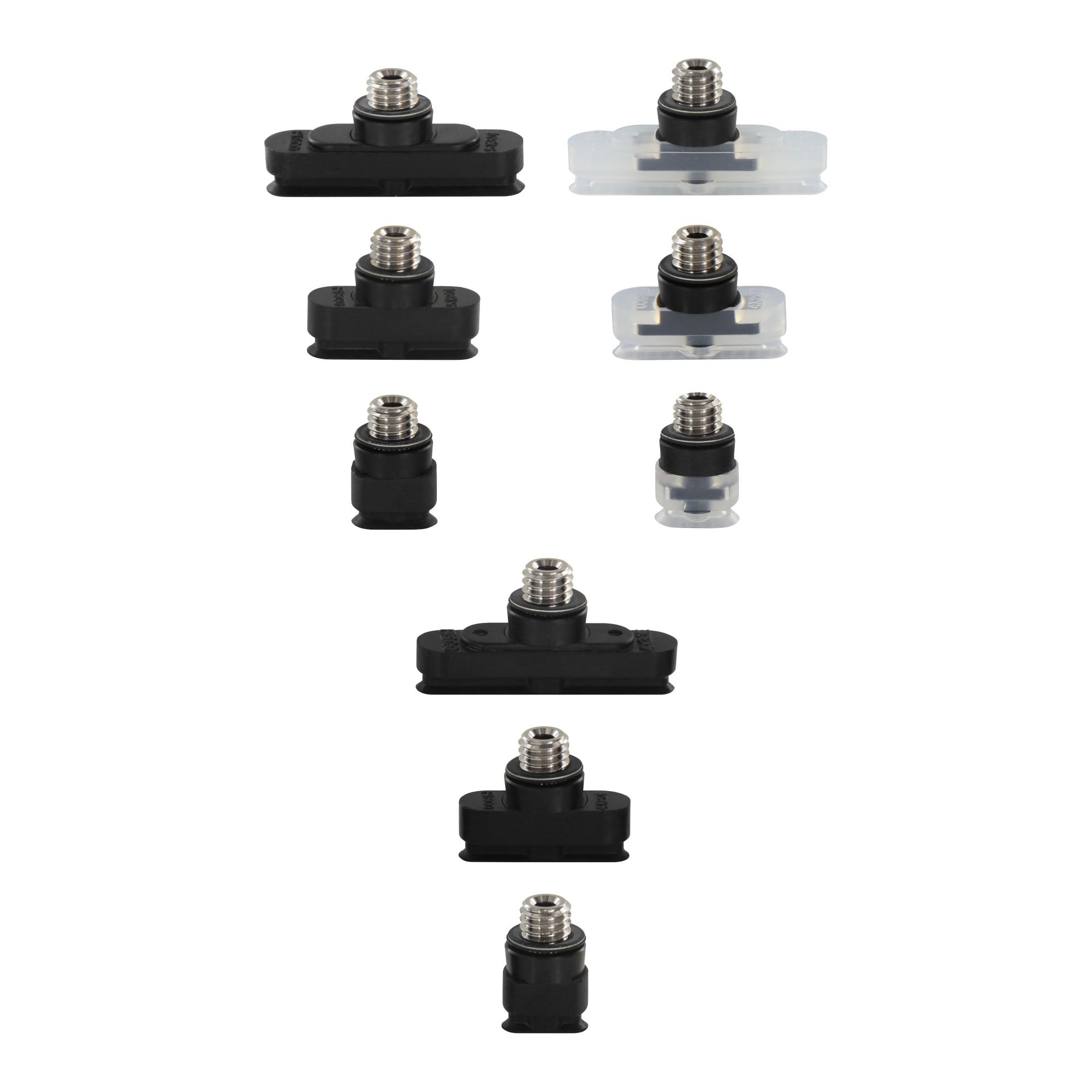

Suction Cups / Oval
- Volume Discount
(i)Remark
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
No,4-10 | No,4-20 | No,4-30 | No,5-10 | No,5-20 | No,5-30 |
 |  |  |  |  |  |
| No,6-10 | No,6-20 | No,6-30 |
 |  |  |
Part Name | [ M ]Material | [ S ]Surface Treatment |
Adaptor | Brass・PBT | Electroless Nickel Plating |
Gasket | SUS304・NBR | N/A |
| Type | [ M ]Material | Pad Shape | [ H ]Hardness | Color |
| VPET | Nitrile Rubber | Oval | Shore A40 ~ 50 | Black |
| VPES | Silicon Rubber | Shore A40 ~ 50 | Milky White |
Specifications
| Part Number |
| VPTS8 |
| Part Number | Applicable Vacuum Fitting MVE□ | Mounting | VPET | VPES | |||
| Unit Price | Volume Discount Rate | Unit Price | Volume Discount Rate | ||||
| Type | No. | 1 ~ 9 pc(s). | 10~30 | 1 ~ 9 pc(s). | 10~30 | ||
| VPET VPES | 4-10 | 4-10 | Embedded | ||||
| 4-20 | 4-20 | ||||||
| 4-30 | 4-30 | ||||||
| 5-10 | 5-10 | ||||||
| 5-20 | 5-20 | ||||||
| 5-30 | 5-30 | ||||||
| 6-10 | 6-10 | ||||||
| 6-20 | 6-20 | ||||||
| 6-30 | 6-30 | ||||||
| Type | VPET, VPTS | VPES, VPTSS | |
| Max. Operating Temp. | 110° | 180° | |
| Min. Operating Temp. | -30° | -50° | |
| Weather Resistance | △ | ○ | |
| Ozone Resistance | △ | ◎ | |
| Acid Resistance | △ | ○ | |
| Alkali Resistance | ○ | ◎ | |
| Oil Resistance | (Gasoline, Light Oil) | ◎ | △ |
| (Benzene, Toluene) | △ | △ | |
| Surface Resistivity | - | - | |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| VPES4-20 |
| VPES4-30 |
| VPES5-10 |
| VPES5-20 |
| VPES5-30 |
| VPES6-10 |
| VPES6-20 |
| VPES6-30 |
| VPET4-10 |
| VPET4-20 |
| VPET4-30 |
| VPET5-10 |
| VPET5-20 |
| VPET5-30 |
| VPET6-10 |
| VPET6-20 |
| VPET6-30 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Rubber Group Material | Usage Environment | Color | Heat Resistance Temperature, Max. Operating Temperature, Min. Operating Temperature (°C) | Width X (mm) | Length Y (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
4.89 € | 1 | 5 Days | 10 | [Silicone Rubber] Silicone Rubber | Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Weather Resistance | Milky White | -50～180 | 4 | 20 | ||
5.13 € | 1 |
Same day
Stock | 10 | [Silicone Rubber] Silicone Rubber | Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Weather Resistance | Milky White | -50～180 | 4 | 30 | ||
4.41 € | 1 | 5 Days | 10 | [Silicone Rubber] Silicone Rubber | Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Weather Resistance | Milky White | -50～180 | 5 | 10 | ||
4.89 € | 1 | 5 Days | 10 | [Silicone Rubber] Silicone Rubber | Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Weather Resistance | Milky White | -50～180 | 5 | 20 | ||
5.13 € | 1 | 5 Days | 10 | [Silicone Rubber] Silicone Rubber | Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Weather Resistance | Milky White | -50～180 | 5 | 30 | ||
4.41 € | 1 | 5 Days | 10 | [Silicone Rubber] Silicone Rubber | Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Weather Resistance | Milky White | -50～180 | 6 | 10 | ||
4.89 € | 1 | 5 Days | 10 | [Silicone Rubber] Silicone Rubber | Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Weather Resistance | Milky White | -50～180 | 6 | 20 | ||
5.13 € | 1 |
Same day
Stock | 10 | [Silicone Rubber] Silicone Rubber | Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Weather Resistance | Milky White | -50～180 | 6 | 30 | ||
3.17 € | 1 | 5 Days | 10 | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | Black | -30～110 | 4 | 10 | ||
3.55 € | 1 | 5 Days | 10 | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | Black | -30～110 | 4 | 20 | ||
3.91 € | 1 |
Same day
Stock | 10 | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | Black | -30～110 | 4 | 30 | ||
3.17 € | 1 | 5 Days | 10 | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | Black | -30～110 | 5 | 10 | ||
3.55 € | 1 | 5 Days | 10 | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | Black | -30～110 | 5 | 20 | ||
3.91 € | 1 | 5 Days | 10 | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | Black | -30～110 | 5 | 30 | ||
3.17 € | 1 | 5 Days | 10 | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | Black | -30～110 | 6 | 10 | ||
3.55 € | 1 | 5 Days | 10 | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | Black | -30～110 | 6 | 20 | ||
3.91 € | 1 |
Same day
Stock | 10 | [Nitrile Rubber] Nitrile Rubber | Standard / Oil Resistance | Black | -30～110 | 6 | 30 |
Loading...
More Information
Example of Use
Basic information
| Pad type | Pad Only | Pad Type | Oval | Mounting Type | Recessed Type |
|---|---|---|---|---|---|
| Material | Rubber Group |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Rubber Group Material
- Nitrile Rubber
- Silicone Rubber
- Nitrile Rubber
-
Usage Environment
- Standard
- Oil Resistance
- Low Temp. Resistance
- Heat Resistance
- Weather Resistance
-
Color
- Black
- Milky White
-
Width X(mm)
- 4
- 5
- 6
-
Length Y(mm)
- 10
- 20
- 30
-
Type
- VPES
- VPET
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Complementary Products
-
Suction Holder, Rigid Type, Upper: Single-Action Type (K Shape), Oval Type/Thin Object Type
MISUMI Standard Price : 14.67 € Shipping Days: 5 Days
