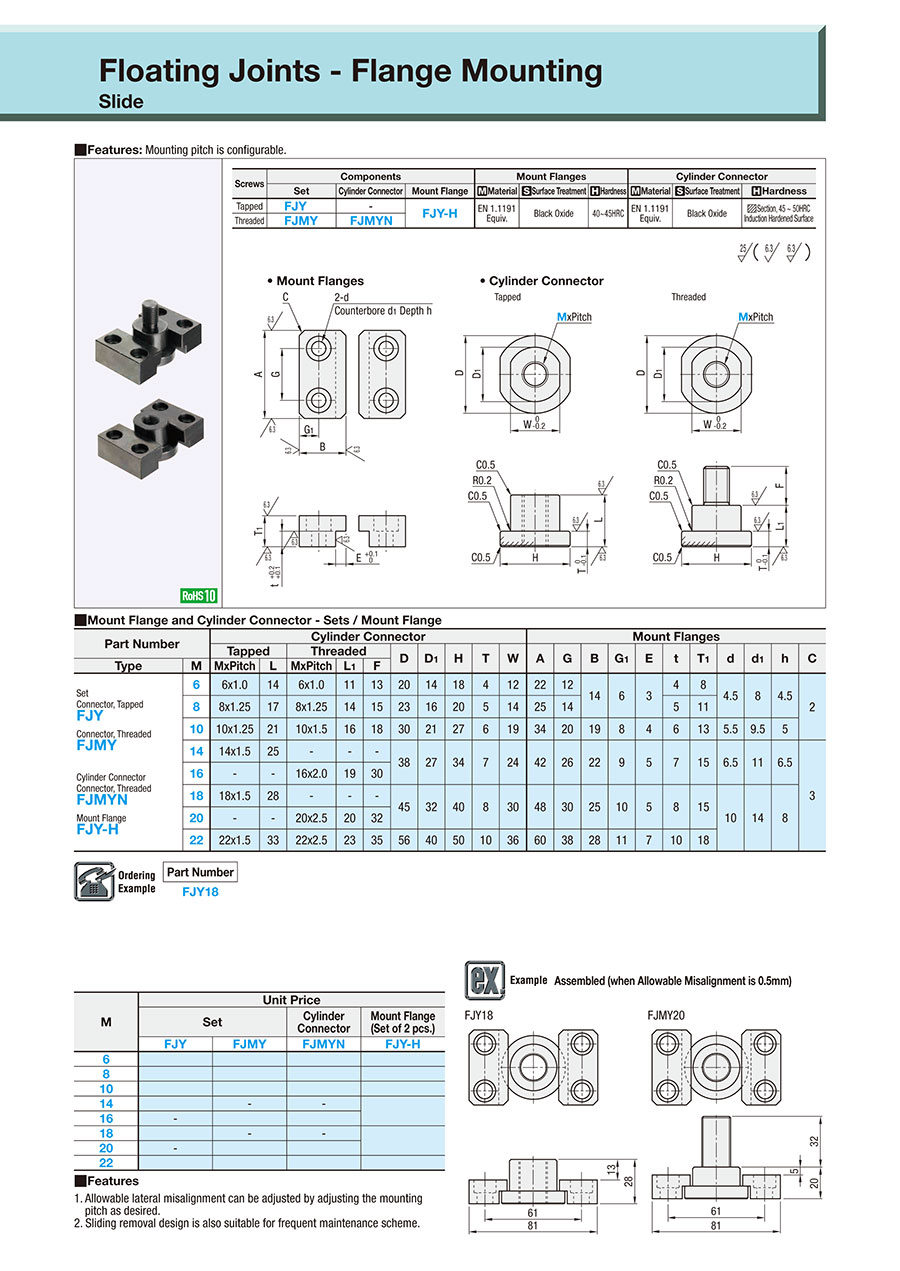

Floating Joints / Slide Type / Set / Connector / Mounting Flange
- Volume Discount
- Stock
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Specifications
| Part Number |
| FJY18 |
| Part Number | Cylinder Connector | Mount Flanges | ||||||||||||||||||||
| Tapped | Threaded | D | D1 | H | T | W | A | G | B | G1 | E | t | T1 | d | d1 | h | C | |||||
| Type | M | MxPitch | L | MxPitch | L1 | F | ||||||||||||||||
| Set Connector, Tapped FJY Connector, Threaded FJMY Cylinder Connector Connector, Threaded FJMYN Mount Flange FJY-H | 6 | 6x1.0 | 14 | 6x1.0 | 11 | 13 | 20 | 14 | 18 | 4 | 12 | 22 | 12 | 14 | 6 | 3 | 4 | 8 | 4.5 | 8 | 4.5 | 2 |
| 8 | 8x1.25 | 17 | 8x1.25 | 14 | 15 | 23 | 16 | 20 | 5 | 14 | 25 | 14 | 5 | 11 | ||||||||
| 10 | 10x1.25 | 21 | 10x1.5 | 16 | 18 | 30 | 21 | 27 | 6 | 19 | 34 | 20 | 19 | 8 | 4 | 6 | 13 | 5.5 | 9.5 | 5 | ||
| 14 | 14x1.5 | 25 | - | - | - | 38 | 27 | 34 | 7 | 24 | 42 | 26 | 22 | 9 | 5 | 7 | 15 | 6.5 | 11 | 6.5 | 3 | |
| 16 | - | - | 16x2.0 | 19 | 30 | |||||||||||||||||
| 18 | 18x1.5 | 28 | - | - | - | 45 | 32 | 40 | 8 | 30 | 48 | 30 | 25 | 10 | 5 | 8 | 15 | 10 | 14 | 8 | ||
| 20 | - | - | 20x2.5 | 20 | 32 | |||||||||||||||||
| 22 | 22x1.5 | 33 | 22x2.5 | 23 | 35 | 56 | 40 | 50 | 10 | 36 | 60 | 38 | 28 | 11 | 7 | 10 | 18 | |||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| FJMY6 |
| FJMY8 |
| FJMY10 |
| FJMY16 |
| FJMY20 |
| FJMY22 |
| FJMYN6 |
| FJMYN8 |
| FJMYN10 |
| FJMYN16 |
| FJMYN20 |
| FJMYN22 |
| FJY6 |
| FJY8 |
| FJY10 |
| FJY14 |
| FJY18 |
| FJY22 |
| FJY-H6 |
| FJY-H8 |
| FJY-H10 |
| FJY-H14 |
| FJY-H16 |
| FJY-H18 |
| FJY-H20 |
| FJY-H22 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Type | Cylinder Used | Connection Type, Cylinder Side | Connecting Thread Nominal M (mm) | Connecting Thread Nominal P (mm) | Connection Type, Work Piece Side | Main Body Material | Stud Material | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
72.35 € | 1 | Available | 5 Days | 10 | Floating Joints | Air Cylinder | Threads | [M3 to M8] M6 | 1 to 1.75 | Hole | [Steel] EN 1.1191 Equiv. | [Steel] EN 1.1191 Equiv. | |
75.79 € | 1 | Available | 5 Days | 10 | Floating Joints | Air Cylinder | Threads | [M3 to M8] M8 | 1 to 1.75 | Hole | [Steel] EN 1.1191 Equiv. | [Steel] EN 1.1191 Equiv. | |
86.61 € | 1 | Available | 5 Days | 10 | Floating Joints | Air Cylinder | Threads | [M10 to M18] M10 | 1 to 1.75 | Hole | [Steel] EN 1.1191 Equiv. | [Steel] EN 1.1191 Equiv. | |
98.27 € | 1 | Available | 5 Days | 10 | Floating Joints | Air Cylinder | Threads | [M10 to M18] M16 | 2 to 2.5 | Hole | [Steel] EN 1.1191 Equiv. | [Steel] EN 1.1191 Equiv. | |
108.72 € | 1 | Available | 5 Days | 10 | Floating Joints | Air Cylinder | Threads | [M20 to M26] M20 | 2 to 2.5 | Hole | [Steel] EN 1.1191 Equiv. | [Steel] EN 1.1191 Equiv. | |
129.47 € | 1 | Available | 5 Days | 10 | Floating Joints | Air Cylinder | Threads | [M20 to M26] M22 | 2 to 2.5 | Hole | [Steel] EN 1.1191 Equiv. | [Steel] EN 1.1191 Equiv. | |
25.30 € | 1 | Available | 5 Days | 10 | Floating Joints | Air Cylinder | Threads | [M3 to M8] M6 | 1 to 1.75 | - | - | [Steel] EN 1.1191 Equiv. | |
28.02 € | 1 | Available | 5 Days | 10 | Floating Joints | Air Cylinder | Threads | [M3 to M8] M8 | 1 to 1.75 | - | - | [Steel] EN 1.1191 Equiv. | |
35.01 € | 1 | Available |
Same day
Stock | 10 | Floating Joints | Air Cylinder | Threads | [M10 to M18] M10 | 1 to 1.75 | - | - | [Steel] EN 1.1191 Equiv. | |
42.75 € | 1 | Available |
Same day
Stock | 10 | Floating Joints | Air Cylinder | Threads | [M10 to M18] M16 | 2 to 2.5 | - | - | [Steel] EN 1.1191 Equiv. | |
47.66 € | 1 | Available | 5 Days | 10 | Floating Joints | Air Cylinder | Threads | [M20 to M26] M20 | 2 to 2.5 | - | - | [Steel] EN 1.1191 Equiv. | |
52.59 € | 1 | Available |
Same day
Stock | 10 | Floating Joints | Air Cylinder | Threads | [M20 to M26] M22 | 2 to 2.5 | - | - | [Steel] EN 1.1191 Equiv. | |
71.61 € | 1 | Available |
Same day
Stock | 10 | Floating Joints | Air Cylinder | Tapped | [M3 to M8] M6 | 1 to 1.75 | Hole | [Steel] EN 1.1191 Equiv. | [Steel] EN 1.1191 Equiv. | |
75.06 € | 1 | Available | 5 Days | 10 | Floating Joints | Air Cylinder | Tapped | [M3 to M8] M8 | 1 to 1.75 | Hole | [Steel] EN 1.1191 Equiv. | [Steel] EN 1.1191 Equiv. | |
84.64 € | 1 | Available | 5 Days | 10 | Floating Joints | Air Cylinder | Tapped | [M10 to M18] M10 | 1 to 1.75 | Hole | [Steel] EN 1.1191 Equiv. | [Steel] EN 1.1191 Equiv. | |
104.05 € | 1 | Available | 5 Days | 10 | Floating Joints | Air Cylinder | Tapped | [M10 to M18] M14 | 1 to 1.75 | Hole | [Steel] EN 1.1191 Equiv. | [Steel] EN 1.1191 Equiv. | |
105.65 € | 1 | Available | 5 Days | 10 | Floating Joints | Air Cylinder | Tapped | [M10 to M18] M18 | 1 to 1.75 | Hole | [Steel] EN 1.1191 Equiv. | [Steel] EN 1.1191 Equiv. | |
128.37 € | 1 | Available | 5 Days | 10 | Floating Joints | Air Cylinder | Tapped | [M20 to M26] M22 | 1 to 1.75 | Hole | [Steel] EN 1.1191 Equiv. | [Steel] EN 1.1191 Equiv. | |
49.38 € | 1 | Available |
Same day
Stock | 10 | Flanged Type | - | - | [M3 to M8] M6 | - | - | - | - | |
50.12 € | 1 | Available |
Same day
Stock | 10 | Flanged Type | - | - | [M3 to M8] M8 | - | - | - | - | |
54.17 € | 1 | Available | 5 Days | 10 | Flanged Type | - | - | [M10 to M18] M10 | - | - | - | - | |
58.60 € | 1 | Available |
Same day
Stock | 10 | Flanged Type | - | - | [M10 to M18] M14 | - | - | - | - | |
58.60 € | 1 | Available |
Same day
Stock | 10 | Flanged Type | - | - | [M10 to M18] M16 | - | - | - | - | |
61.05 € | 1 | Available |
Same day
Stock | 10 | Flanged Type | - | - | [M10 to M18] M18 | - | - | - | - | |
61.05 € | 1 | Available | 5 Days | 10 | Flanged Type | - | - | [M20 to M26] M20 | - | - | - | - | |
77.03 € | 1 | Available |
Same day
Stock | 10 | Flanged Type | - | - | [M20 to M26] M22 | - | - | - | - |
Loading...
More Information
1. Allowable lateral misalignment can be adjusted by adjusting the mounting pitch as desired.
2. Sliding removal design is also suitable for frequent maintenance scheme.
Example of Use
