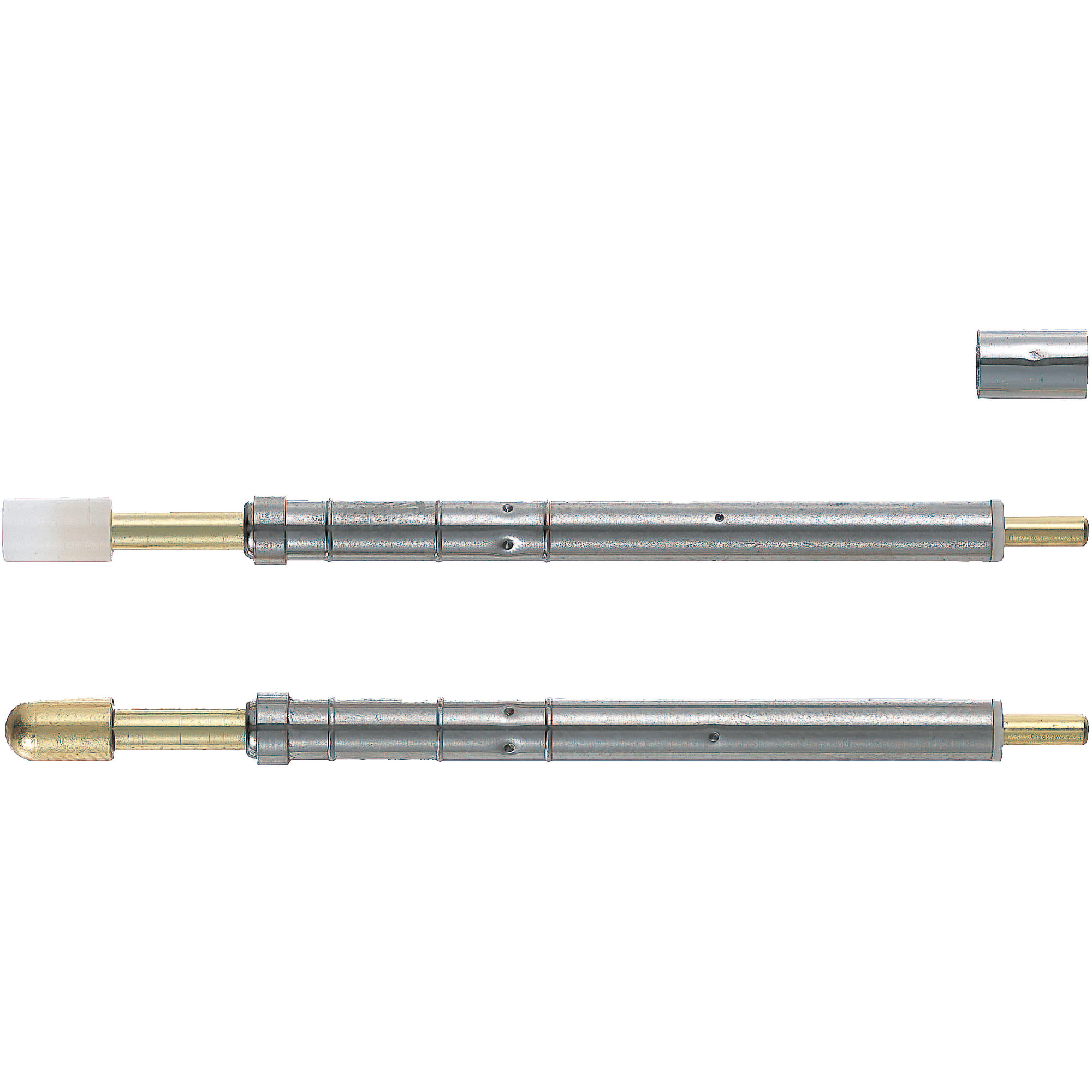

Switch Probes/SNP Series:Related Image
Switch Probes/SNP Series:Related Image

No.PartMaterialSurface Treatment
PlungerBrassGold Plating on Nickel Undercoat
BarrelBrassElectroless Nickel Plating
SpringStainless Steel-
PlungerEN CW101C Equiv.Gold Plating on Nickel Undercoat
SleevePolyacetal-
SpringSpring Steel (JIS-SWP)Gold Plating
PipeEN CW508L Equiv.Gold Plating on Nickel Undercoat
Material: Brass
Surface Treatment: Gold Plating on Nickel Underplating

Accessory: Set Ring

Specifications

Part Number-Tip Shape-Lead Wire Color
SNP30
TNR8
FNP40L
-

B


-
-

BL
B
Part NumberFull StrokeOperating PointSpring PressureMaximum Operating VoltageReplacement Cycle (Reference)Mounting Hole for Press-Fitting Dimension (Reference)Tip Shape B, G, L, S, BP, GP, GP8Tip Shape D, J
Unit PriceVolume Discount RateUnit PriceVolume Discount Rate
Initial2/3 Stroke1 ~ 69 pc(s).70~99100~1501 ~ 69 pc(s).70~99100~150
SNP306.0mm1.0mm from Tip10gf80gf15V100,000 times3.00~3.03mm
* For connected equipment, input impedance must not be less than 10kΩ as a standard, and voltage must not be more than 1.5mA.
For orders larger than indicated quantity, please request a quotation.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...
Part Number
SNP30-B
SNP30-BP
SNP30-D
SNP30-G
SNP30-GP
SNP30-GP8
SNP30-J
SNP30-L
SNP30-S
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSPlunger Tip Shape Plunger O.D.
(Ø)
Plunger Length L1 (Range)
(mm)
Plunger Length
(mm)

34.85 €

1 Available 5 Days 10[Sphere Shape (SR)] Sphere(SR) B3.08.1 to 1211.0

34.85 €

1 Available 5 Days 10[Sphere Shape (SR)] Sphere(SR) BP3.08.1 to 1211.0

39.48 €

1 Available 5 Days 10[Cup] Cup D3.08.1 to 1211.0

34.85 €

1 Available 5 Days 10[Flat] Flat G3.08.1 to 1211.0

34.85 €

1 Available 5 Days 10[Flat] Flat GP3.08.1 to 1211.0

34.85 €

1 Available 5 Days 10[Flat] Flat GP83.012.1 to 1514.0

39.48 €

1 Available 5 Days 10[Cup] Cup J2.08.1 to 1211.0

34.85 €

1 Available 5 Days 10[Flat] Flat L2.08.1 to 1211.0

34.85 €

1 Available 5 Days 10[Flat] Flat S2.08.1 to 1211.0

Loading...

  1. 1

Example of Use

Switch Probes/SNP Series:Related Image

Basic information

Type Switch Probes Full Stroke (Range)(mm) 5 to 6.5 Full Stroke(mm) 6.0
2/3 Stroke Spring Pressure (Range)(gf) 50.1 to 100 Plunger Material Brass Plunger Surface Treatment Nickel Plating Base, Gold Plating
Integrated Probe Type Standard Type / Spring Built-in Receptacle O.D. D (Range)(Ø) 3.01 or More Barrel, Receptacle Material Brass
Barrel, Receptacle O.D.(Ø) 2.95 Barrel, Receptacle Length L2 (Range)(mm) 30.1 or More Properties Standard
Initial Spring Pressure (Range)(gf) 0 to 10 Receptacle Outermost Diameter(Ø) 3.4 Barrel, Receptacle Length(mm) 33.0
Initial Spring Pressure(gf) 32 2/3 Stroke Spring Pressure(gf) 105
