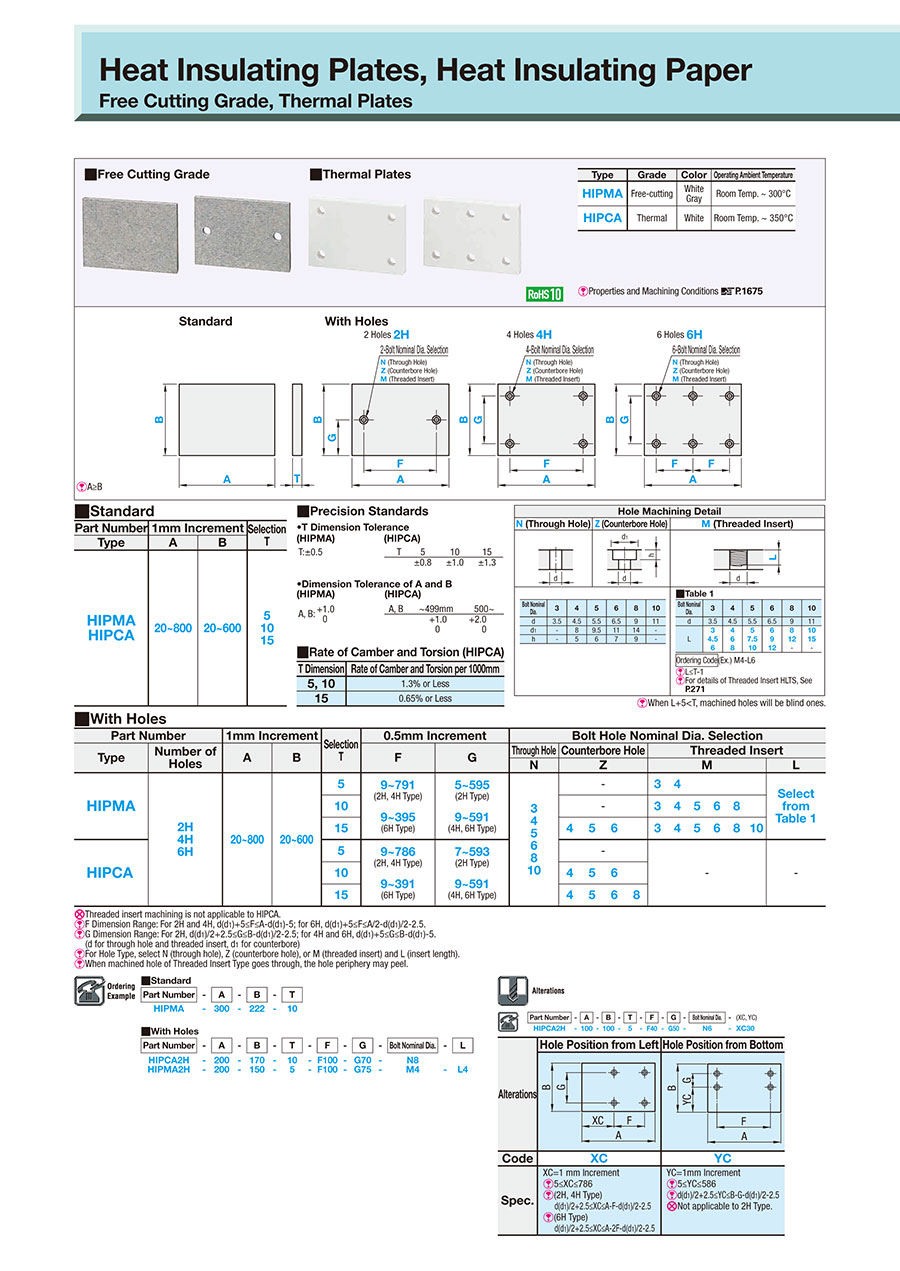

Heat Insulating Plates/Free-Cutting Grade/Thermal Plates

Click on this image to zoom in.

Click on this image to zoom in.

Part Number Once your search is narrowed to one product, the corresponding part number is displayed here.
Heat Insulating Plates/Free-Cutting Grade/Thermal Plates:Related Image
TypeGradeColorOperating Ambient Temperature
HIPMAFree-cuttingWhite GrayRoom Temp. ~ 300°C
HIPCAThermalWhiteRoom Temp. ~ 350°C
Properties and Machining Conditions >>P.1675

Specifications

■Standard
Part Number-A-B-T
HIPMA
-
300
-
222
-
10
■With Holes
Part Number-A-B-T-F-G-Bolt Nominal Dia.-L
HIPCA2H
HIPMA2H
-
-
200
200
-
-
170
150
-
-
10
5
-
-
F100
F100
-
-
G70
G75
-
-
N8
M4

-

L4
Heat Insulating Plates/Free-Cutting Grade/Thermal Plates:Related Image

Alterations

Heat Insulating Plates/Free-Cutting Grade/Thermal Plates:Related Image

Basic information

Shape Plate (Material)

Configure

Reset

Narrow search by specifying spec./dim.

  • Shape

    • Plate (Material)
  • Recommended Operating Temperature(℃)

    • Room Temp. ~ 300
    • Room Temp. ~ 350
  • Application

    • Standard
    • Free-cutting
  • Main Material

    • Calcium Silicate Base Binder
    • Cement
  • Plate Thickness T(mm)

    • 5
    • 10
    • 15
  • Width B(mm)

    [20-600/1mm increments]
  • Length A(mm)

    [20-800/1mm increments]
  • Hole Machined / Not Machined

    • Hole Machined
    • No Hole
  • Type

    • 2H (Two Holes)
    • 4H (Four Holes)
    • 6H (Six Holes)
    • No Drilling Alteration
  • Counterbore Hole (Screw Nominal Dia.) [Z]

    • 4
    • 5
    • 6
    • 8
  • Thread Insert (Screw Nominal Dia.) [M]

    • 3
    • 4
    • 5
    • 6
    • 8
    • 10
  • Through Hole (Screw Nominal Dia.) [N]

    • 3
    • 4
    • 5
    • 6
    • 8
    • 10
  • F(mm)

    [9-791/0.5mm increments]
  • G(mm)

    [5-595/0.5mm increments]
  • Type

    • HIPMA□H
    • HIPMA
    • HIPCA
    • HIPCA□H
  • CAD

    • 2D
    • 3D

Narrow search by specifying lead time
