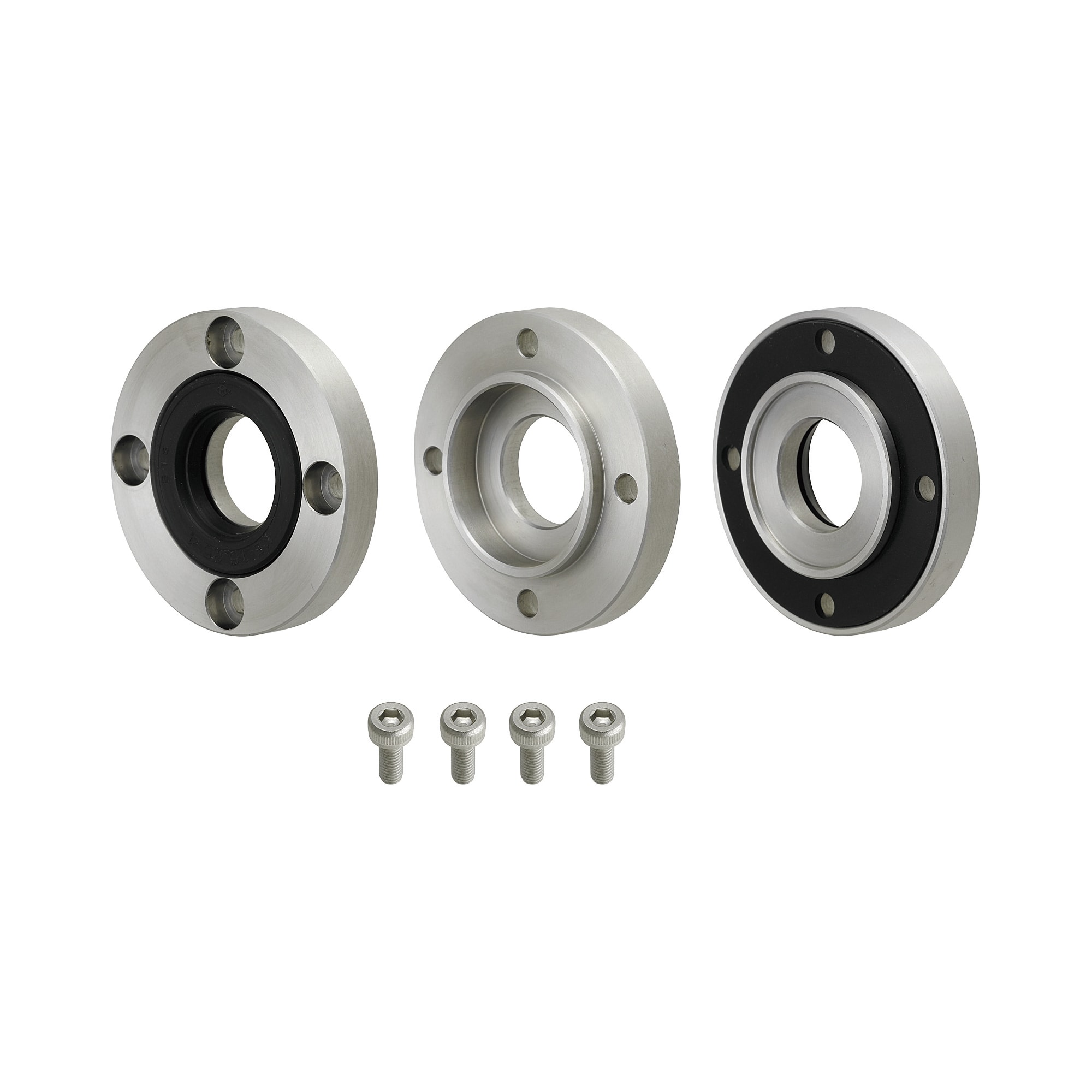

Bearing Covers / Standard / With Seal
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Type | Material | Surface Treatment | Accessory | |||
| Standard | With Seal | Oil Seal Type G / Type D | Gasket | Mounting Screw | ||
| BVFCC | BVFPC | EN 1.1191 Equiv. | Black Oxide | Nitrile Rubber | EN 1.7220 Equiv. (Black Oxide) | |
| BVFCCM | BVFPCM | Electroless Nickel Plating | EN 1.4567 Equiv. | |||
| BVFCCS | BVFPCS | EN 1.4301 Equiv. | - | |||
Specifications
| Part Number |
| BVFCC10 BVFPC20 |

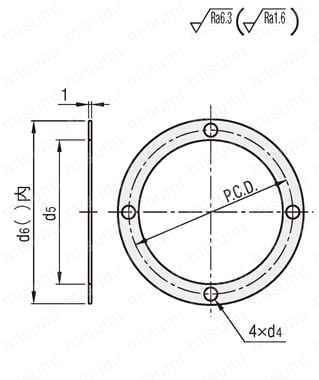

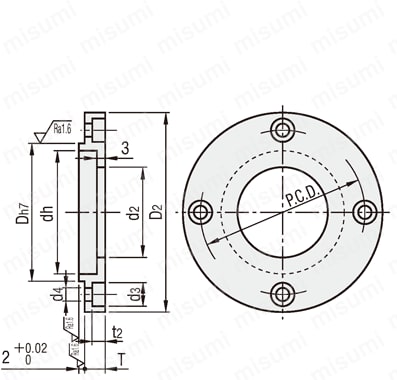

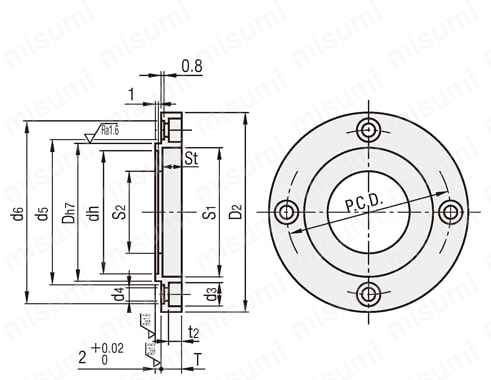

| Part Number | Applicable Bearing | Dh7 | D2 | dh | T | P.C.D. | d2 | d3 | d4 | t2 | With Seal | Mounting Screw (Accessory) | ||||||||
| Type | No. | Tolerance | S1 | S2 | St | Applicable Oil Seal Inner Dia. | Included Oil Seal | Gasket Groove Gasket | ||||||||||||
| d5 | d6 | |||||||||||||||||||
| (Standard) BVFCC BVFCCM BVFCCS (With Seal) BVFPC BVFPCM BVFPCS | 10 | 6000 7000 | 26 | 0 -0.021 | 41 | 23 | 6 | 33 | 16 | 6.5 | 3.5 | 3.1 | 25 | 17 | 4 | 15 | G15254 | 26 | 38.5 (38) | M3x8 |
| 12 | 6001 7001 | 28 | 43 | 25 | 6 | 35 | G15254 | 28 | 40.5 (40) | |||||||||||
| 15 | 6002 7002 | 32 | 0 -0.025 | 48 | 28 | 6 | 40 | 21 | 32 | 22 | 5 | 20 | G20325 | 34 | 45.5 (45) | |||||
| 17 | 6003 7003 | 35 | 48 | 31 | 35 | |||||||||||||||
| 20 | 6004 7004 | 42 | 58 | 36 | 7 | 48 | 26 | 8 | 4.5 | 4.1 | 35 | 27 | 6 | 25 | D25356 | 42 | 54.5 (54) | M4x10 | ||
| 25 | 6005 7005 | 47 | 63 | 41 | 8 | 53 | 31 | 40 | 32 | 7 | 30 | D30407 | 47 | 59.5 (59) | ||||||
| 30 | 6006 7006 | 55 | 0 -0.030 | 78 | 48 | 64 | 41 | 9.5 | 5.5 | 5.1 | 50 | 42 | 6.5 | 40 | D40506.5 | 55 | 74.5 (74) | M5x12 | ||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| BVFCC10 |
| BVFCC12 |
| BVFCC15 |
| BVFCC17 |
| BVFCC20 |
| BVFCC25 |
| BVFCC30 |
| BVFCCM10 |
| BVFCCM12 |
| BVFCCM15 |
| BVFCCM17 |
| BVFCCM20 |
| BVFCCM25 |
| BVFCCM30 |
| BVFCCS10 |
| BVFCCS12 |
| BVFCCS15 |
| BVFCCS17 |
| BVFCCS20 |
| BVFCCS25 |
| BVFCCS30 |
| BVFPC10 |
| BVFPC12 |
| BVFPC15 |
| BVFPC17 |
| BVFPC20 |
| BVFPC25 |
| BVFPC30 |
| BVFPCM10 |
| BVFPCM12 |
| BVFPCM15 |
| BVFPCM17 |
| BVFPCM20 |
| BVFPCM25 |
| BVFPCM30 |
| BVFPCS10 |
| BVFPCS12 |
| BVFPCS15 |
| BVFPCS17 |
| BVFPCS20 |
| BVFPCS25 |
| BVFPCS30 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Material | Surface Treatment | Shape | Bearing Side D Dimension (Ø) | |
|---|---|---|---|---|---|---|---|---|---|
19.39 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Black Oxide | Standard Type | 26 | |
22.71 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Black Oxide | Standard Type | 28 | |
25.88 € | 1 | Available |
Same day
Stock | 10 | EN 1.1191 Equiv. | Black Oxide | Standard Type | 32 | |
29.19 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Black Oxide | Standard Type | 35 | |
32.34 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Black Oxide | Standard Type | 42 | |
34.83 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Black Oxide | Standard Type | 47 | |
35.99 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Black Oxide | Standard Type | 55 | |
21.39 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Electroless Nickel Plating | Standard Type | 26 | |
24.88 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Electroless Nickel Plating | Standard Type | 28 | |
28.52 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Electroless Nickel Plating | Standard Type | 32 | |
32.00 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Electroless Nickel Plating | Standard Type | 35 | |
35.65 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Electroless Nickel Plating | Standard Type | 42 | |
38.30 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Electroless Nickel Plating | Standard Type | 47 | |
39.63 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Electroless Nickel Plating | Standard Type | 55 | |
32.99 € | 1 | Available | 7 Days | 10 | EN 1.4301 Equiv. | - | Standard Type | 26 | |
38.47 € | 1 | Available | 7 Days | 10 | EN 1.4301 Equiv. | - | Standard Type | 28 | |
43.93 € | 1 | Available | 7 Days | 10 | EN 1.4301 Equiv. | - | Standard Type | 32 | |
49.57 € | 1 | Available | 7 Days | 10 | EN 1.4301 Equiv. | - | Standard Type | 35 | |
55.05 € | 1 | Available | 7 Days | 10 | EN 1.4301 Equiv. | - | Standard Type | 42 | |
59.21 € | 1 | Available | 7 Days | 10 | EN 1.4301 Equiv. | - | Standard Type | 47 | |
63.18 € | 1 | Available | 7 Days | 10 | EN 1.4301 Equiv. | - | Standard Type | 55 | |
34.66 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Black Oxide | With Seal Type | 26 | |
41.79 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Black Oxide | With Seal Type | 28 | |
49.25 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Black Oxide | With Seal Type | 32 | |
55.39 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Black Oxide | With Seal Type | 35 | |
61.53 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Black Oxide | With Seal Type | 42 | |
66.00 € | 1 | Available |
Same day
Stock | 10 | EN 1.1191 Equiv. | Black Oxide | With Seal Type | 47 | |
70.47 € | 1 | Available |
Same day
Stock | 10 | EN 1.1191 Equiv. | Black Oxide | With Seal Type | 55 | |
38.15 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Electroless Nickel Plating | With Seal Type | 26 | |
45.93 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Electroless Nickel Plating | With Seal Type | 28 | |
54.05 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Electroless Nickel Plating | With Seal Type | 32 | |
60.86 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Electroless Nickel Plating | With Seal Type | 35 | |
67.49 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Electroless Nickel Plating | With Seal Type | 42 | |
72.64 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Electroless Nickel Plating | With Seal Type | 47 | |
77.61 € | 1 | Available | 7 Days | 10 | EN 1.1191 Equiv. | Electroless Nickel Plating | With Seal Type | 55 | |
48.24 € | 1 | Available | 7 Days | 10 | EN 1.4301 Equiv. | - | With Seal Type | 26 | |
57.54 € | 1 | Available | 7 Days | 10 | EN 1.4301 Equiv. | - | With Seal Type | 28 | |
67.33 € | 1 | Available | 7 Days | 10 | EN 1.4301 Equiv. | - | With Seal Type | 32 | |
75.78 € | 1 | Available | 7 Days | 10 | EN 1.4301 Equiv. | - | With Seal Type | 35 | |
84.07 € | 1 | Available | 7 Days | 10 | EN 1.4301 Equiv. | - | With Seal Type | 42 | |
90.36 € | 1 | Available | 7 Days | 10 | EN 1.4301 Equiv. | - | With Seal Type | 47 | |
97.85 € | 1 | Available | 5 Days | 10 | EN 1.4301 Equiv. | - | With Seal Type | 55 |
Loading...
Example of Use
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Material
- EN 1.1191 Equiv.
- EN 1.4301 Equiv.
-
Surface Treatment
- Black Oxide
- Electroless Nickel Plating
-
Shape
- Standard Type
- With Seal Type
-
Bearing Side D Dimension(Ø)
- 26
- 28
- 32
- 35
- 42
- 47
- 55
-
Type
- BVFCC
- BVFCCM
- BVFCCS
- BVFPC
- BVFPCM
- BVFPCS
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
