Fittings for Hoses / Fitting Sleeve Nut for Hose
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Type | Material |
| HOSHN | Brass |
Specifications
| Part Number |
| HOSJE61 |

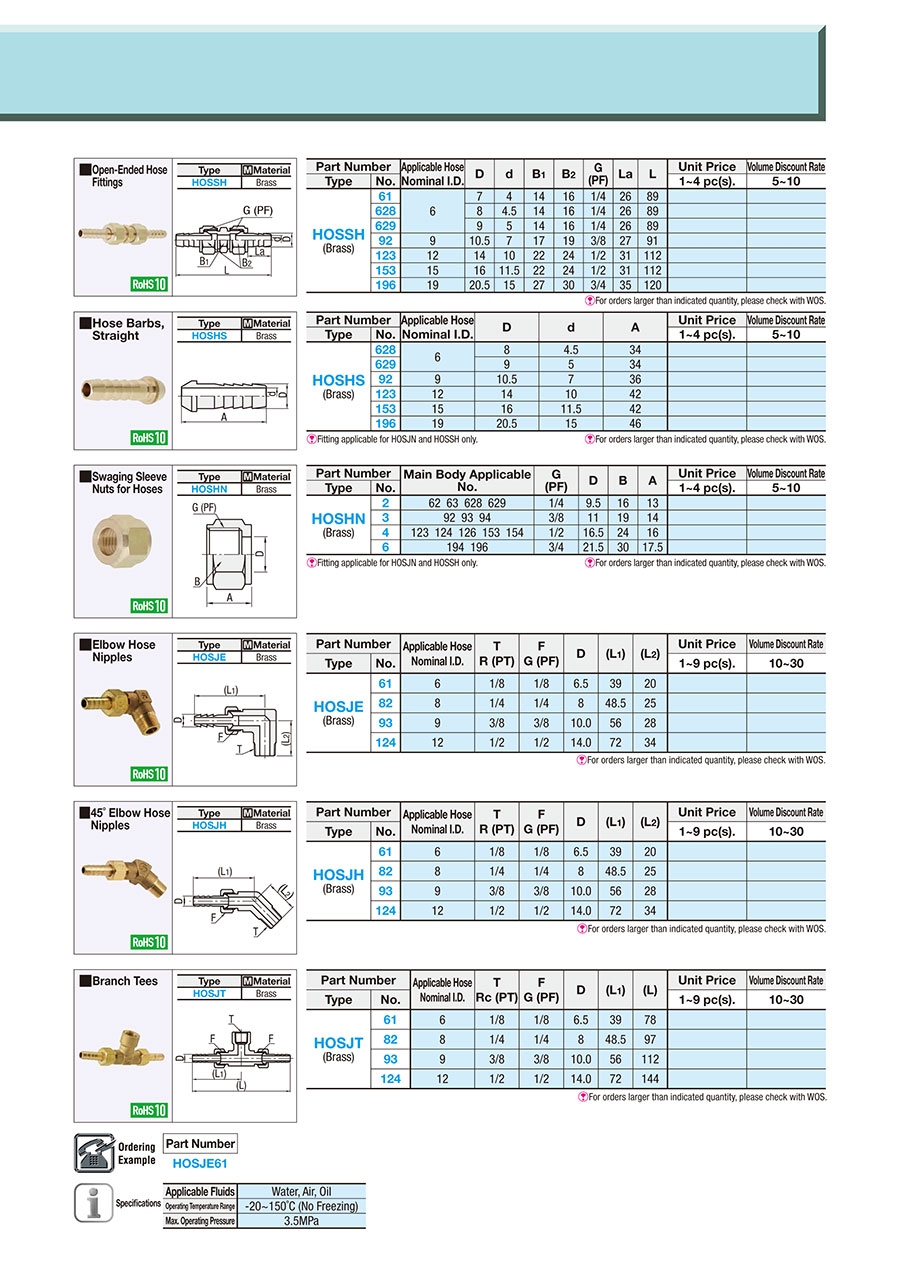

| Part Number | Main Body Applicable No. | G (PF) | D | B | A | Unit Price | Volume Discount Rate | |
| Type | No. | 1~4 pc(s). | 5~10 | |||||
| HOSHN (Brass) | 2 | 62 63 628 629 | 1/4 | 9.5 | 16 | 13 | ||
| 3 | 92 93 94 | 3/8 | 11 | 19 | 14 | |||
| 4 | 123 124 126 153 154 | 1/2 | 16.5 | 24 | 16 | |||
| 6 | 194 196 | 3/4 | 21.5 | 30 | 17.5 | |||
For orders larger than indicated quantity, please check with WOS.
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| HOSHN2 |
| HOSHN3 |
| HOSHN4 |
| HOSHN6 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Hose Connecting Part O.D. (Ø) | Connection Thread Nominal | |
|---|---|---|---|---|---|---|---|
3.91 € | 1 | Available | 5 Days | 10 | 9.5 | 1/4 | |
4.15 € | 1 | Available | 5 Days | 10 | 11 | 3/8 | |
4.64 € | 1 | Available | 5 Days | 10 | 16.5 | 1/2 | |
6.12 € | 1 | Available | 5 Days | 10 | 21.5 | 3/4 |
Loading...
More Information
| Applicable Fluids | Water, Air, Oil |
| Operating Temperature Range | -20~150˚C (No Freezing) |
| Max. Operating Pressure | 3.5MPa |
Basic information
| Type | Nuts | Compatible Hoses | HOSJN, HOSSH | Body Material | Brass |
|---|---|---|---|---|---|
| Connection Thread Type | G(PF) |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
