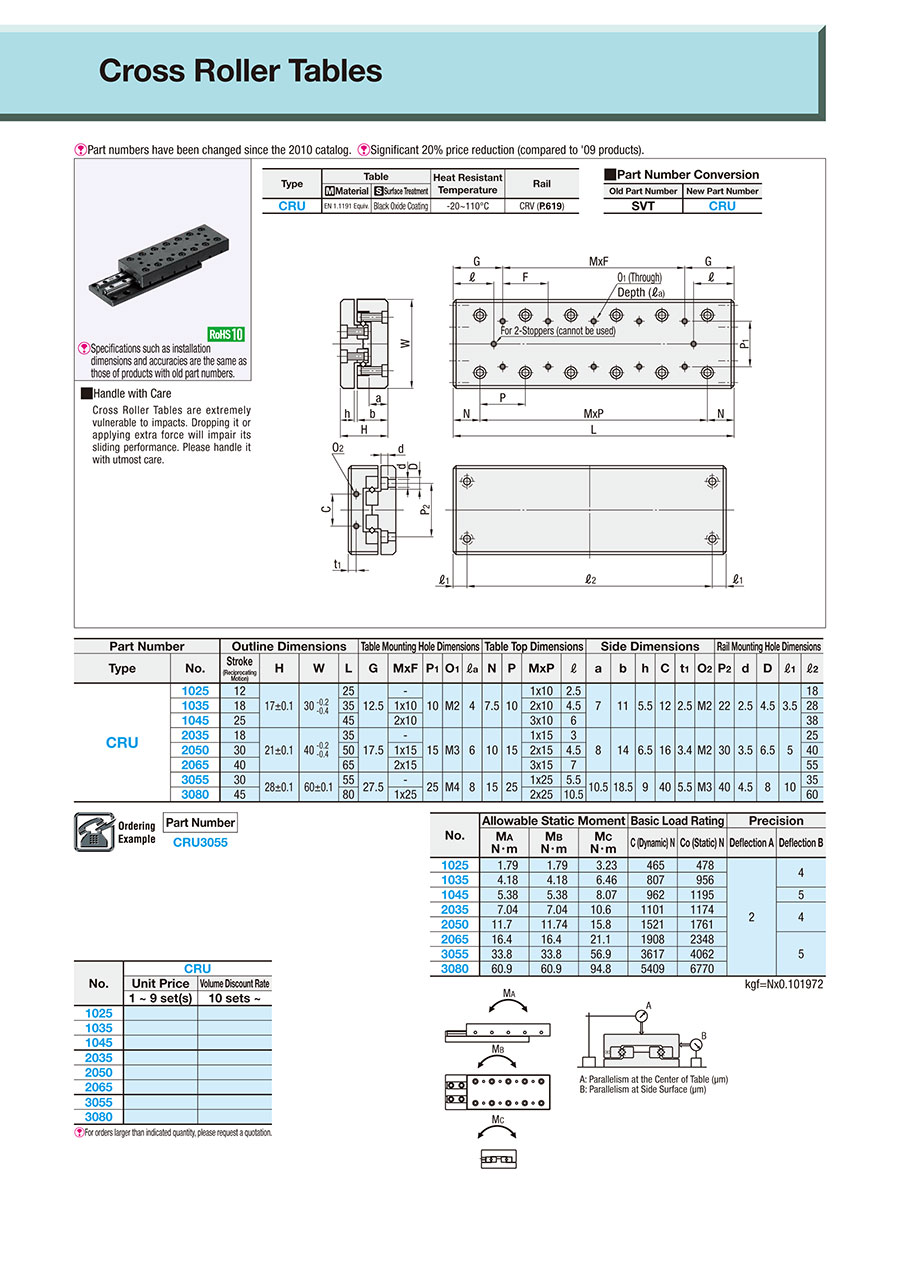

Cross Roller Tables
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Type | Table | Heat Resistant Temperature | Rail | |
| Material | Surface Treatment | |||
| CRU | EN 1.1191 Equiv. | Black Oxide Coating | -20~110°C | CRV (P.619) |
■Part Number Conversion
| Old Part Number | New Part Number |
| SVT | CRU |
Specifications
| Part Number |
| CRU3055 |
| Part Number | Outline Dimensions | Table Mounting Hole Dimensions | Table Top Dimensions | Side Dimensions | Rail Mounting Hole Dimensions | ||||||||||||||||||||
| Type | No. | Stroke | H | W | L | G | MxF | P1 | O1 | ℓa | N | P | MxP | ℓ | a | b | h | C | t1 | O2 | P2 | d | D | ℓ1 | ℓ2 |
| (Reciprocating Motion) | |||||||||||||||||||||||||
| CRU | 1025 | 12 | 17±0.1 | 30-0.2 -0.4 | 25 | 12.5 | - | 10 | M2 | 4 | 7.5 | 10 | 1x10 | 2.5 | 7 | 11 | 5.5 | 12 | 2.5 | M2 | 22 | 2.5 | 4.5 | 3.5 | 18 |
| 1035 | 18 | 35 | 1x10 | 2x10 | 4.5 | 28 | |||||||||||||||||||
| 1045 | 25 | 45 | 2x10 | 3x10 | 6 | 38 | |||||||||||||||||||
| 2035 | 18 | 21±0.1 | 40-0.2 -0.4 | 35 | 17.5 | - | 15 | M3 | 6 | 10 | 15 | 1x15 | 3 | 8 | 14 | 6.5 | 16 | 3.4 | M2 | 30 | 3.5 | 6.5 | 5 | 25 | |
| 2050 | 30 | 50 | 1x15 | 2x15 | 4.5 | 40 | |||||||||||||||||||
| 2065 | 40 | 65 | 2x15 | 3x15 | 7 | 55 | |||||||||||||||||||
| 3055 | 30 | 28±0.1 | 60±0.1 | 55 | 27.5 | - | 25 | M4 | 8 | 15 | 25 | 1x25 | 5.5 | 10.5 | 18.5 | 9 | 40 | 5.5 | M3 | 40 | 4.5 | 8 | 10 | 35 | |
| 3080 | 45 | 80 | 1x25 | 2x25 | 10.5 | 60 | |||||||||||||||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| CRU1025 |
| CRU1035 |
| CRU1045 |
| CRU2035 |
| CRU2050 |
| CRU2065 |
| CRU3055 |
| CRU3080 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | No. (Stroke (Reciprocating Motion)) | |
|---|---|---|---|---|---|---|
216.78 € | 5 | Available | 30 Days | 10 | 1025(12) | |
240.63 € | 1 | Available |
Same day
Stock | 10 | 1035(18) | |
276.82 € | 1 | Available | 10 Days | 10 | 1045(25) | |
183.04 € | 1 | Available |
Same day
Stock | 10 | 2035(18) | |
219.48 € | 1 | Available |
Same day
Stock | 10 | 2050(30) | |
250.78 € | 1 | Available |
Same day
Stock | 10 | 2065(40) | |
161.40 € | 1 | Available |
Same day
Stock | 10 | 3055(30) | |
222.17 € | 1 | Available |
Same day
Stock | 10 | 3080(45) |
Loading...
More Information
Basic information
| Table Material | EN 1.1191 Equiv. |
|---|
Configure
Stock
-
- Show only stock items
Basic Attributes
-
No. (Stroke (Reciprocating Motion))
- 1025(12)
- 1035(18)
- 1045(25)
- 2035(18)
- 2050(30)
- 2065(40)
- 3055(30)
- 3080(45)
-
Type
- CRU
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 10 Days or Less
- 30 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
