8-60 Series / slot width 10 / 60x60mm

8-60 Series / slot width 10 / 60x60mm
  • Volume Discount

(i)Remark

  • Some of the NFSL, HFSL, NFS, NEFS, EFS & CAF products are discontinued (you can find an overview of the affected types here).
    Discontinued from: 1 March, 2021
    Recommended replacement product: All items are replaceable with the HFS range
    Thank you for your understanding.
  • Due to delivery route limitations we will charge an extra fee for some items > 2801 mm. Please find following a list of items that we can deliver without an extra charge.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

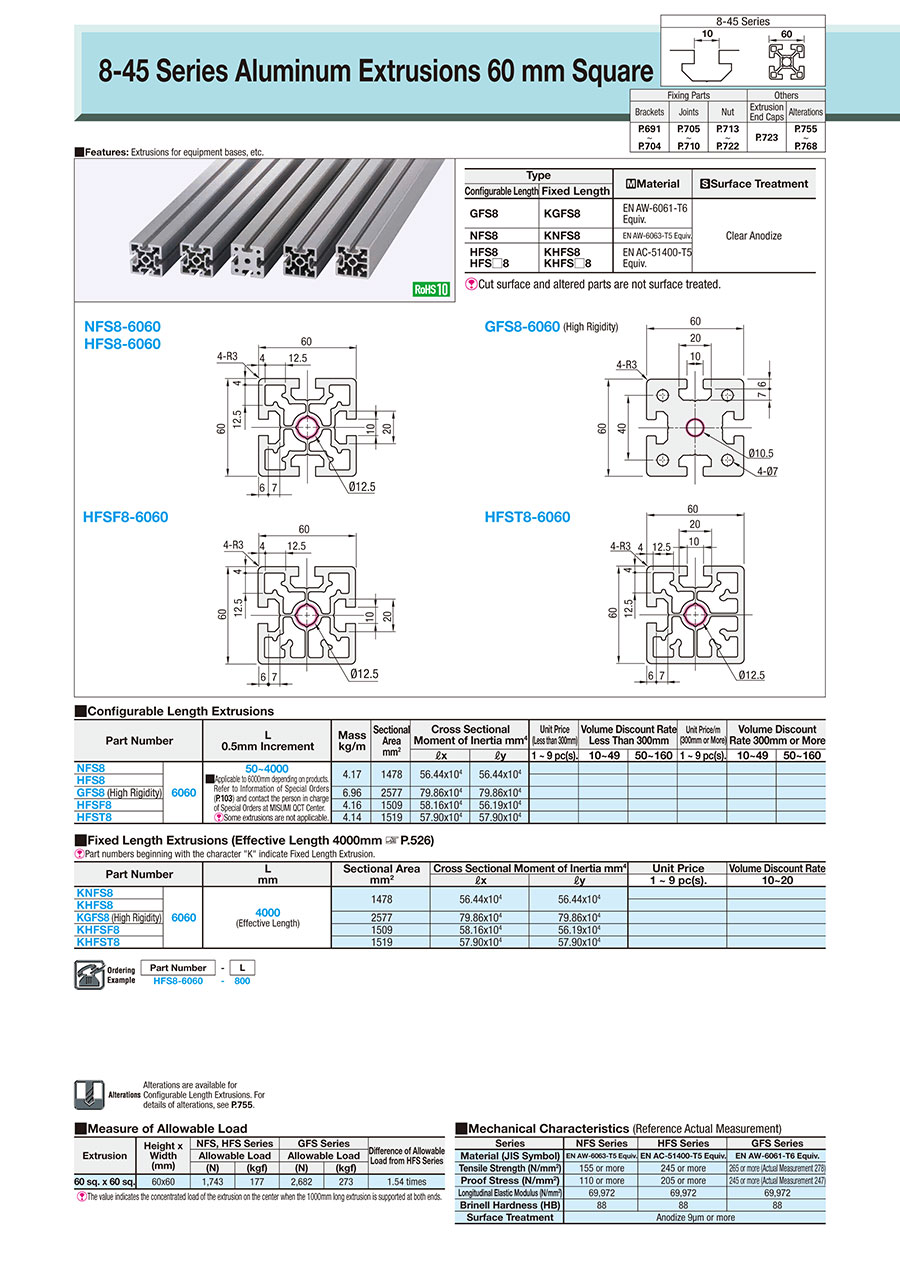

8-60 Series/slot width 10/60x60mm:Related Image

Specifications

Part Number - L
HFS8-6060 - 800
■Configurable Length Extrusions
Type Material Surface Treatment Part Number L
0.5mm Increment
Mass
kg/m
Sectional Area mm2 Cross Sectional Moment of Inertia mm4
ℓx ℓy
HFS EN AC-51400-T5 Equiv. Clear Anodize HFS8-6060 50~4000 4.17 1478 56.44x104 56.44x104
NFS EN AW-6063-T5 Equiv. Clear Anodize NFS8-6060 50~4000 4.17 1478 56.44x104 56.44x104
GFS EN AW-6061-T6 Equiv. Clear Anodize GFS8-6060 50~4000 6.96 2577 79.86x104 79.86x104
Applicable to 6000mm depending on products.
For some extrusions, MISUMI may be unable to accept the order. Refer to Information of Special Orders (P.103) and contact the person in charge of Special Orders at MISUMI QCT Center.

■Fixed Length Extrusions (Effective Length 4000mm)
Part numbers beginning with the character "K" indicate Fixed Length Extrusion.
Type Material Surface Treatment Part Number L
mm
Sectional Area mm2 Cross Sectional Moment of Inertia mm4
ℓx ℓy
HFS EN AC-51400-T5 Equiv. Clear Anodize KHFS8-6060 4000 1478 56.44x104 56.44x104
NFS EN AW-6063-T5 Equiv. Clear Anodize KNFS8-6060 4000 1478 56.44x104 56.44x104
GFS EN AW-6061-T6 Equiv. Clear Anodize KGFS8-6060 4000 2577 79.86x104 79.86x104
"Effective Length 4000mm" represents the extrusion with 4000mm or more effective length. The actual length with extra lengths on ends is more than 4000mm (several tens of mm). Fixed Length Extrusions need to be cut by users thus the exact length cannot be specified.
■ Measure of Allowable Load
Extrusion Height
x
Width (mm)
NFS, HFS Series GFS Series Difference of Allowable Load from HFS Series
Allowable Load Allowable Load
(N) (kgf) (N) (kgf)
60 sq. x 60 sq. 60x60 1,743 177 2,682 273 1.54 times
The value indicates the concentrated load of the extrusion on the center when the 1000mm long extrusion is supported at both ends.

■ Mechanical Characteristics (Reference Actual Measurement)
Series NFS Series HFS Series GFS Series
Material (JIS Symbol) EN AW-6063-T5 Equiv. EN AC-51400-T5 Equiv. A6061SS-T6 Equiv.
Tensile Strength (N/mm2) 155 or more 245 or more 265 or more (Actual Measurement 278)
Proof Stress (N/mm2) 110 or more 205 or more 245 or more (Actual Measurement 247)
Longitudinal Elastic Modulus (N/mm2) 69,972 69,972 69,972
Brinell Hardness (HB) 88 88 88
Surface Treatment Anodize 9µm or more

Alterations

8-60 Series/slot width 10/60x60mm:Related Image

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...
Part Number
GFS8-6060-[50-4000/0.5]
HFS8-6060-[50-4000/0.5]
KGFS8-6060-4000
KHFS8-6060-4000
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSExtrusion Type Material L Dimension Fixed, Specified Overall Length L (Effective Length)
(mm)
Overall Length L
(mm)

-

1 5 Days 10GFS (High Rigidity)EN AW-6061-T6 Equiv.Configuration-50 ~ 4000

-

1 3 Days 10HFS (Standard)EN AC-51400-T5 Equiv.Configuration-50 ~ 4000

592.16 €

1 Available 5 Days 10GFS (High Rigidity)EN AW-6061-T6 Equiv.Stationary4000-

194.00 €

1 Available 3 Days 10HFS (Standard)EN AC-51400-T5 Equiv.Stationary4000-

Loading...

  1. 1

Basic information

Standard Extrusion Size(mm) 60 Extrusion Size 60x60 Extrusion Series 8-45 Series
Extrusion Type Square Number of Extrusion Slots 1 Slot x 1 Slot Surface Treatment Clear Anodize
Number of Grooved Surfaces 4-Side Slot Surface Milled Not Provided Extrusion Size: Width (A)(mm) 60
Extrusion Size: Thickness (T)(mm) 60
