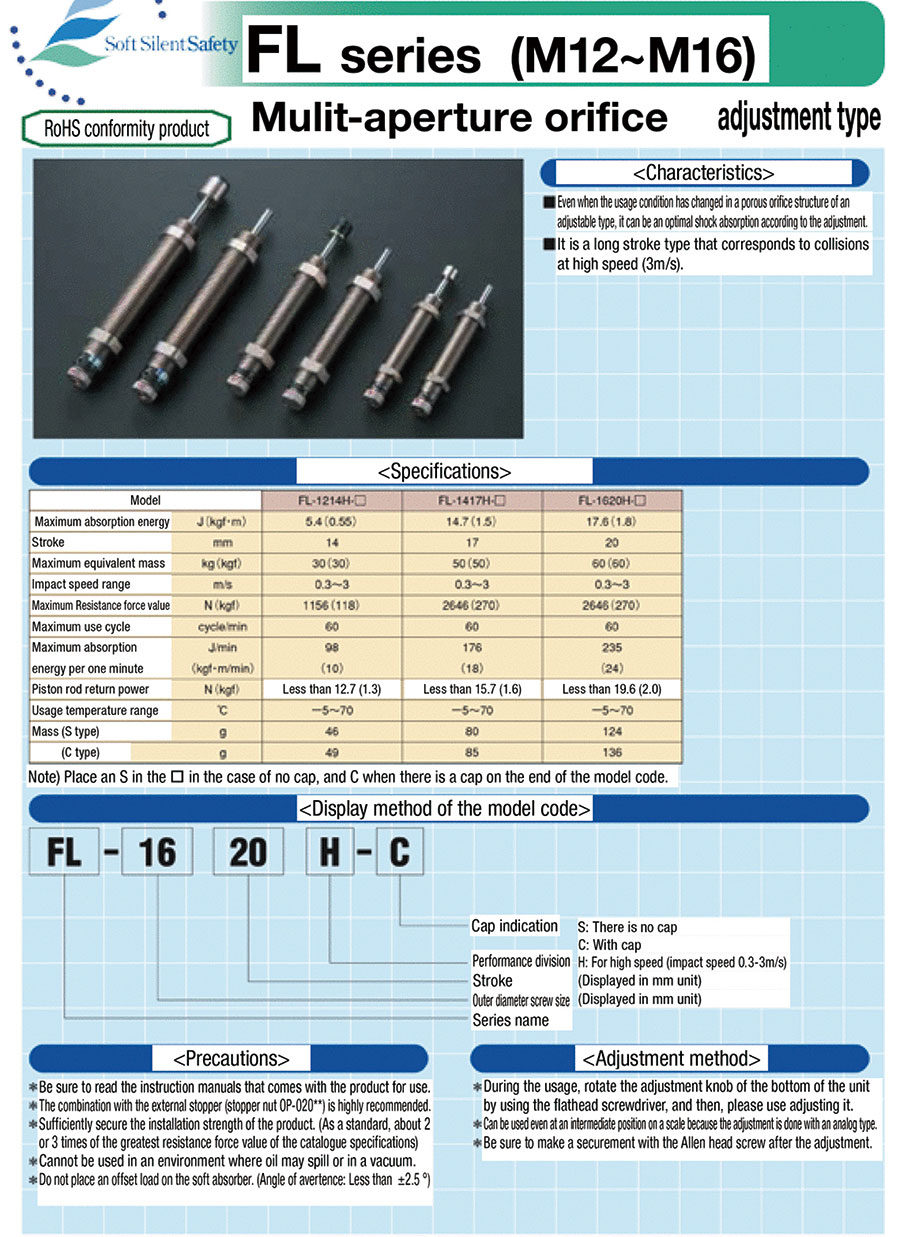

FL Series
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| FL-1214H-C |
| FL-1214H-S |
| FL-1417H-C |
| FL-1417H-S |
| FL-1620H-C |
| FL-1620H-S |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Stroke (mm) | External Thread Diameter | Nominal Mounting Screw [M] | Max. Absorbed Energy (J) | Overall Length (mm) | Maximum Equivalent Mass (kgf) | Max. Drag Value (N) | Piston Rod Return Force (N) (N) | Outer Diameter (Ø) | Maximum absorbed amount of energy per minute (J/min) | Cap | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
58.28 € | 1 | Available |
Same day
Stock | 10 | 14 | M12 | 12 | 5.4 | 92 | 30 | 1156 | 12.7 | 12 | 98 | Available | |
52.63 € | 1 | 5 Days | 10 | 14 | M12 | 12 | 5.4 | 84 | 30 | 1156 | 12.7 | 12 | 98 | NA | ||
73.50 € | 1 | 5 Days | 10 | 17 | M14 | 14 | 14.7 | 115 | 50 | 2646 | 15.7 | 14 | 176 | Available | ||
70.03 € | 1 | 5 Days | 10 | 17 | M14 | 14 | 14.7 | 105 | 50 | 2646 | 15.7 | 14 | 176 | NA | ||
78.17 € | 1 | 5 Days | 10 | 20 | M16 | 16 | 17.6 | 143 | 60 | 2646 | 19.6 | 16 | 235 | Available | ||
74.65 € | 1 | 10 Days | 10 | 20 | M16 | 16 | 17.6 | 128 | 60 | 2646 | 19.6 | 16 | 235 | NA |
Loading...
Basic information
| Main Body/Related Parts | Main Body | Structure | Adjustable Type | Orifice Structure | Multi-orifice |
|---|---|---|---|---|---|
| Usage Environment | Standard | Main Body Material | Steel | Maximum Collision Velocity(m/s) | 3 |
| Minimum Collision Velocity(m/s) | 0.3 | Max. Operating Cycle(cycle/min) | 60 | Allowable Angular Misalignment Degree(deg) | ±2.5 |
| Operating Temperature Range(°C) | -5::70 |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Stroke(mm)
-
Nominal Mounting Screw [M]
-
Max. Absorbed Energy(J)
-
Overall Length(mm)
-
Maximum Equivalent Mass(kgf)
-
Max. Drag Value(N)
-
Piston Rod Return Force (N)(N)
-
Outer Diameter(Ø)
-
Maximum absorbed amount of energy per minute(J/min)
-
Cap
- Available
- NA
-
Type
- FL1214
- FL1417
- FL1620
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 10 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
