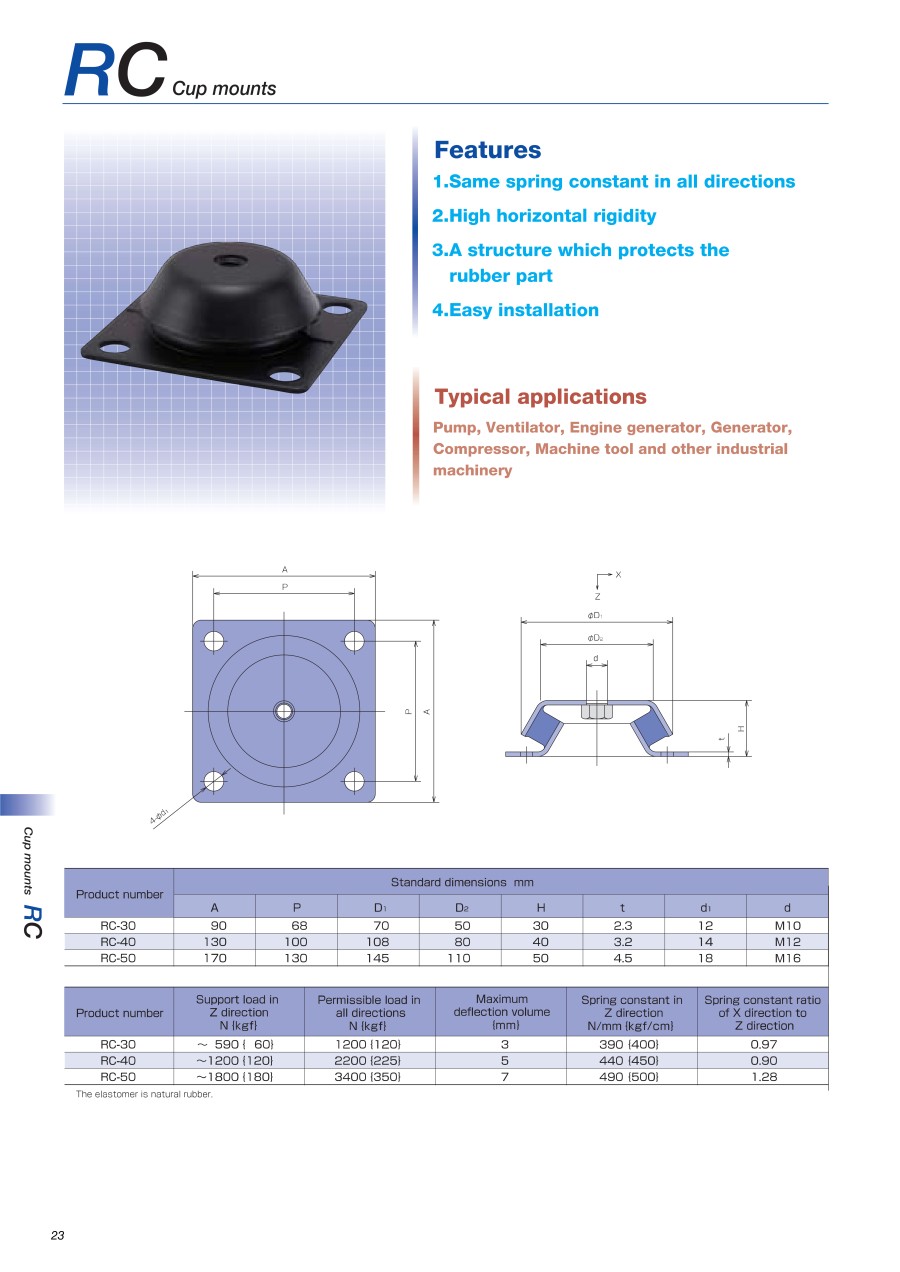

Rubber-metal buffers / bell-shaped / internal thread / through holes / high lateral stability / NR / RC / KURASHIKI KAKO
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| RC-30 |
| RC-40 |
| RC-50 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Max. allowable load (Including max. vertical supports) (N) | Connection screw M | Height H (mm) | Spring Constant (N/mm) | Hardness (Shore A) | Outer Diameter D1 (φ) | External shape A (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
18.68 € | 1 | Available |
Same day
Stock | 10 | 590 | M10 | 30 | 390 | 35 | 70 | 90 | |
36.95 € | 1 | Available | 6 Days | 10 | 1200 | M12 | 40 | 440 | 42 | 108 | 130 | |
52.35 € | 1 | 6 Days | 10 | 1800 | M16 | 50 | 490 | 40 | 145 | 170 |
Loading...
Basic information
| Type | Anti-Vibration Rubber | Application | Cushion / Vibration Damping Proofing / Vibration Isolation | Usage Characteristic | Standard |
|---|---|---|---|---|---|
| Connection Type | Female Screw, Plate | Types of Anti vibration Rubber | Other | Materials of Vibration Proofer | Natural Rubber |
| Color | Black | Ambient Operating Temperature(°C) | Up to 50 |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Max. allowable load (Including max. vertical supports)(N)
-
Connection screw M
- M10
- M12
- M16
-
Height H(mm)
-
Spring Constant(N/mm)
-
Hardness(Shore A)
-
Outer Diameter D1(φ)
-
External shape A(mm)
-
Type
- RC
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- Same day
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
