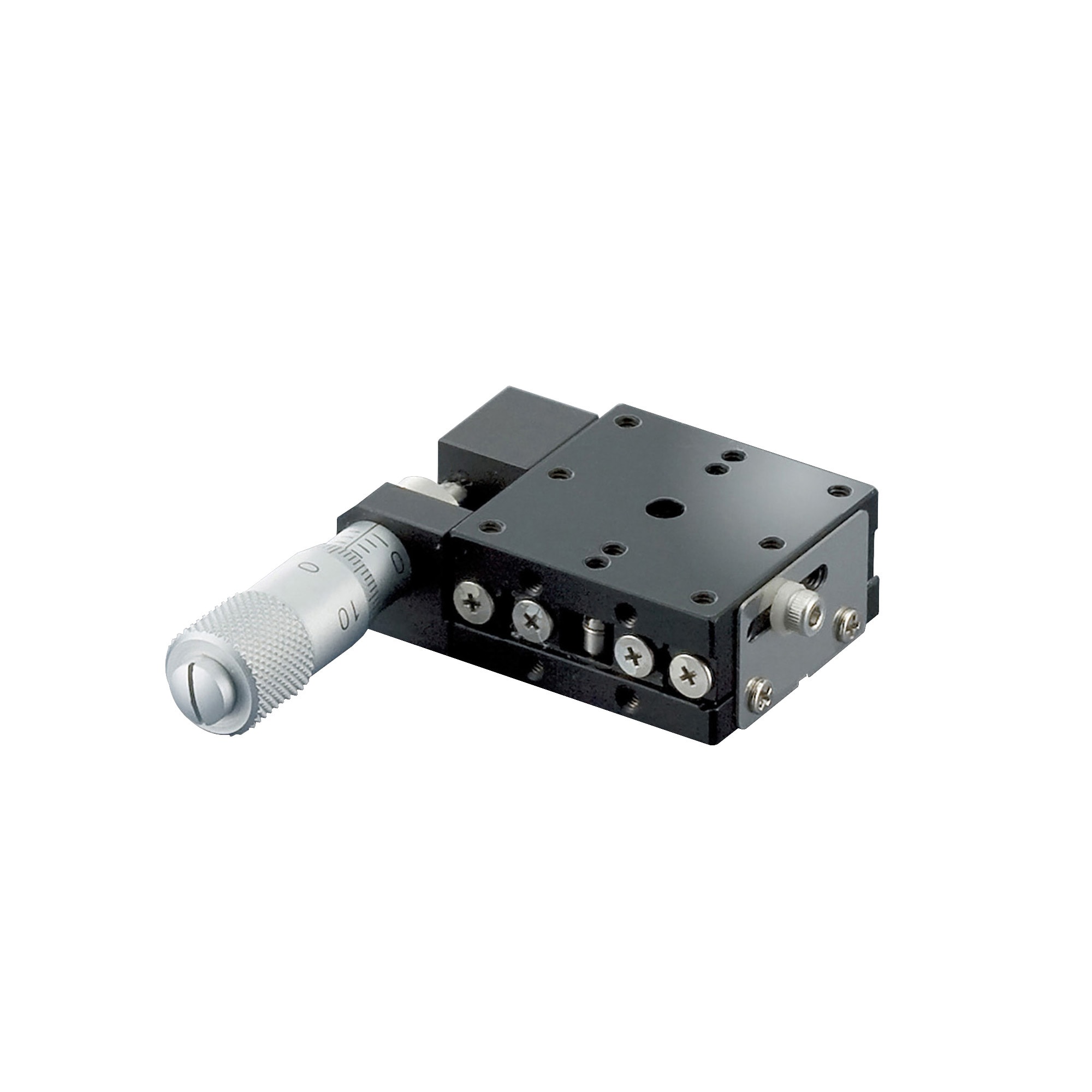

X-Axis Linear Ball Guide (SS) Stage

X-Axis Linear Ball Guide (SS) Stage

Click on this image to zoom in.

Click on this image to zoom in.

  • Volume Discount

SURUGA SEIKI

SURUGA SEIKI

In black. Suitable for applications where light reflections are to be avoided.

[Features]
· Thin structure with the guide and the main body integrated.
· High rigidity and high precision are achieved through the use of stainless steel for the main body and a Gothic arc groove for the guide.
· A variety of sizes, surface treatments, and optional specifications are selectable.
