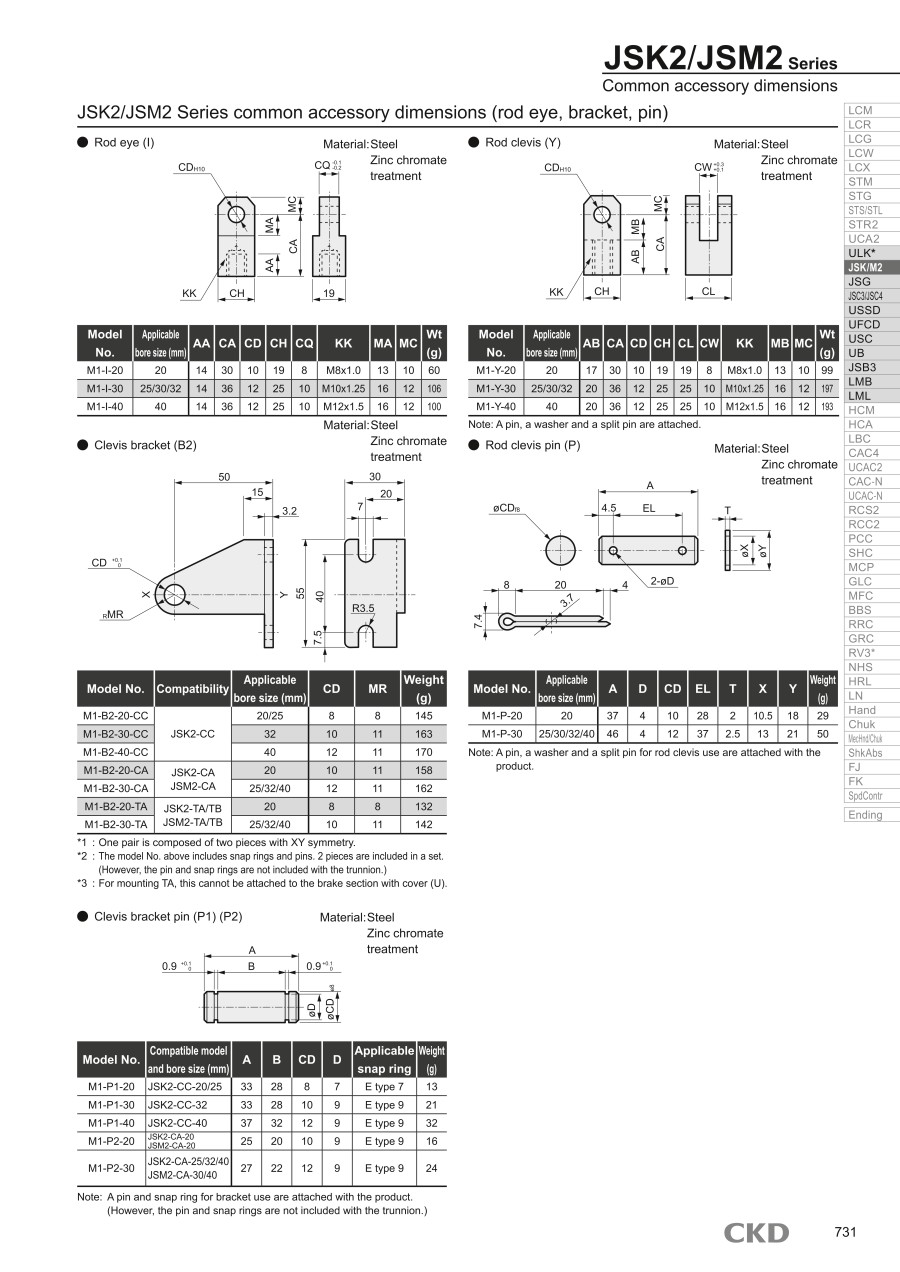

Single Clevis Knuckle Joint for CMK2, CMA2, CKV2, JSK2, JSM2
Double notched knuckle for SCM. Pins and retaining rings are attached.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
M1-I-40
- Product data
- CAD data not available
Basic information
| Type of Support | Single Clevis Knuckle Joints | Mounting Method | Female Thread | Thread Size M(mm) | M12 |
|---|---|---|---|---|---|
| Thread Pitch(mm) | 1.5 | Material | Steel | Accessories Included | With Attachment |
| Applicable Cylinder Series | CMK2.CMA2.CKV2.JSK2.JSM2 | Applicable Tube I.D. (mm) | 40 |
This page is Single Clevis Knuckle Joint for CMK2, CMA2, CKV2, JSK2, JSM2, part number M1-I-40.
You can find the detail information about specifications and dimensions on part number M1-I-40.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
