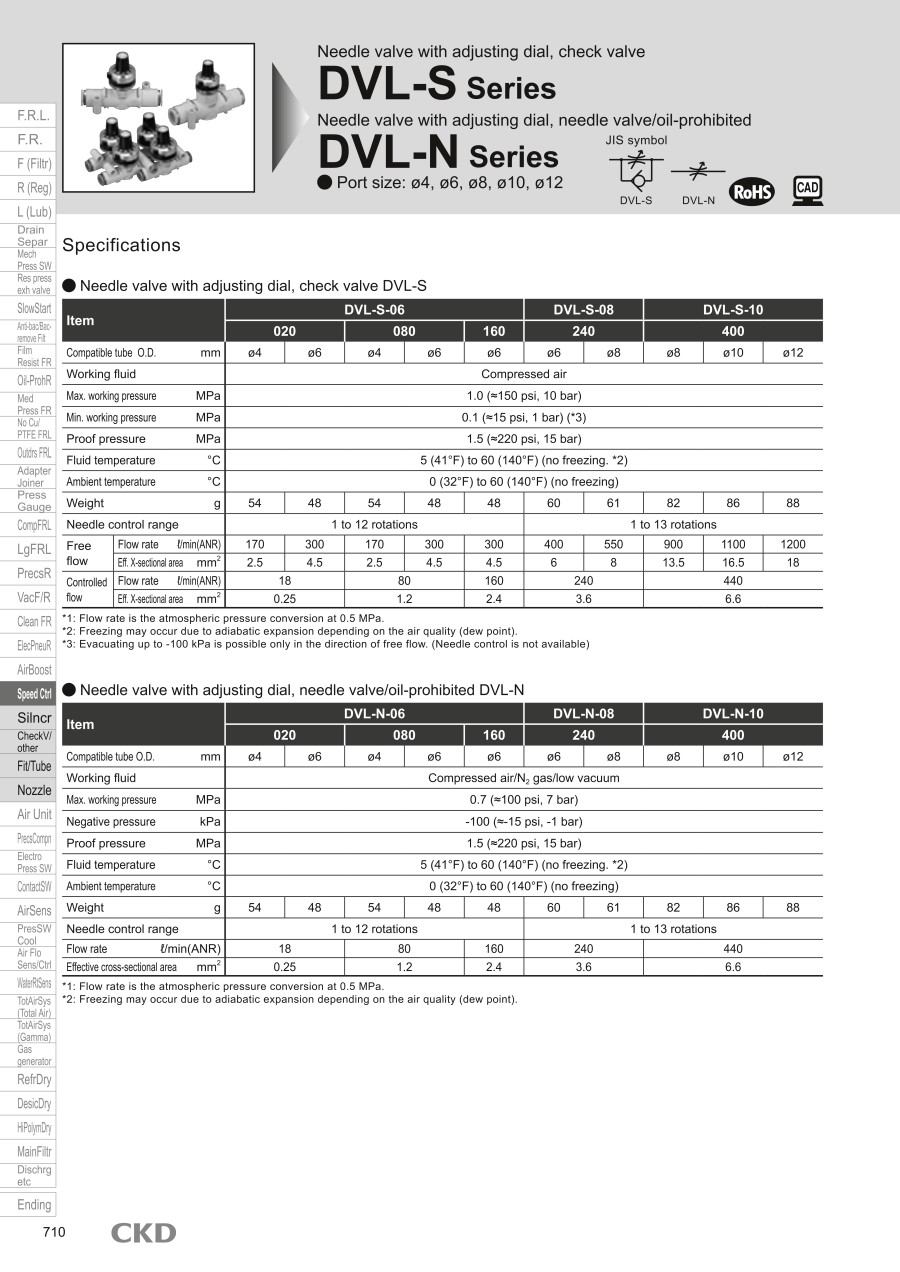

Needle Valve with Adjusting Dial, Check Valve Type DVL-S Series.
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| DVL-S-06-H44-020 |
| DVL-S-06-H66-020 |
| DVL-S-06-H66-080 |
| DVL-S-06-H66-160 |
| DVL-S-08-H66-240 |
| DVL-S-08-H88-240 |
| DVL-S-10-H88-400 |
| DVL-S-10-H1010-400 |
| DVL-S-10-H1212-400 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Max. Flow (l/min) | Applicable Tube Diameter (mm) | Applicable Tube Diameter 2 (mm) | Flow rate type (l/min) | |
|---|---|---|---|---|---|---|---|---|
65.98 € | 1 | Available |
Same day
Stock | 170 | 4 | 4 | 18 | |
77.21 € | 1 | 6 Days | 300 | 6 | 6 | 18 | ||
74.46 € | 1 | 6 Days | 300 | 6 | 6 | 80 | ||
74.46 € | 1 | 6 Days | 300 | 6 | 6 | 160 | ||
76.17 € | 1 | 6 Days | 400 | 6 | 6 | 240 | ||
76.17 € | 1 | 6 Days | 550 | 8 | 8 | 240 | ||
79.61 € | 1 | 6 Days | 900 | 8 | 8 | 440 | ||
82.42 € | 1 | 6 Days | 1100 | 10 | 10 | 440 | ||
79.61 € | 1 | 6 Days | 1200 | 12 | 12 | 440 |
Loading...
Basic information
| Type | Speed Controller | Main Body Shape | Straight | Control Direction | Depends on the Mounting Method |
|---|---|---|---|---|---|
| Joint Type | One-touch coupling one both sides | Main Body Material | Polybutylene Terephthalate | Usage Environment/Application | Standard |
| Knob Type | Dial with Scale | Lock Nut Type | Slide Lock Lever | Operating Temperature Range(℃) | 0::60 |
| Operating Pressure Range(MPa) | 0.1::1 |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Applicable Tube Diameter(mm)
- 4
- 6
- 8
- 10
- 12
-
Applicable Tube Diameter 2(mm)
- 4
- 6
- 8
- 10
- 12
-
Flow rate type(l/min)
- 18
- 80
- 160
- 240
- 440
-
Type
- DVL-S
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- Same day
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
