Vacuum Pad, Bellows Small Type, VPMA, One Touch Fitting Type
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

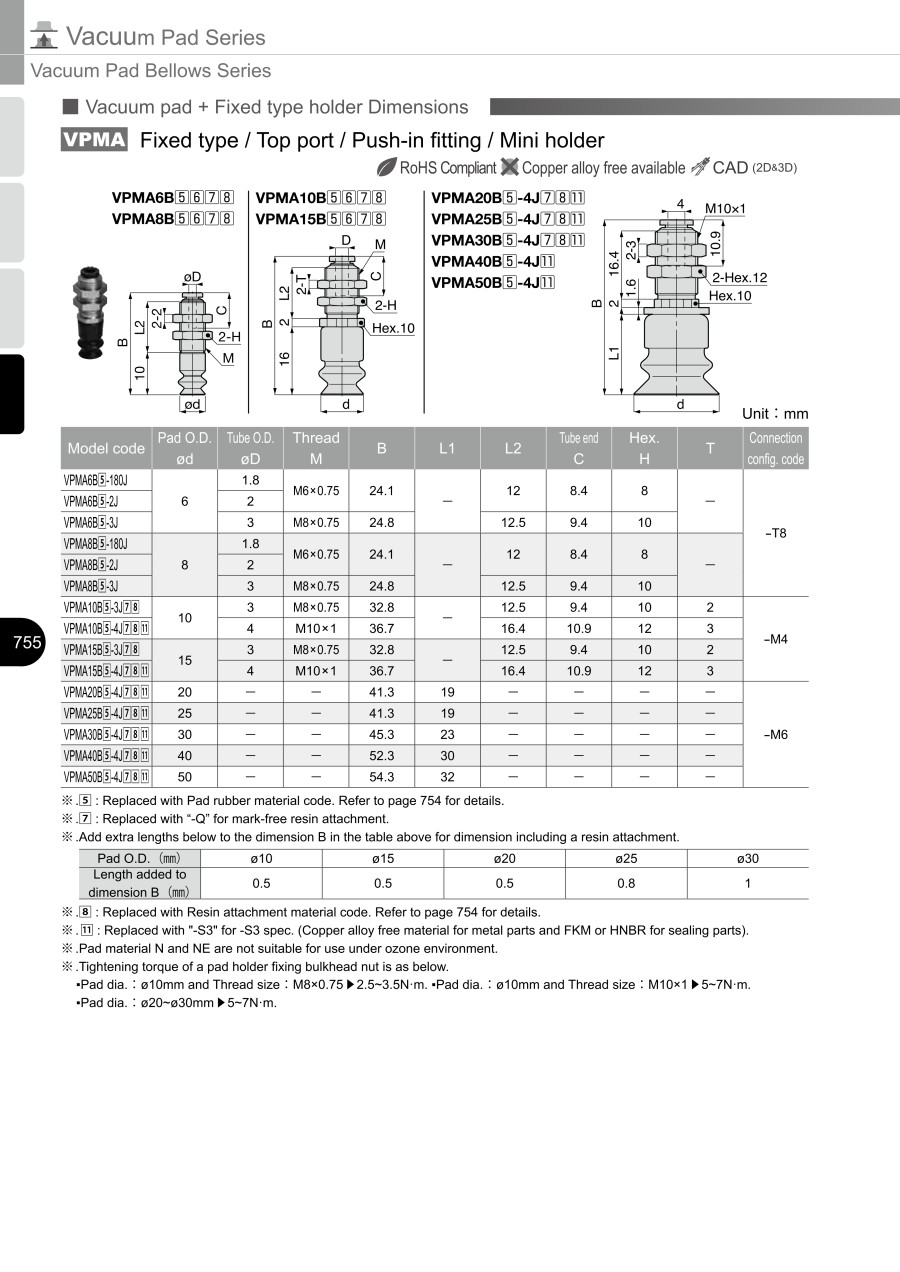

Dimensions
Standard table
| Model code | Pad O.D. ød | Tube O.D. øD | Thread M | B | L1 | L2 | Tube end C | Hex. H | T | Connection config. code |
|---|---|---|---|---|---|---|---|---|---|---|
| VPMA10B5-3J[7][8] | 10 | 3 | M8×0.75 | 32.8 | 16 | 12.5 | 9.4 | 10 | 2 | -M4 |
| VPMA10B5-4J[7][8][11] | 4 | M10×1 | 36.7 | 16.4 | 10.9 | 12 | 3 | |||
| VPMA15B5-3J[7][8] | 15 | 3 | M8×0.75 | 32.8 | 12.5 | 9.4 | 10 | 2 | ||
| VPMA15B5-4J[7][8][11] | 4 | M10×1 | 36.7 | 16.4 | 10.9 | 12 | 3 | |||
| VPMA20B5-4J[7][8][11] | 20 | 4 | M10×1 | 41.3 | 19 | 16.4 | 10.9 | 12 | 3 | -M6 |
| VPMA25B5-4J[7][8][11] | 25 | |||||||||
| VPMA30B5-4J[7][8][11] | 30 | 45.3 | 23 | |||||||
| VPMA40B5-4J[7][8][11] | 40 | 52.3 | 30 | |||||||
| VPMA50B5-4J[7][8][11] | 50 | 54.3 | 32 |
Units: mm
*[5]: Replaced with Pad rubber material code. Refer to the catalog for details.
*[7]: Replaced with "-Q" for mark-free resin attachment.
*Add extra lengths below to the dimension B in the table above for dimension including a resin attachment.
| Pad O.D. (mm) | ø10 | ø15 | ø20 | ø25 | ø30 |
|---|---|---|---|---|---|
| Length added to dimension B (mm) | 0.5 | 0.5 | 0.5 | 0.8 | 1 |
*[8] : Replaced with Resin attachment material code. Refer to page 754 for details.
*[11] : Replaced with "-S3" for -S3 spec. (Copper alloy free material for metal parts and FKM or HNBR for sealing parts).
*Pad material N and NE are not suitable for use under ozone environment.
*Tightening torque of a pad holder fixing bulkhead nut is below.
▪Pad diameter: ø10 mm: Thread size: M8×0.75 ▶ 2.5~3.5 N·m, Thread size: M10×1 ▶ 5~7 N·m.
▪Pad diameter: ø20~ø30 mm ▶ 5~7 N·m.
Part Number
|
|---|
| VPMA10BN-3J |
| VPMA10BN-4J |
| VPMA10BS-3J |
| VPMA10BS-4J |
| VPMA10BS-4J-S3 |
| VPMA10BSE-3J |
| VPMA10BSE-4J |
| VPMA20BN-4J |
| VPMA20BS-4J |
| VPMA20BSE-4J |
| VPMA30BN-4J |
| VPMA30BS-4J |
| VPMA30BSE-4J |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Rubber Group Material | Usage Environment | Color | Outer Diameter D (φ) | Height L1 (mm) | Full length B (mm) | Mount Connection Screw | Vacuum Outlet Tube Outer Diameter (φ) | Metal parts material | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
14.05 € | 1 | 10 Days | [Nitrile Rubber] Nitrile Rubber | Standard | Black | 10 | 16 | 32.7 | M8 | 3 | Standard Specifications | ||
14.05 € | 1 | 5 Days | [Nitrile Rubber] Nitrile Rubber | Standard | Black | 10 | 16 | 36.7 | M10 | 4 | Standard Specifications | ||
15.62 € | 1 | 10 Days | [Silicone Rubber] Silicone Rubber | Standard | [White] White | 10 | 16 | 32.7 | M8 | 3 | Standard Specifications | ||
15.62 € | 1 | 10 Days | [Silicone Rubber] Silicone Rubber | Standard | [White] White | 10 | 16 | 36.7 | M10 | 4 | Standard Specifications | ||
23.51 € | 1 | 11 Days | [Silicone Rubber] Silicone Rubber | Standard | [White] White | 10 | 16 | 36.7 | M10 | 4 | Copper-free specification | ||
15.62 € | 1 | 10 Days | [Silicone Rubber] Silicone Rubber +Carbon | Standard / Static electricity diffusion | Black | 10 | 16 | 32.7 | M8 | 3 | Standard Specifications | ||
15.62 € | 1 | 10 Days | [Silicone Rubber] Silicone Rubber +Carbon | Standard / Static electricity diffusion | Black | 10 | 16 | 36.7 | M10 | 4 | Standard Specifications | ||
15.62 € | 1 | 10 Days | [Nitrile Rubber] Nitrile Rubber | Standard | Black | 20 | 19 | 41.3 | M10 | 4 | Standard Specifications | ||
17.60 € | 1 | 10 Days | [Silicone Rubber] Silicone Rubber | Standard | [White] White | 20 | 19 | 41.3 | M10 | 4 | Standard Specifications | ||
17.60 € | 1 | 10 Days | [Silicone Rubber] Silicone Rubber +Carbon | Standard / Static electricity diffusion | Black | 20 | 19 | 41.3 | M10 | 4 | Standard Specifications | ||
16.03 € | 1 | 10 Days | [Nitrile Rubber] Nitrile Rubber | Standard | Black | 30 | 23 | 45.3 | M10 | 4 | Standard Specifications | ||
17.99 € | 1 | 10 Days | [Silicone Rubber] Silicone Rubber | Standard | [White] White | 30 | 23 | 45.3 | M10 | 4 | Standard Specifications | ||
18.39 € | 1 | 10 Days | [Silicone Rubber] Silicone Rubber +Carbon | Standard / Static electricity diffusion | Black | 30 | 23 | 45.3 | M10 | 4 | Standard Specifications |
Loading...
Basic information
| Pad type | Standard / Holder Set | Pad Type | Bellows | Mounting Method | Pad Screw Fixed |
|---|---|---|---|---|---|
| Material | Rubber-Based | Mounting Bracket | Fixed Type | Vacuum Outlet Direction | Top |
| Fall Prevention Valve | None | Direct Attached Filter | None |
Configure
Basic Attributes
-
Rubber Group Material
- Nitrile Rubber
- Silicone Rubber
- Nitrile Rubber
-
Usage Environment
- Standard
- Static electricity diffusion
-
Color
- Black
- White
-
Outer Diameter D(φ)
-
Height L1(mm)
-
Full length B(mm)
-
Mount Connection Screw
- M8
- M10
-
Vacuum Outlet Tube Outer Diameter(φ)
- 3
- 4
-
Metal parts material
- Copper-free specification
- Standard Specifications
-
Type
- VPMA
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
- 10 Days or Less
- 11 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
