Vacuum Pad Oval Type VPA Barb Fitting Type
[Features]
· Optimal for conveying long items such as circuit boards and semiconductors.
· A wide range of pad sizes, pad materials, and holder shapes are available.
· Downsizes holders (A and B types) for existing vacuum pads, saving space.
· The pad section can be changed without removing the holder from the equipment, as is conventional.
· Also compatible with the optional fall prevention valve and pad direct attachment type filter.
· Pad holders have been added for applications requiring copper-based metal not to be used and as part of efforts to reduce ozone concentrations.
· Copper-based metal is not used for metal parts. HNBR is used for sealing rubber material.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

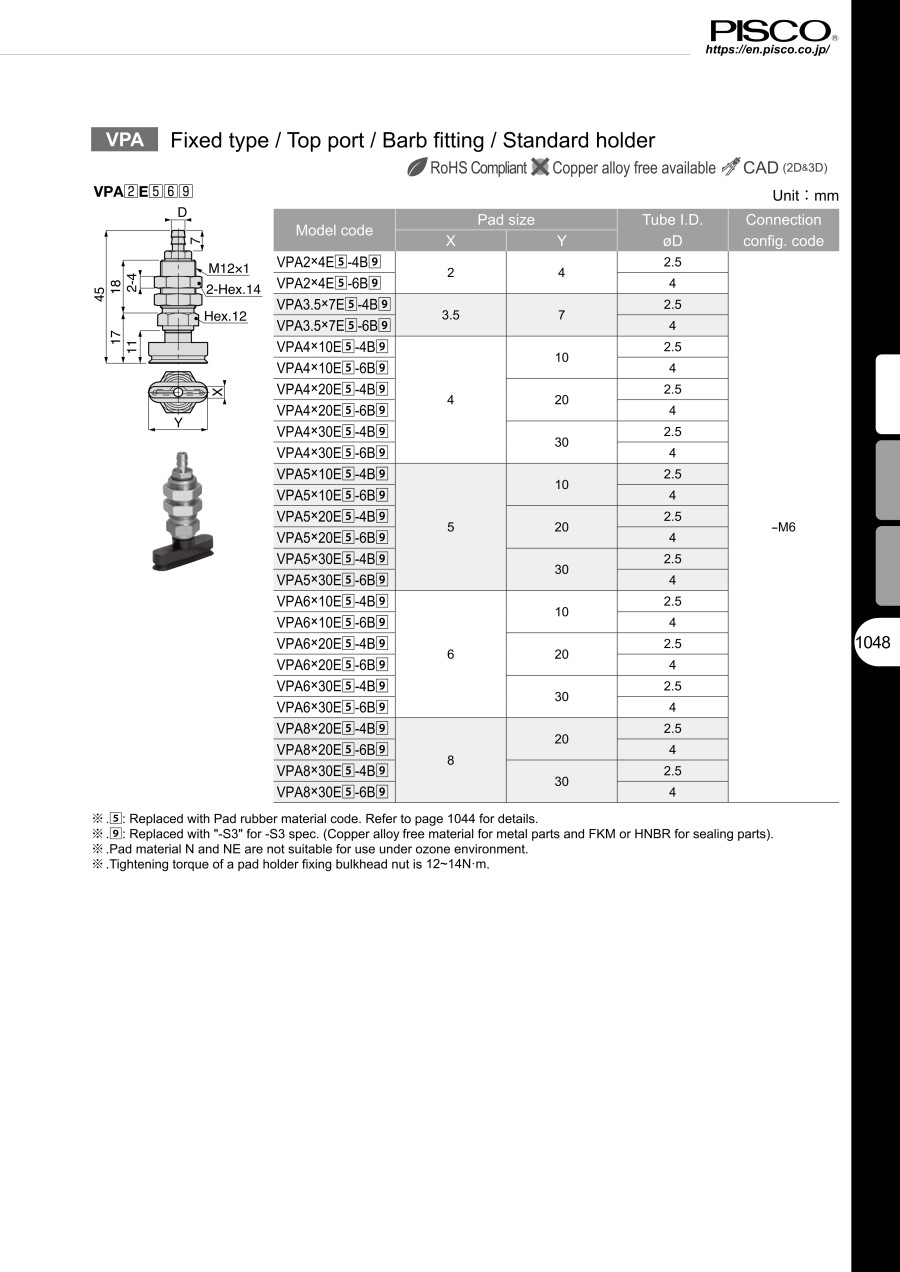

Dimensions
Standard table
| Model code | Pad size X | Pad size Y | Tube I.D. øD | Connection config. code |
|---|---|---|---|---|
| VPA4×10E[5]-6B[9] | 4 | 10 | 4 | -M6 |
| VPA4×20E[5]-6B[9] | 20 | |||
| VPA4×30E[5]-6B[9] | 30 | |||
| VPA5×10E[5]-6B[9] | 5 | 10 | ||
| VPA5×20E[5]-6B[9] | 20 | |||
| VPA5×30E[5]-6B[9] | 30 | |||
| VPA6×10E[5]-6B[9] | 6 | 10 | ||
| VPA6×20E[5]-6B[9] | 20 | |||
| VPA6×30E[5]-6B[9] | 30 | |||
| VPA8×20E[5]-6B[9] | 8 | 20 | ||
| VPA8×30E[5]-6B[9] | 30 |
Units: mm
*[5]: Replaced with Pad rubber material code. Refer to the catalog for details.
*[9]: Replaced with "-S3" for -S3 spec. (Copper alloy free material for metal parts and FKM or HNBR for sealing parts).
*Pad material N and NE are not suitable for use under ozone environment.
*Tightening torque of a pad holder fixing bulkhead nut is 12~14 N·m.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Rubber Group Material | Color | Width X | Length Y | |
|---|---|---|---|---|---|---|---|---|
14.11 € | 1 | 10 Days | [Nitrile Rubber] Nitrile Rubber | Black | 4 | 10 | ||
16.09 € | 1 | 10 Days | [Silicone Rubber] Silicone Rubber | [White] White | 4 | 10 | ||
14.52 € | 1 | 10 Days | [Nitrile Rubber] Nitrile Rubber | Black | 4 | 20 | ||
16.48 € | 1 | 10 Days | [Silicone Rubber] Silicone Rubber | [White] White | 4 | 20 | ||
14.91 € | 1 | 10 Days | [Nitrile Rubber] Nitrile Rubber | Black | 4 | 30 | ||
16.88 € | 1 | 10 Days | [Silicone Rubber] Silicone Rubber | [White] White | 4 | 30 | ||
14.11 € | 1 | 10 Days | [Nitrile Rubber] Nitrile Rubber | Black | 5 | 10 | ||
16.09 € | 1 | 10 Days | [Silicone Rubber] Silicone Rubber | [White] White | 5 | 10 | ||
14.52 € | 1 | 10 Days | [Nitrile Rubber] Nitrile Rubber | Black | 5 | 20 | ||
16.48 € | 1 | 10 Days | [Silicone Rubber] Silicone Rubber | [White] White | 5 | 20 | ||
14.91 € | 1 | 10 Days | [Nitrile Rubber] Nitrile Rubber | Black | 5 | 30 | ||
16.88 € | 1 | 10 Days | [Silicone Rubber] Silicone Rubber | [White] White | 5 | 30 | ||
14.11 € | 1 | 10 Days | [Nitrile Rubber] Nitrile Rubber | Black | 6 | 10 | ||
16.09 € | 1 | 10 Days | [Silicone Rubber] Silicone Rubber | [White] White | 6 | 10 | ||
14.52 € | 1 | 10 Days | [Nitrile Rubber] Nitrile Rubber | Black | 6 | 20 | ||
16.48 € | 1 | 10 Days | [Silicone Rubber] Silicone Rubber | [White] White | 6 | 20 | ||
14.91 € | 1 | 10 Days | [Nitrile Rubber] Nitrile Rubber | Black | 6 | 30 | ||
16.88 € | 1 | 10 Days | [Silicone Rubber] Silicone Rubber | [White] White | 6 | 30 | ||
14.52 € | 1 | 10 Days | [Nitrile Rubber] Nitrile Rubber | Black | 8 | 20 | ||
16.48 € | 1 | 10 Days | [Silicone Rubber] Silicone Rubber | [White] White | 8 | 20 | ||
14.91 € | 1 | 10 Days | [Nitrile Rubber] Nitrile Rubber | Black | 8 | 30 | ||
16.88 € | 1 | 10 Days | [Silicone Rubber] Silicone Rubber | [White] White | 8 | 30 |
Loading...
Basic information
| Pad type | Standard / Holder Set | Pad Type | Oval | Mounting Method | Pad Screw Fixed |
|---|---|---|---|---|---|
| Material | Rubber-Based | Usage Environment | Standard | Height L1(mm) | 7 |
| Mounting Bracket | Fixed Type | Full length B(mm) | 45 | Vacuum Outlet Direction | Top |
| Mount Connection Screw | M12 | Vacuum Outlet Tube Outer Diameter(φ) | 6 | Fall Prevention Valve | None |
| Direct Attached Filter | None | Metal parts material | Standard Specifications |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
