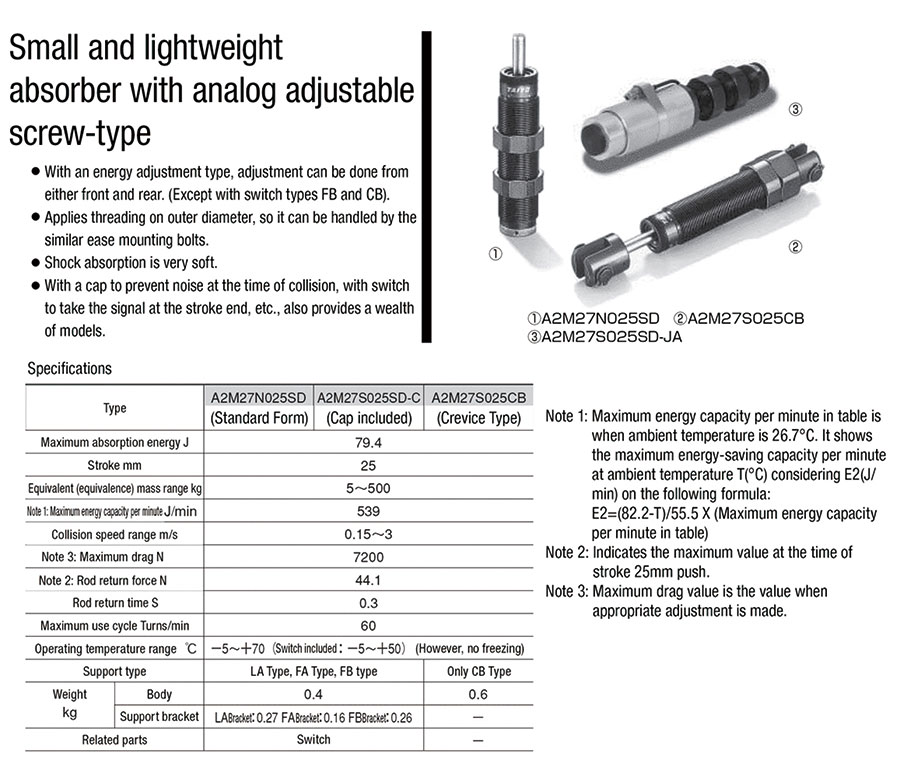

Shock Absorber A2M27 Series

Shock Absorber A2M27 Series
[Features]
· Analog controlled screw model, compact and lightweight shock absorber.
・Energy-adjustable; an adjustment is made either from the front or back (excluding FB, CB and other models with switches).
· Threading on the outer diameter makes handling just as easy as bolt attachment.
・Compact but absorbs shock very gently.
・A wide range of models are available including a model with cap to the up and collision noise and a model with a switch that catches singles signals at the end of stroke end.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
A2M27N025SD
A2M27S025SD-C
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Overall Length L
(mm)
Tip caps

189.43 €

1 9 Days 136NA

202.47 €

1 9 Days 156Available

Loading...

  1. 1

Basic information

Main Body/Related Parts Main Body Structure Adjustable Type Stroke S(mm) 25
Mounting Screw Nominal M M27 Nominal Mounting Screw [M] 27 Max. Absorbed Energy(J) 79.4
Orifice Type Multi-orifice Usage Environment Standard Main Body Material Steel
Max. Collision Velocity(m/s) 3 Min. Collision Velocity(m/s) 0.15 Equivalent Mass(kgf) 500
Max. Resisting Force Value(N) 7200 Piston Rod Return Force(N) 44.1 Max. Operating Cycle(cycle/min) 60
Allowable Angular Misalignment(deg) ±2.8 Absorbed Energy per Minute(J/min) 539 Operating Temperature Range(°C) -5::70
Type of Support Basic Type Switch NA Ordering Unit(pc.) 1
