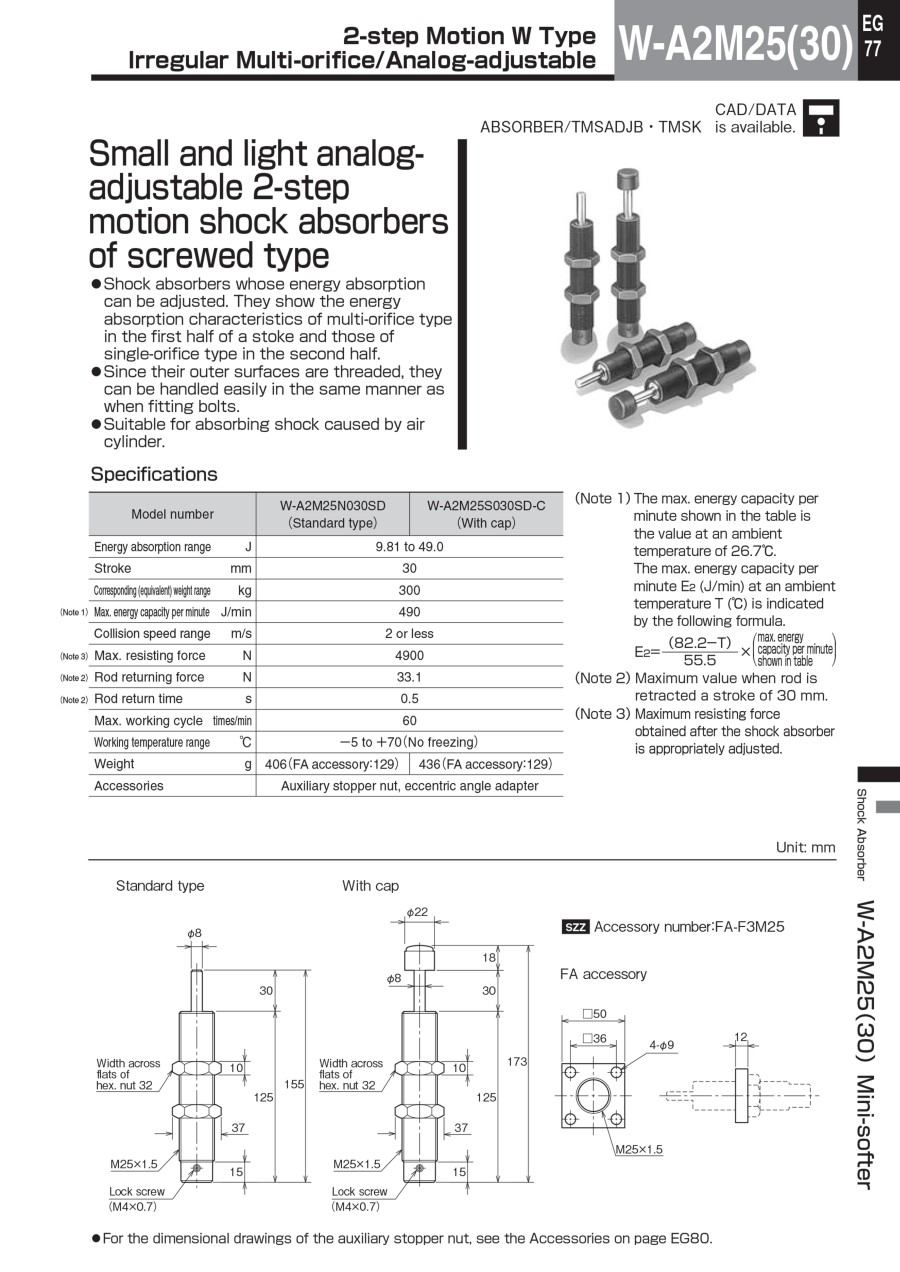

Shock Absorber W-A2M25 Series
[Features]
· Shock absorber adjusting absorbed energy.
· The front half of the stroke indicates the energy absorption of the single hole and the latter half also features this single hole energy absorption property
· Threading on the outer diameter makes handling just as easy as bolt attachment.
· Suitable for air cylinder shock absorption.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| W-A2M25N030SD |
| W-A2M25N040SD |
| W-A2M25S030SD-C |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Stroke S (mm) | Max. Absorbed Energy (J) | Overall Length L (mm) | Piston Rod Return Force (N) | Absorbed Energy per Minute (J/min) | Tip caps | |
|---|---|---|---|---|---|---|---|---|---|---|
173.98 € | 1 | 9 Days | 30 | 49 | 155 | 33.1 | 490 | NA | ||
128.77 € | 1 | 33 Days | 40 | 63.7 | 200.5 | 71.4 | 637 | NA | ||
112.49 € | 1 | 34 Days | 30 | 49 | 173 | 33.1 | 490 | Available |
Loading...
Basic information
| Main Body/Related Parts | Main Body | Structure | Adjustable Type | Mounting Screw Nominal M | M25 |
|---|---|---|---|---|---|
| Nominal Mounting Screw [M] | 25 | Orifice Type | Irregular multi orifice | Usage Environment | Standard |
| Main Body Material | Steel | Max. Collision Velocity(m/s) | 2 | Max. Resisting Force Value(N) | 4900 |
| Max. Operating Cycle(cycle/min) | 60 | Allowable Angular Misalignment(deg) | ±2.8 | Operating Temperature Range(°C) | -5::70 |
| Ordering Unit(pc.) | 1 |
Configure
Basic Attributes
-
Stroke S(mm)
-
Max. Absorbed Energy(J)
-
Overall Length L(mm)
-
Piston Rod Return Force(N)
-
Absorbed Energy per Minute(J/min)
-
Tip caps
- Available
- NA
-
Type
- W-A2M25
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- 9 Days or Less
- 33 Days or Less
- 34 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
