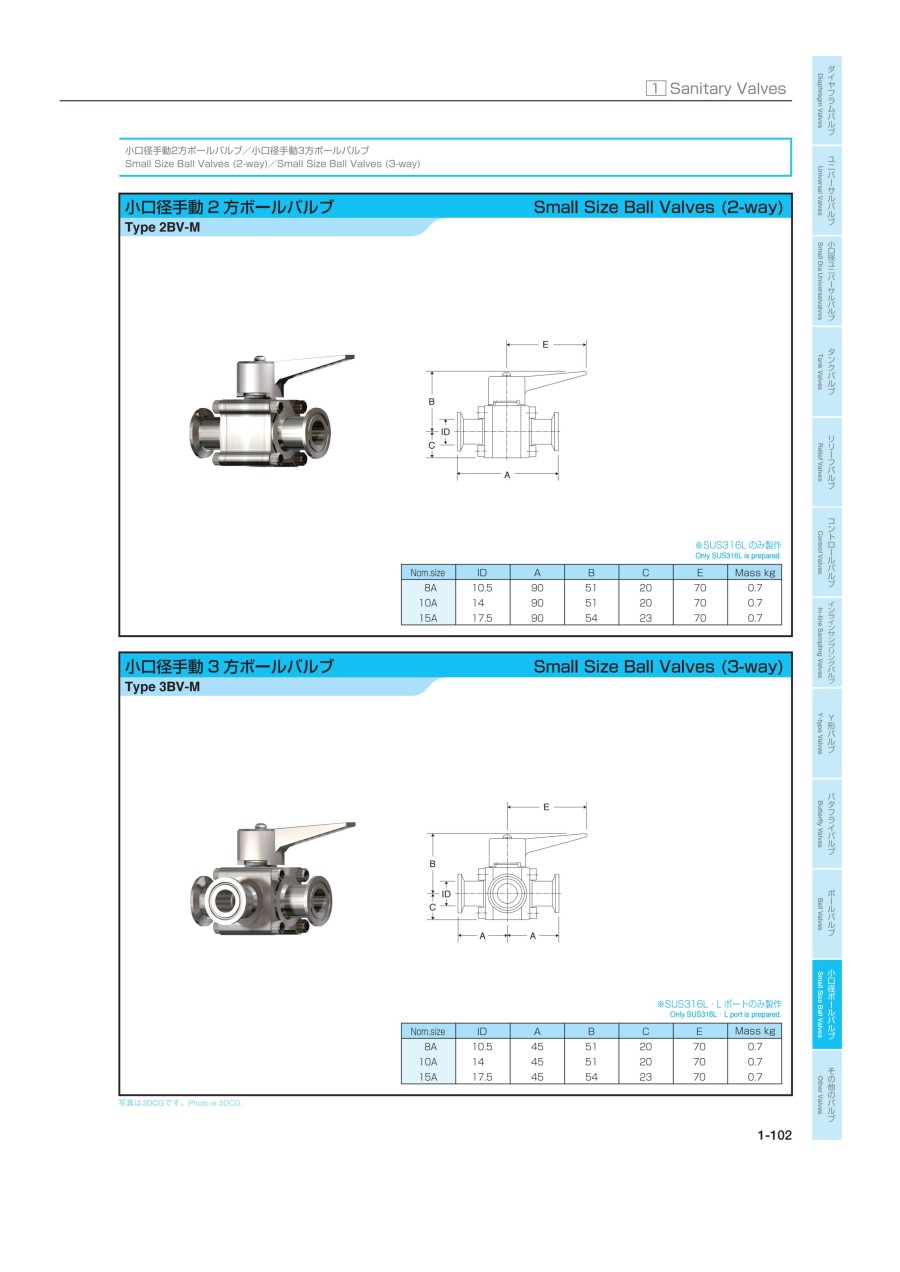

Small Caliber Manual 2-Way Ball Valve
- Volume Discount
The BV type ball valve is designed to support 2-way or 3-way flow channel switching. Disassembly and maintenance are easy since the valve body and nozzle are divided into three parts.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 2BV-M-C-8A-P |
| 2BV-M-C-10A-P |
| 2BV-M-C-15A-P |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | I.D. d (Ø) | Size | |
|---|---|---|---|---|---|---|
279.96 € | 1 | Available | 35 Days | 10.5 | 8A | |
280.77 € | 1 | Available | 5 Days | 14 | 10A | |
288.93 € | 1 | Available | 5 Days | 17.5 | 15A |
Loading...
Basic information
| Type | Ball | Applicable Fluid | Water | Driving Type | Manual |
|---|---|---|---|---|---|
| Seal Material | PTFE | Max. Pressure(MPa) | 0.7 | Surface Finish | Hair Line (Inner Buffed Surface) |
| Ball Valve Type | Small Caliber Two-Way | Fitting Direction | Straight Type | Fitting Type | Ferrule |
| Operating Temperature Range(℃) | 0::95 | Operational Air Pressure(MPa) | None |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
