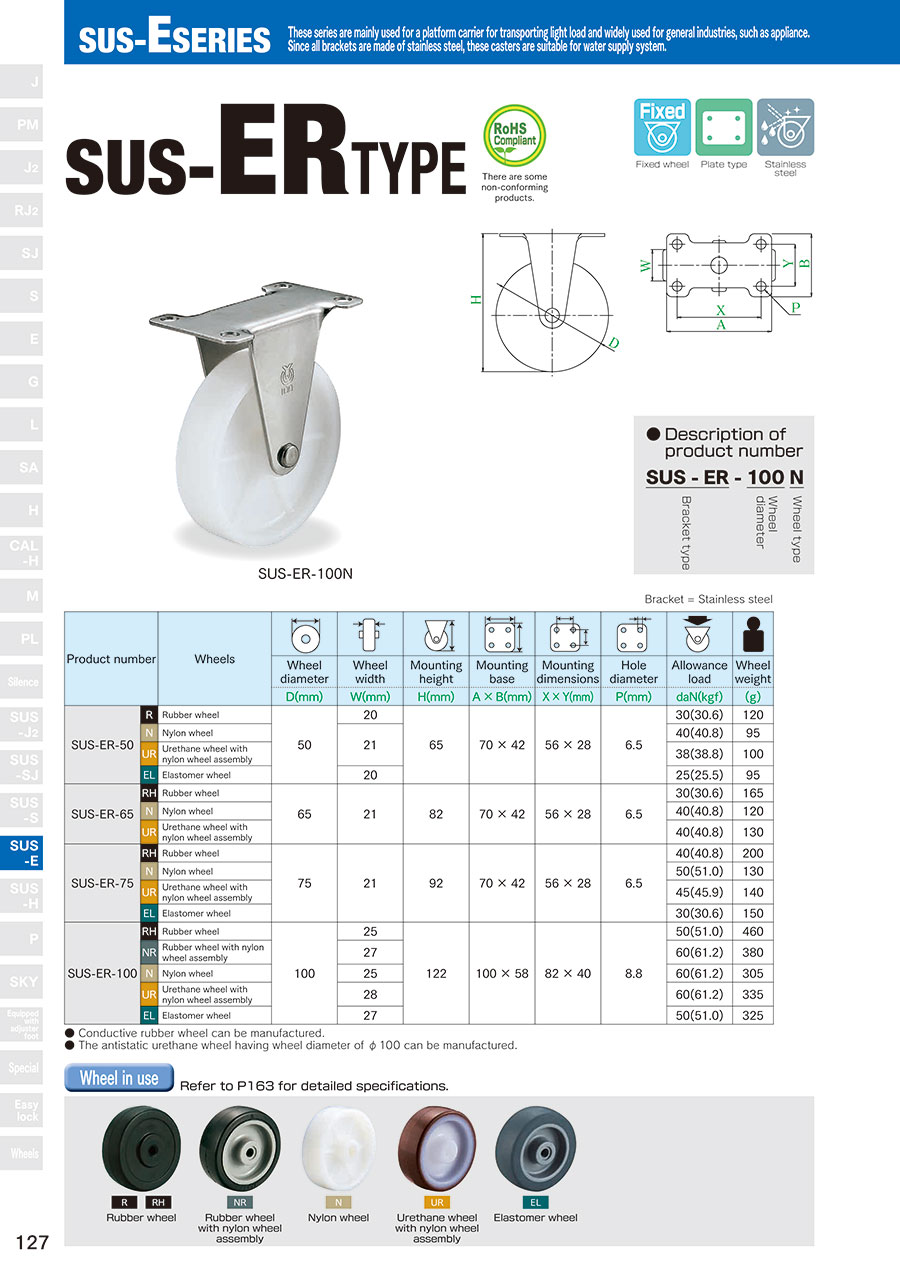

SUS-ER Type Fixed Wheel Plate Type
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| SUS-ER-50EL |
| SUS-ER-50N |
| SUS-ER-50R |
| SUS-ER-50UR |
| SUS-ER-65N |
| SUS-ER-65RH |
| SUS-ER-65UR |
| SUS-ER-75N |
| SUS-ER-75RH |
| SUS-ER-75UR |
| SUS-ER-100EL |
| SUS-ER-100N |
| SUS-ER-100NR |
| SUS-ER-100RH |
| SUS-ER-100UR |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Allowable Load (daN) | Wheel Material | Wheel Characteristics | Mounting Hole Pitch, Long Length Direction L1 (mm) | Mounting Hole Pitch, Short Length Direction W1 (mm) | Plate Length (mm) | Plate Width (mm) | Wheel Dia. D (mm) | Wheel Width (mm) | Load Category | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5.45 € | 1 | 12 Days | 65 | ~35.00 | 25 | Elastomer | Chemical Resistance | 56 | 28 | 70 | 42 | 50 | 20 | Light Load | ||
4.71 € | 1 | Available |
Same day
Stock | 65 | 35.01~80.00 | 40 | [Nylon] Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | 56 | 28 | 70 | 42 | 50 | 21 | Light Load | |
5.96 € | 1 | 12 Days | 65 | ~35.00 | 30 | Rubber | NA | 56 | 28 | 70 | 42 | 50 | 20 | Light Load | ||
6.66 € | 1 | 5 Days | 65 | 35.01~80.00 | 38 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | 56 | 28 | 70 | 42 | 50 | 21 | Light Load | ||
7.05 € | 1 | 5 Days | 82 | 35.01~80.00 | 40 | [Nylon] Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | 56 | 28 | 70 | 42 | 65 | 21 | Light Load | ||
8.33 € | 1 | 12 Days | 82 | ~35.00 | 30 | Rubber | NA | 56 | 28 | 70 | 42 | 65 | 21 | Light Load | ||
9.40 € | 1 | 5 Days | 82 | 35.01~80.00 | 40 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | 56 | 28 | 70 | 42 | 65 | 21 | Light Load | ||
8.03 € | 1 | 5 Days | 92 | 35.01~80.00 | 50 | [Nylon] Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | 56 | 28 | 70 | 42 | 75 | 21 | Light/Medium Load | ||
9.74 € | 1 | 12 Days | 92 | 35.01~80.00 | 40 | Rubber | NA | 56 | 28 | 70 | 42 | 75 | 21 | Light Load | ||
10.66 € | 1 | 5 Days | 92 | 35.01~80.00 | 45 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | 56 | 28 | 70 | 42 | 75 | 21 | Light Load | ||
16.54 € | 1 | 12 Days | 122 | 35.01~80.00 | 50 | Elastomer | Chemical Resistance | 82 | 40 | 100 | 58 | 100 | 27 | Light/Medium Load | ||
15.52 € | 1 | 5 Days | 122 | 35.01~80.00 | 60 | [Nylon] Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | 82 | 40 | 100 | 58 | 100 | 25 | Light/Medium Load | ||
19.61 € | 1 | 12 Days | 122 | 35.01~80.00 | 60 | [Others] Nylon Foil Rubber | NA | 82 | 40 | 100 | 58 | 100 | 27 | Light/Medium Load | ||
19.02 € | 1 | 12 Days | 122 | 35.01~80.00 | 50 | Rubber | NA | 82 | 40 | 100 | 58 | 100 | 25 | Light/Medium Load | ||
19.76 € | 1 | 5 Days | 122 | 35.01~80.00 | 60 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | 82 | 40 | 100 | 58 | 100 | 28 | Light/Medium Load |
Loading...
Basic information
| Caster Type | Plate Type Fixed | Stopper | NA | Fitting Material | Stainless Steel |
|---|---|---|---|---|---|
| Mounting Hole Type | Round Hole | Application | Commercial Facilities Display / Streamlining of Logistics, Hand Truck | Wheel Bearings | NA |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- ~35.00
- 35.01~80.00
-
Allowable Load(daN)
-
Wheel Material
- Rubber
- Nylon
- Urethane
- Others
- Elastomer
-
Wheel Characteristics
- Abrasion Resistance
- Gasoline Resistance (Light Oil included)
- Oil Resistance
- Chemical Resistance
- NA
-
Mounting Hole Pitch, Long Length Direction L1(mm)
-
Mounting Hole Pitch, Short Length Direction W1(mm)
-
Plate Length(mm)
-
Plate Width(mm)
-
Wheel Dia. D(mm)
-
Wheel Width(mm)
-
Type
- SUS-ER-EL
- SUS-ER-N
- SUS-ER-NR
- SUS-ER-R
- SUS-ER-RH
- SUS-ER-UR
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 12 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
