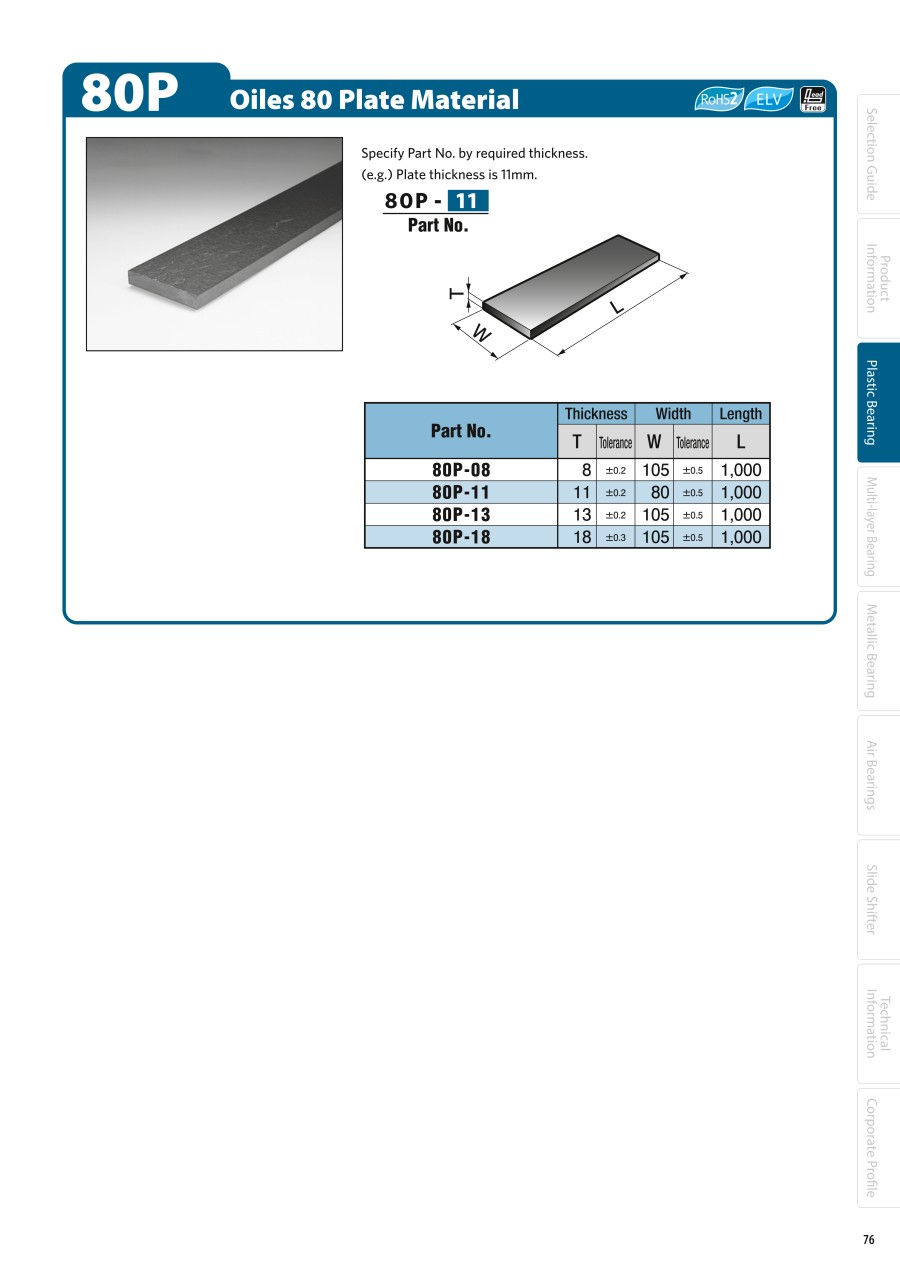

Material Plate #80 (80P)

Material Plate #80 (80P)

OILES

OILES

Can be used oil free and provides superior resistance to load and abrasion.

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
80P-08
80P-11
80P-13
80P-18
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSPlate Shape Thickness T
(mm) 		Plate Shape Width W
(mm)

87.07 €

1 6 Days 108105

95.60 €

1 8 Days -1180

154.23 €

1 19 Days 1013105

218.63 €

1 19 Days 1018105

Loading...

  1. 1

Basic information

The kind of shape Plate Material Resin Base Plastic Material Polyacetal containing oil
Lubrication Non-Lubricated Plate Shape Length L(mm) 1000 Operating Temperature Range Min(°C) -40
Operating Temperature Range Max(°C) 80

Configure

Clear all

4Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Plate Shape Thickness T(mm)

    • 8
    • 11
    • 13
    • 18

    Clear

  • Plate Shape Width W(mm)

    • 80
    • 105

    Clear

  • Type

    • 80P

    Clear

Filter by standard shipping days

    • All
    • 6 Days or Less
    • 8 Days or Less
    • 19 Days or Less

    Reset
