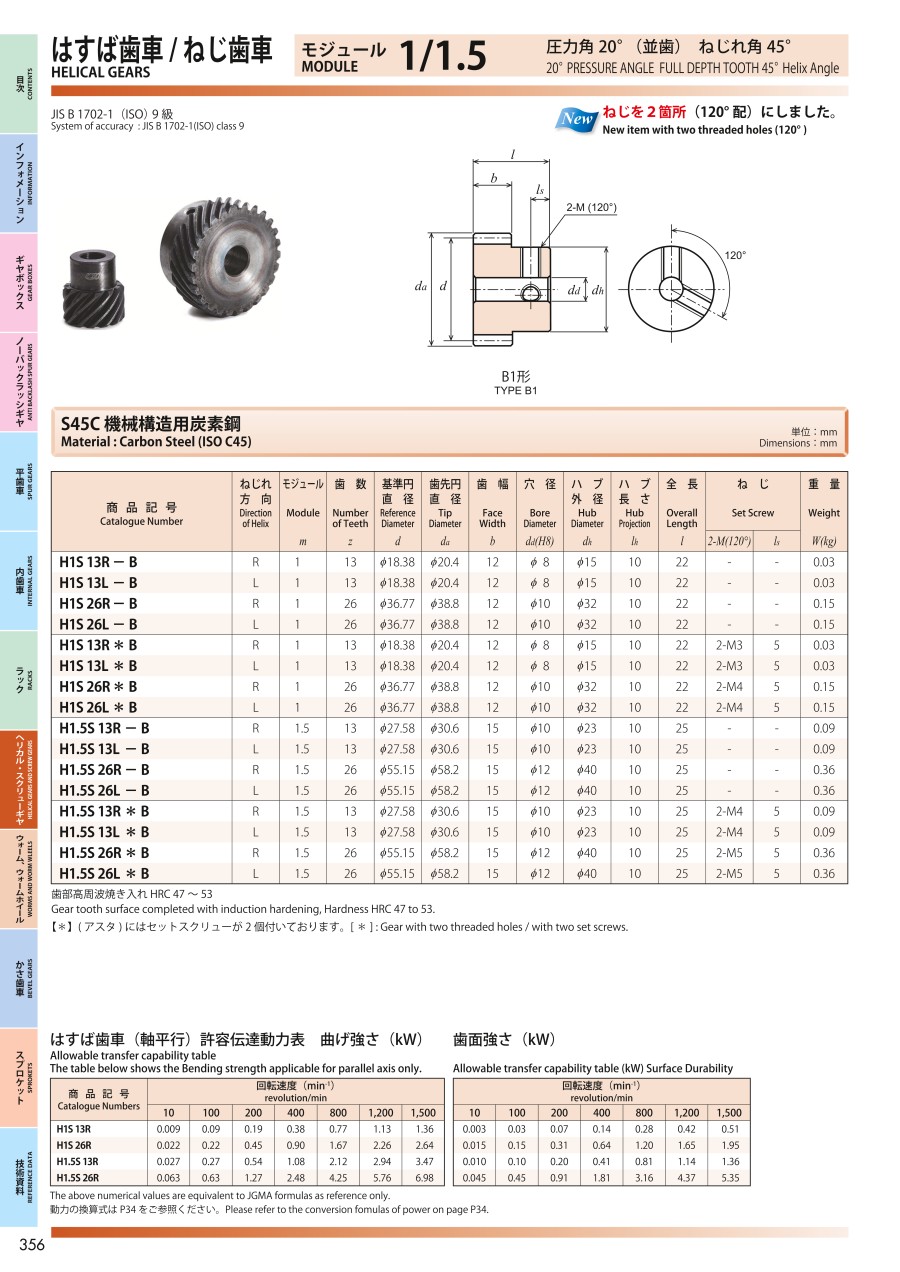

Helical Gear m1 S45C Type
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| H1S13L-B |
| H1S13R-B |
| H1S26L-B |
| H1S26R-B |
| H1.5S13R*B |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Module | Number of Teeth (Teeth) | Twisting Direction | Heat Treatment (φ) | Shaft Bore Config. | Shaft Bore Dia., Shaft Dia. | Face Width (mm) | Pilot Hole Product, Completed Product | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
9.19 € | 1 | 5 Days | 10 | 1 | 13 | Left | High frequency | Round Hole | 8 | 12 | Pilot Hole Product | ||
13.70 € | 1 | Available |
Same day
Stock | 10 | 1 | 13 | Right | High frequency | Round Hole | 8 | 12 | Pilot Hole Product | |
18.25 € | 1 |
Same day
Stock | 10 | 1 | 26 | Left | High frequency | Round Hole | 10 | 12 | Pilot Hole Product | ||
18.33 € | 1 |
Same day
Stock | 10 | 1 | 26 | Right | High frequency | Round Hole | 10 | 12 | Pilot Hole Product | ||
18.04 € | 1 |
Same day
Stock | 10 | 1.5 | 13 | Right | NA | Round hole+tap | 10 | 15 | Finished product |
Loading...
Basic information
| Material(mm) | Steel | Ground Tooth | NA | Surface Treatment | NA |
|---|
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Module
-
Number of Teeth(Teeth)
-
Twisting Direction
- Right
- Left
-
Heat Treatment(φ)
- NA
- High frequency
-
Shaft Bore Config.
-
Round Hole -
Round hole+tap
-
-
Shaft Bore Dia., Shaft Dia.
-
Face Width(mm)
-
Pilot Hole Product, Completed Product
- Finished product
- Pilot Hole Product
-
Type
- H1.5S
- H1S
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
