Index Plunger (Nose Lock Model) (NDXN-L)

Index Plunger (Nose Lock Model) (NDXN-L)
  • Volume Discount

IMAO CORPORATION

IMAO CORPORATION

This has the nose-locking style that keeps the pin in a retracted state. Various types are available, including a nose hardening type, a no-bake type and made of stainless steel..

[Features]
- It is a hand operated index plunger. Pull the knob and the nose retracts and the position release is easily done, let go of the knob and the nose returns to the original state by the force of the internal spring.
- The nose locking type can be locked (fixed) by rotating the knob 90° while it is pulled and the nose is retracted.

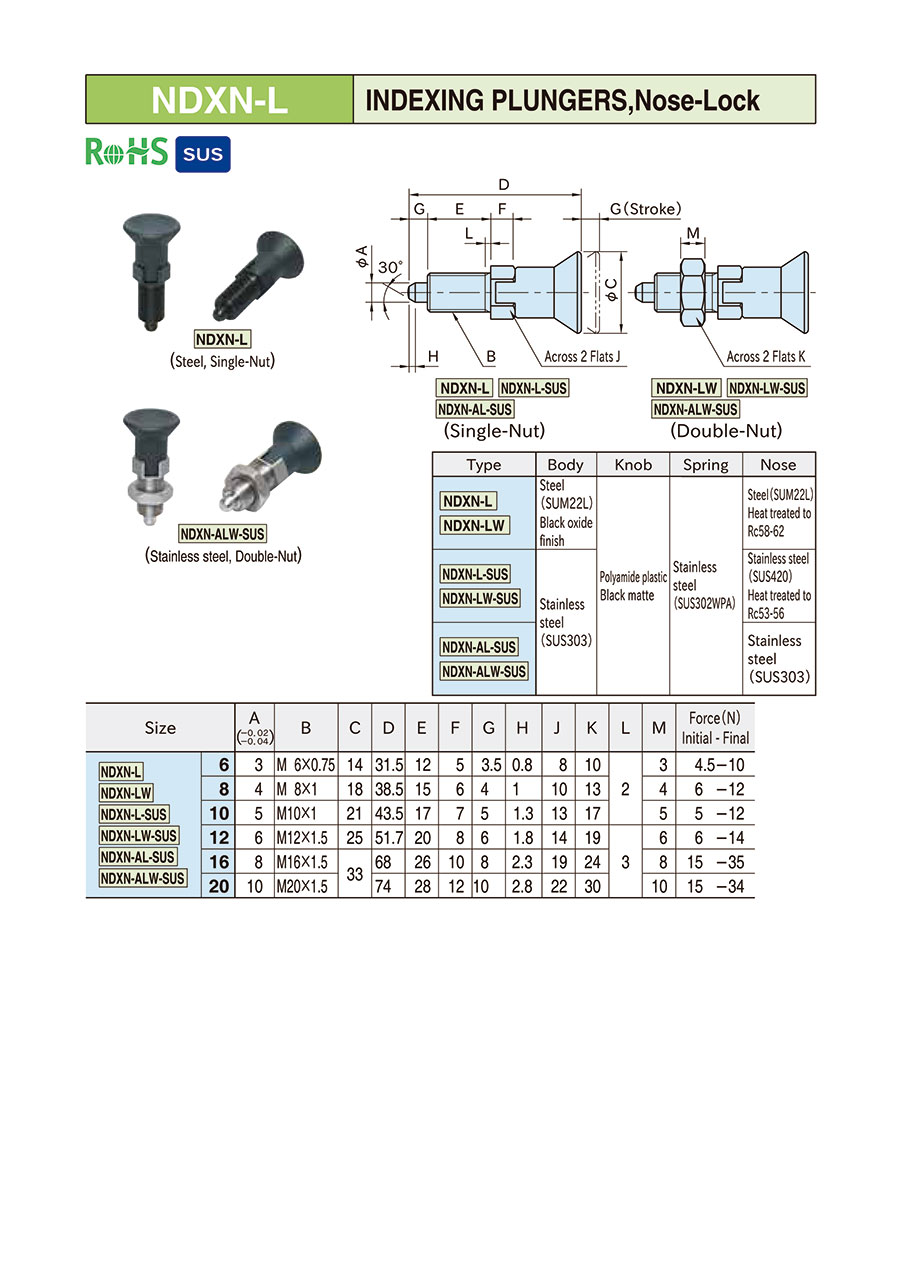

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
NDXN6ALW-SUS
NDXN6LW
NDXN6LW-SUS
NDXN8AL-SUS
NDXN8ALW-SUS
NDXN8L
NDXN8LW
NDXN8LW-SUS
NDXN10AL-SUS
NDXN10ALW-SUS
NDXN10L
NDXN10L-SUS
NDXN10LW
NDXN10LW-SUS
NDXN12AL-SUS
NDXN12ALW-SUS
NDXN12L
NDXN12L-SUS
NDXN12LW
NDXN12LW-SUS
NDXN16AL-SUS
NDXN16ALW-SUS
NDXN16L
NDXN16L-SUS
NDXN16LW
NDXN16LW-SUS
NDXN20AL-SUS
NDXN20ALW-SUS
NDXN20L
NDXN20L-SUS
NDXN20LW
NDXN20LW-SUS
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSMain Body Material Tip material Shaft O.D.
(mm) 		S
(mm) 		Main Body Surface Treatment Tip heat treatment d
(Ø) 		L
(mm) 		Nut

29.80 €

1 6 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel63.5NANA331.5Double Nut

18.64 €

1 6 Days 10[Steel] Steel[Steel] Steel63.5Black OxideCarburized331.5Double Nut

30.87 €

1 6 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel63.5NA[Hardened] Quenching and Tempering331.5Double Nut

27.72 €

1 8 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel84NANA438.5Single nut

28.82 €

1 6 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel84NANA438.5Double Nut

16.88 €

1 6 Days 10[Steel] Steel[Steel] Steel84Black OxideCarburized438.5Single nut

17.86 €

1 6 Days 10[Steel] Steel[Steel] Steel84Black OxideCarburized438.5Double Nut

29.88 €

1 6 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel84NA[Hardened] Quenching and Tempering438.5Double Nut

24.59 €

1 6 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel105NANA543.5Single nut

25.69 €

1 Available 8 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel105NANA543.5Double Nut

19.69 €

1 7 Days 10[Steel] Steel[Steel] Steel105Black OxideCarburized543.5Single nut

25.65 €

1 8 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel105NA[Hardened] Quenching and Tempering543.5Single nut

16.98 €

1 6 Days 10[Steel] Steel[Steel] Steel105Black OxideCarburized543.5Double Nut

27.82 €

1 8 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel105NA[Hardened] Quenching and Tempering543.5Double Nut

28.90 €

1 6 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel126NANA651.7Single nut

31.09 €

1 8 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel126NANA651.7Double Nut

18.27 €

1 6 Days 10[Steel] Steel[Steel] Steel126Black OxideCarburized651.7Single nut

29.97 €

1 8 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel126NA[Hardened] Quenching and Tempering651.7Single nut

19.30 €

1 6 Days 10[Steel] Steel[Steel] Steel126Black OxideCarburized651.7Double Nut

31.09 €

1 8 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel126NA[Hardened] Quenching and Tempering651.7Double Nut

37.71 €

1 8 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel168NANA868Single nut

42.09 €

1 8 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel168NANA868Double Nut

22.83 €

1 8 Days 10[Steel] Steel[Steel] Steel168Black OxideCarburized868Single nut

40.90 €

1 8 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel168NA[Hardened] Quenching and Tempering868Single nut

25.09 €

1 6 Days 10[Steel] Steel[Steel] Steel168Black OxideCarburized868Double Nut

45.28 €

1 8 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel168NA[Hardened] Quenching and Tempering868Double Nut

72.02 €

1 8 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel2010NANA1074Single nut

76.53 €

1 8 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel2010NANA1074Double Nut

35.87 €

1 8 Days 10[Steel] Steel[Steel] Steel2010Black OxideCarburized1074Single nut

73.08 €

1 8 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel2010NA[Hardened] Quenching and Tempering1074Single nut

38.25 €

1 6 Days 10[Steel] Steel[Steel] Steel2010Black OxideCarburized1074Double Nut

77.59 €

1 8 Days 10[Stainless Steel] Stainless Steel[Stainless Steel] Stainless Steel2010NA[Hardened] Quenching and Tempering1074Double Nut

Loading...

  1. 1

Basic information

Type Standard Locking Mechanism Nose Lock Mounting Method Screw-In
Overall Length Standard All Stainless Non-Compatible Operation nob (or lever) Available
Tip surface treatment NA

Configure

Clear all

32Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Main Body Material

    • Steel
      • Steel
    • Stainless Steel
      • Stainless Steel

    Clear

  • Tip material

    • Steel
      • Steel
    • Stainless Steel
      • Stainless Steel

    Clear

  • Shaft O.D.(mm)

    • 6
    • 8
    • 10
    • 12
    • 16
    • 20

    Clear

  • S(mm)

    • 3.5
    • 4
    • 5
    • 6
    • 8
    • 10

    Clear

  • Main Body Surface Treatment

    • NA
    • Black Oxide

    Clear

  • Tip heat treatment

    • NA
    • Hardened
      • Quenching and Tempering
    • Carburized

    Clear

  • d(Ø)

    • 3
    • 4
    • 5
    • 6
    • 8
    • 10

    Clear

  • L(mm)

    • 31.5
    • 38.5
    • 43.5
    • 51.7
    • 68
    • 74

    Clear

  • Nut

    • Double Nut
    • Single nut

    Clear

  • Type

    • NDXN-AL
    • NDXN-ALW
    • NDXN-L
    • NDXN-LW

    Clear

  • Filter by CAD data type

    • 2D
    • 3D

    Clear

Filter by standard shipping days

    • All
    • 6 Days or Less
    • 7 Days or Less
    • 8 Days or Less
