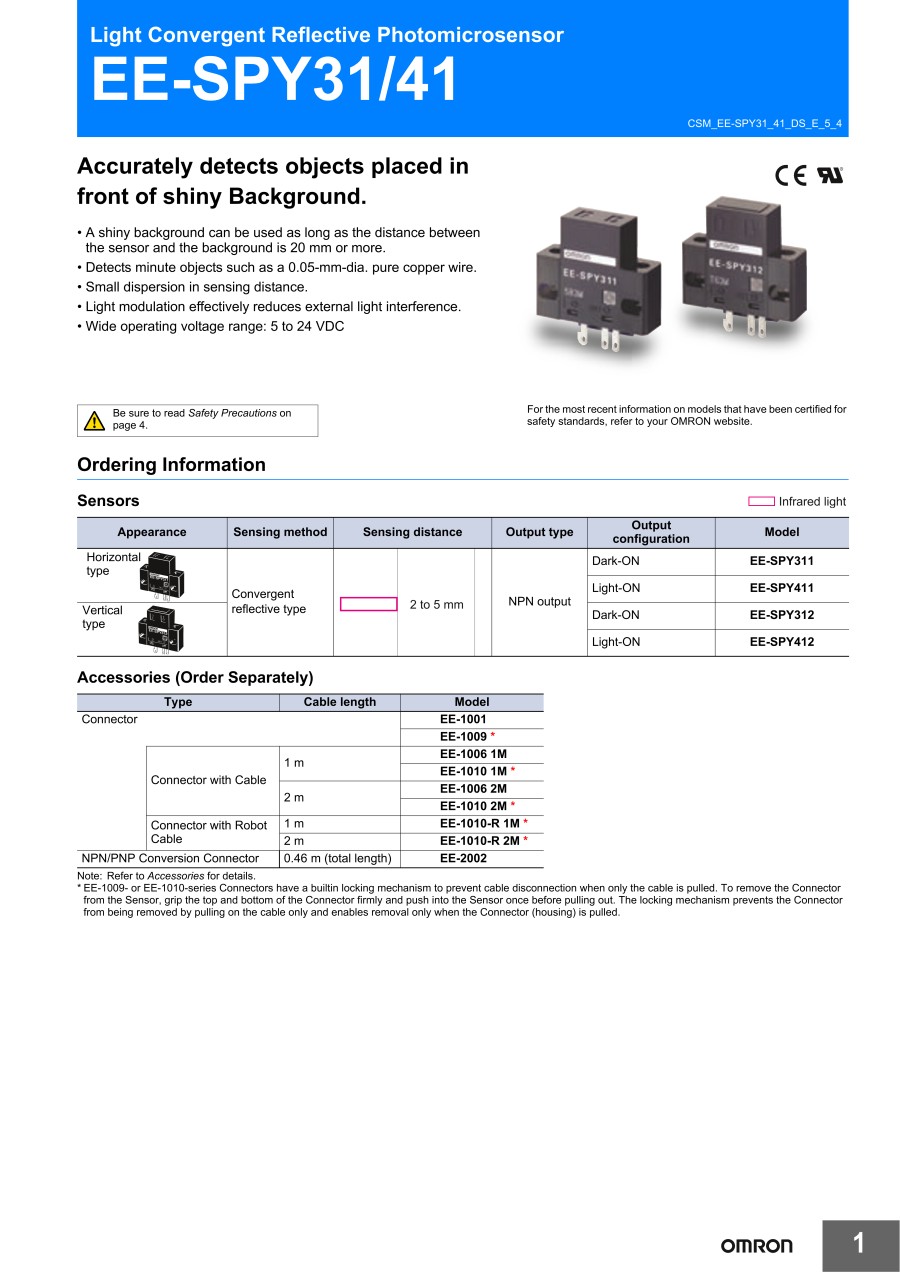

Limited Reflective Connector Type Photo/ Micro-Sensor [EE-SPY31/41]
![Limited Reflective Connector Type Photo/ Micro-Sensor [EE-SPY31/41]](http://uk.misumi-ec.com/linked/material/mech/OMR1/PHOTO/OMR1_221000419863.jpg?$product_main$)
[Features]
· Stable detection of workpiece even if there is mirror body such as stainless steel background of detected object.
· Stable detection of the workpiece if the background object is mirror surface at 20 mm.
· Can also detect small objects like copper strands of ø0.05 mm.
· Variation in detection distance is small.
· Modulated light type strong against disturbance light.
· Power supply voltage is DC5 to 24V extensive.
· Stable detection of workpiece even if there is mirror body such as stainless steel background of detected object.
· Stable detection of the workpiece if the background object is mirror surface at 20 mm.
· Can also detect small objects like copper strands of ø0.05 mm.
· Variation in detection distance is small.
· Modulated light type strong against disturbance light.
· Power supply voltage is DC5 to 24V extensive.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Detection Distance(mm) | 5 | Head maximum width(mm) | 26 | Head maximum height(mm) | 22.8 |
|---|---|---|---|---|---|
| Head maximum, depth(mm) | 8 | Detection Method | Limited Reflective Type | Luminescence Method | Modulated light (infrared light) |
| Operating Mode | Light Seen - ON | Output Format | NPN voltage output | Connection Method | Connector type (soldering not possible) |
| Indicator Light Mode | Illuminated light (red) | Slit hole/width(mm) | - | Standard Detected Subject(mm) | φ0.05 mm copper wire (minimum detection) |
| Cord/cable specification | - | Cord/cable length(mm) | - | Groove depth(mm) | - |
| Protective Structure | IP50 | Mounting format | - | Between amplifiers(mm) | - |
| Applicable Pipe(φ) | - | Details Type | - |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
