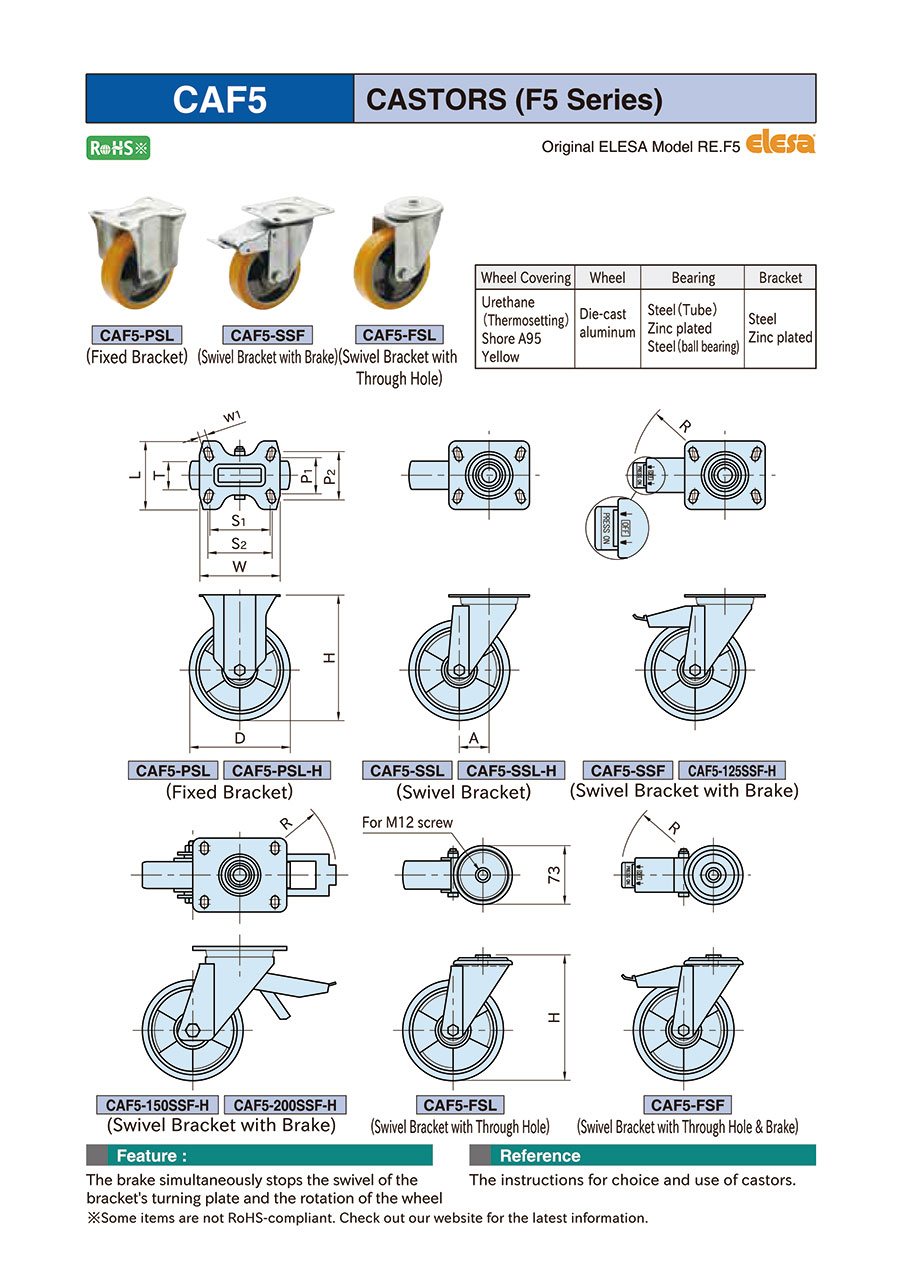

Castors (F5 Series) (CAF5)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Type | H (mm) | Allowable Load Range (daN) | Stopper | Allowable Load (daN) | Mounting Hole Type | Mounting Hole Pitch Longitudinal direction (mm) | Mounting Hole Pitch Transverse Direction (mm) | Plate Length L (mm) | Plate Width W (mm) | D (mm) | T (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
54.68 € | 1 | 8 Days | 10 | Swiveling, Through Hole | 107 | 140.01~220.00 | With Stopper | 200 | - | - | - | - | - | 80 | 25 | ||
45.22 € | 1 | 8 Days | 10 | Swiveling, Through Hole | 107 | 140.01~220.00 | NA | 200 | - | - | - | - | - | 80 | 25 | ||
38.94 € | 1 | 26 Days | 10 | Fixed | 107 | 140.01~220.00 | NA | 200 | Long Hole | 45(60) | 75(80) | 85 | 100 | 80 | 25 | ||
55.65 € | 1 | 8 Days | 10 | Swiveling, Plate | 107 | 140.01~220.00 | With Stopper | 200 | Long Hole | 45(60) | 75(80) | 85 | 100 | 80 | 25 | ||
43.60 € | 1 | 8 Days | 10 | Swiveling, Plate | 107 | 140.01~220.00 | NA | 200 | Long Hole | 45(60) | 75(80) | 85 | 100 | 80 | 25 | ||
70.29 € | 1 | 8 Days | 10 | Swiveling, Through Hole | 128 | 140.01~220.00 | With Stopper | 200 | - | - | - | - | - | 100 | 30 | ||
58.62 € | 1 | 8 Days | 10 | Swiveling, Through Hole | 128 | 140.01~220.00 | NA | 200 | - | - | - | - | - | 100 | 30 | ||
51.90 € | 1 | 8 Days | 10 | Fixed | 128 | 140.01~220.00 | NA | 200 | Long Hole | 45(60) | 75(80) | 85 | 100 | 100 | 30 | ||
70.74 € | 1 | 8 Days | 10 | Swiveling, Plate | 128 | 140.01~220.00 | With Stopper | 200 | Long Hole | 45(60) | 75(80) | 85 | 100 | 100 | 30 | ||
59.07 € | 1 | 8 Days | 10 | Swiveling, Plate | 128 | 140.01~220.00 | NA | 200 | Long Hole | 45(60) | 75(80) | 85 | 100 | 100 | 30 | ||
78.23 € | 1 | 8 Days | 10 | Swiveling, Through Hole | 156 | 140.01~220.00 | With Stopper | 220 | - | - | - | - | - | 125 | 35 | ||
67.55 € | 1 | 8 Days | 10 | Swiveling, Through Hole | 156 | 140.01~220.00 | NA | 220 | - | - | - | - | - | 125 | 35 | ||
58.70 € | 1 | 8 Days | 10 | Fixed | 156 | 140.01~220.00 | NA | 220 | Long Hole | 45(60) | 75(80) | 85 | 100 | 125 | 35 | ||
66.73 € | 1 | 34 Days | 10 | Fixed | 161 | 320.01~485.00 | NA | 350 | Long Hole | 45(60) | 75(80) | 85 | 100 | 125 | 35 | ||
78.60 € | 1 | 8 Days | 10 | Swiveling, Plate | 156 | 140.01~220.00 | With Stopper | 220 | Long Hole | 45(60) | 75(80) | 85 | 100 | 125 | 35 | ||
97.54 € | 1 | 8 Days | 10 | Swiveling, Plate | 161 | 320.01~485.00 | With Stopper | 350 | Long Hole | 45(60) | 75(80) | 85 | 100 | 125 | 35 | ||
67.99 € | 1 | 8 Days | 10 | Swiveling, Plate | 156 | 140.01~220.00 | NA | 220 | Long Hole | 45(60) | 75(80) | 85 | 100 | 125 | 35 | ||
86.87 € | 1 | 8 Days | 10 | Swiveling, Plate | 161 | 320.01~485.00 | NA | 350 | Long Hole | 45(60) | 75(80) | 85 | 100 | 125 | 35 | ||
97.06 € | 1 | 8 Days | 10 | Fixed | 200 | 485.01~750.00 | NA | 600 | Long Hole | 73(87) | 105(105) | 110 | 140 | 150 | 40 | ||
116.74 € | 1 | 8 Days | 10 | Swiveling, Plate | 200 | 485.01~750.00 | With Stopper | 600 | Long Hole | 73(87) | 105(105) | 110 | 140 | 150 | 40 | ||
135.23 € | 1 | 8 Days | 10 | Swiveling, Plate | 200 | 485.01~750.00 | NA | 600 | Long Hole | 73(87) | 105(105) | 110 | 140 | 150 | 40 | ||
95.30 € | 1 | 8 Days | 10 | Fixed | 250 | 485.01~750.00 | NA | 750 | Long Hole | 73(87) | 105(105) | 110 | 140 | 200 | 50 | ||
149.65 € | 1 | 8 Days | 10 | Swiveling, Plate | 250 | 485.01~750.00 | With Stopper | 750 | Long Hole | 73(87) | 105(105) | 110 | 140 | 200 | 50 | ||
126.65 € | 1 | 8 Days | 10 | Swiveling, Plate | 250 | 485.01~750.00 | NA | 750 | Long Hole | 73(87) | 105(105) | 110 | 140 | 200 | 50 |
Loading...
Basic information
| Wheel Material | Urethane (Thermosetting Property) | Wheel Characteristics | Abrasion Resistance | Bracket Material | SPHD |
|---|
Configure
Basic Attributes
-
Type
- Swiveling, Plate
- Fixed
- Swiveling, Through Hole
-
H(mm)
-
Allowable Load Range(daN)
- 140.01~220.00
- 320.01~485.00
- 485.01~750.00
-
Stopper
- NA
- With Stopper
-
Allowable Load(daN)
-
Mounting Hole Type
- Long Hole
-
Mounting Hole Pitch Longitudinal direction(mm)
-
Mounting Hole Pitch Transverse Direction(mm)
-
Plate Length L(mm)
-
Plate Width W(mm)
-
D(mm)
-
T(mm)
-
Type
- CAF5
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 8 Days or Less
- 26 Days or Less
- 34 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
