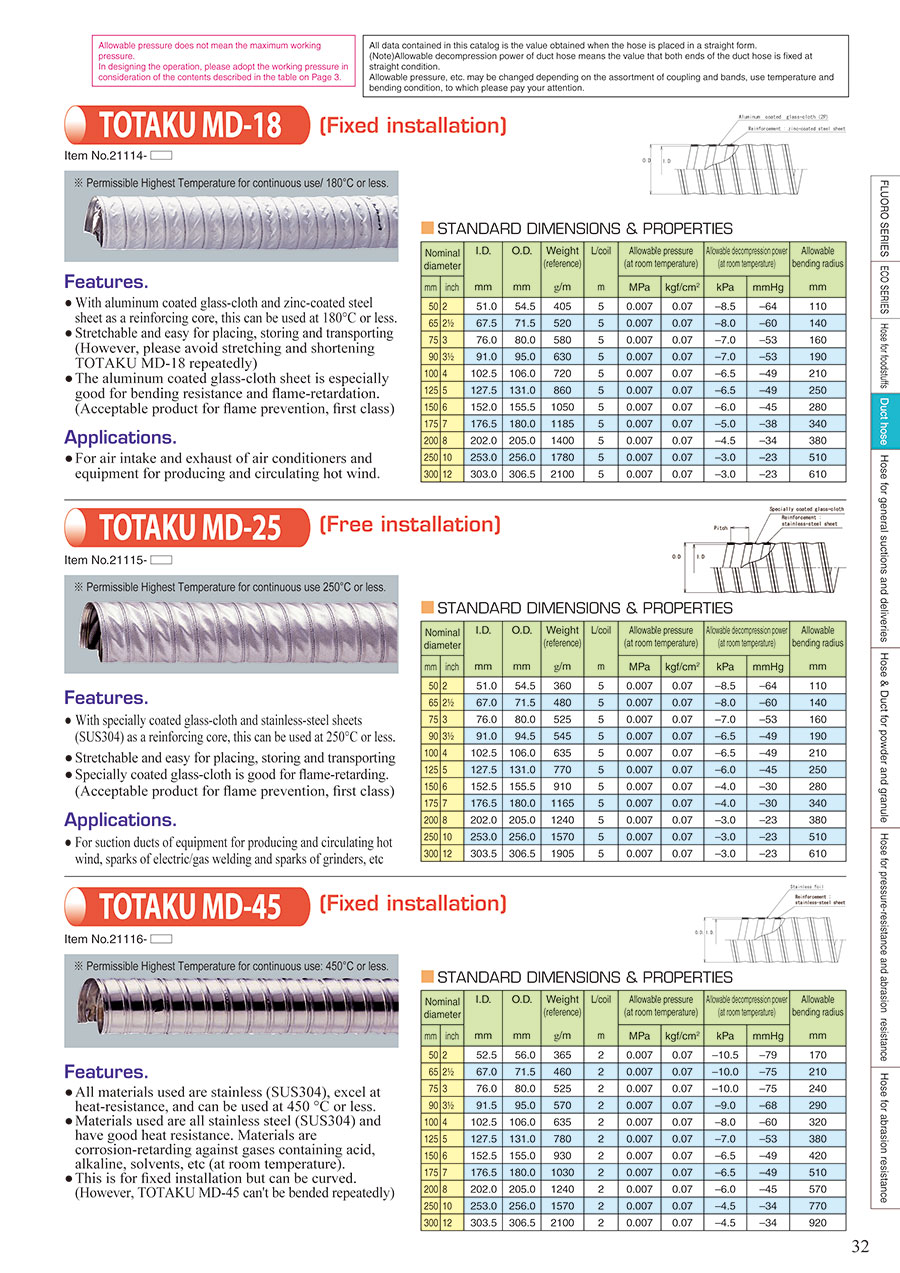

TAC Heat-Resistant Duct MD-45 (Fixed Piping)

TAC Heat-Resistant Duct MD-45 (Fixed Piping)

TOTAKU INDUSTRIES

TOTAKU INDUSTRIES

[Features]
· All of components used are made of stainless steel (SUS304), have superior heat resistance performance, and can be used at 450°C or below.
· The materials are not prone to corrosion even from gases containing acids, alkaline substances, solvents, etc.
· This product is designed for fixed piping, but it is also possible to create bends (repeated bending is not supported).

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
21116-50-2
21116-65-2
21116-75-2
21116-90-2
21116-100-2
21116-125-2
21116-150-2
21116-175-2
21116-200-2
21116-250-2
21116-300-2
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSInternal Diameter
(mm) 		Outer Diameter
(mm) 		Allowable Bending Radius
(mm) 		Nominal Diameter (mm) Nominal Diameter (inch)

-

1 9 Days 1052.556170502

-

1 9 Days 106771.5210652 1/2

-

1 10 Days 107680240753

-

1 9 Days 1091.595290903 1/2

-

1 9 Days 10102.51063201004

-

1 34 Days 10127.51313801255

-

1 34 Days 10152.51554201506

-

1 34 Days 10176.51805101757

-

1 34 Days 102022055702008

-

1 34 Days 1025325677025010

-

1 64 Days 10303.5306.592030012

Loading...

  1. 1

Basic information

Material EN 1.4301 Equiv. Stainless Steel Foil Reinforcement Core Cutting Service Usage NA Properties Standard / Heat-Resistance
Color Metallic color Applicable Fluid Acid and alkali containing gases / Air Allowable Pressure (Normal Temperature)(MPa) 0.007
Operating Temperature Range(℃) 30::450 Length(m) 2

Configure

Clear all

11Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Internal Diameter(mm)

    • 52.5
    • 67
    • 76
    • 91.5
    • 102.5
    • 127.5
    • 152.5
    • 176.5
    • 202
    • 253
    • 303.5

    Clear

  • Outer Diameter(mm)

    • 56
    • 71.5
    • 80
    • 95
    • 106
    • 131
    • 155
    • 180
    • 205
    • 256
    • 306.5

    Clear

  • Nominal Diameter (mm)

    • 50
    • 65
    • 75
    • 90
    • 100
    • 125
    • 150
    • 175
    • 200
    • 250
    • 300

    Clear

  • Nominal Diameter (inch)

    • 2
    • 2 1/2
    • 3
    • 3 1/2
    • 4
    • 5
    • 6
    • 7
    • 8
    • 10
    • 12

    Clear

  • Type

    • 21116

    Clear
