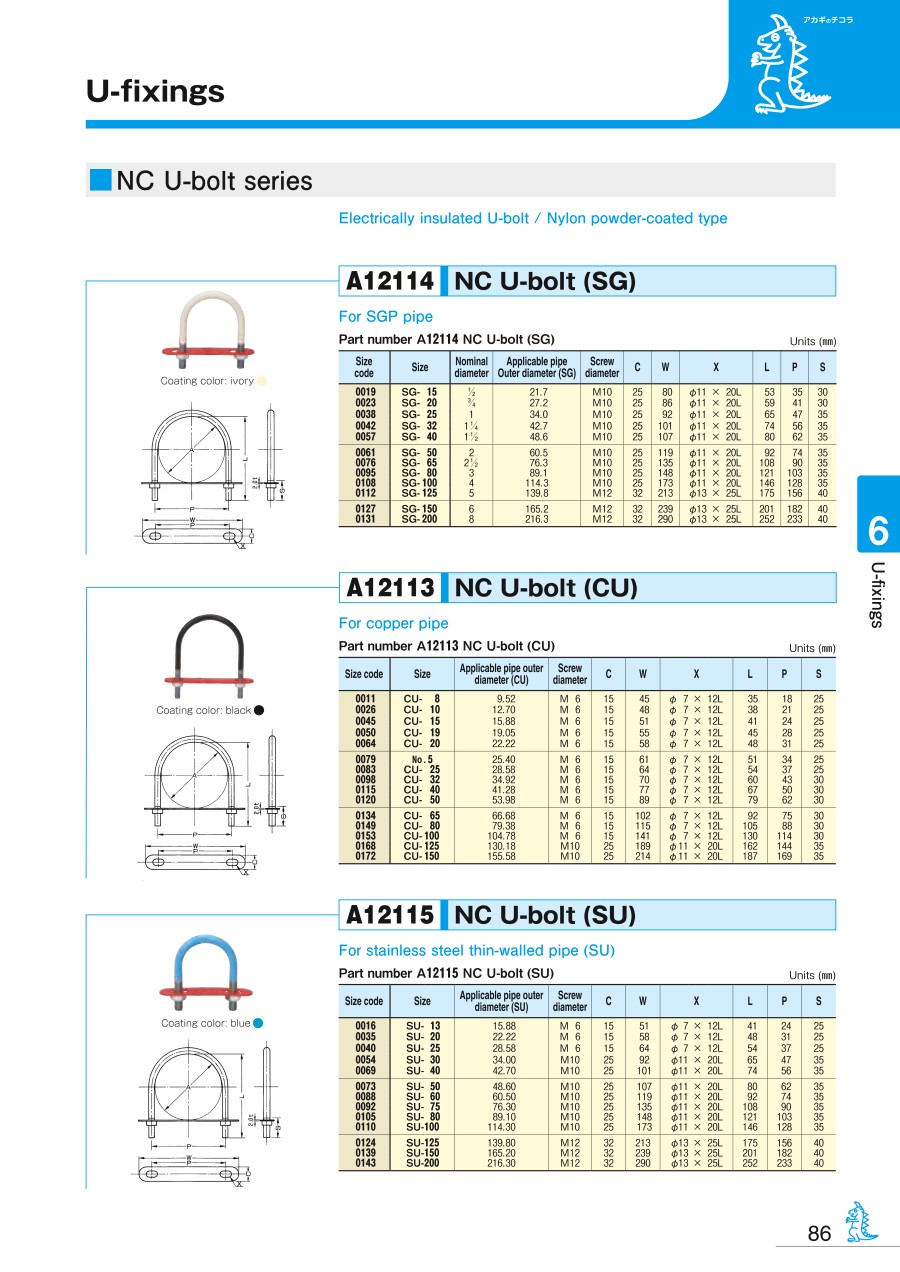

U-Shape Metal Fitting NC-U Bolt (SG / CU / SU)
- Volume Discount
▪ U-bolt for SGP tubes, copper tubes, stainless steel thin-walled tubes (SU Molar pipe), and electrical insulation.
▪ Nylon powder coating type.
▪ Nylon powder coating type with excellent electrical insulation and shock resistance properties.
▪ Heat resistance room temperature 100°C. (No abnormalities in data for test conducted under 150°C for 24 hours)
· U-bolt is zinc finished.
▪ Plate is made of Polypropylene.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main fit tube(or application tube)outside diameter (mm) | Applicable Pipe Type | Size | Compatible Pipe Outer Diameter (mm) | Color | |
|---|---|---|---|---|---|---|---|---|---|
5.95 € | 1 | Available | 5 Days | 1～Less than 10 | Copper Pipe | CU-8 | 9.52 | Black | |
6.71 € | 1 | Available | 16 Days | 10～Less than 20 | Copper Pipe | CU-10 | 12.7 | Black | |
8.42 € | 1 | 13 Days | 10～Less than 20 | Copper Pipe | CU-15 | 15.88 | Black | ||
8.95 € | 1 | 13 Days | 10～Less than 20 | Copper Pipe | CU-19 | 19.05 | Black | ||
5.50 € | 1 | Available | 8 Days | 20～Less than 30 | Copper Pipe | CU-20 | 22.22 | Black | |
8.17 € | 1 | Available | 8 Days | 20～Less than 30 | Copper Pipe | CU-5 | 25.4 | Black | |
11.00 € | 1 | 13 Days | 20～Less than 30 | Copper Pipe | CU-25 | 28.58 | Black | ||
6.87 € | 1 | Available | 12 Days | 30～Less than 40 | Copper Pipe | CU-32 | 34.92 | Black | |
8.71 € | 1 | Available | 18 Days | 40～Less than 50 | Copper Pipe | CU-40 | 41.28 | Black | |
9.37 € | 1 | Available | 8 Days | 50～Less than 60 | Copper Pipe | CU-50 | 53.98 | Black | |
10.97 € | 1 | Available | 8 Days | 60～Less than 70 | Copper Pipe | CU-65 | 66.68 | Black | |
11.79 € | 1 | Available | 5 Days | 70～Less than 80 | Copper Pipe | CU-80 | 79.38 | Black | |
8.71 € | 1 | Available |
Same day
Stock | 100～Less than 200 | Copper Pipe | CU-100 | 104.78 | Black | |
37.19 € | 1 | 20 Days | 100～Less than 200 | Copper Pipe | CU-125 | 130.18 | Black | ||
50.64 € | 1 | 20 Days | 100～Less than 200 | Copper Pipe | CU-150 | 155.58 | Black | ||
12.24 € | 1 | 13 Days | 20～Less than 30 | [Steel Pipe / Coated Steel Pipe] SGP Pipe | SG-15 | 21.7 | Ivory | ||
13.40 € | 1 | 13 Days | 20～Less than 30 | [Steel Pipe / Coated Steel Pipe] SGP Pipe | SG-20 | 27.2 | Ivory | ||
13.72 € | 1 | 13 Days | 30～Less than 40 | [Steel Pipe / Coated Steel Pipe] SGP Pipe | SG-25 | 34 | Ivory | ||
14.79 € | 1 | 15 Days | 40～Less than 50 | [Steel Pipe / Coated Steel Pipe] SGP Pipe | SG-32 | 42.7 | Ivory | ||
10.71 € | 1 | Available | 8 Days | 40～Less than 50 | [Steel Pipe / Coated Steel Pipe] SGP Pipe | SG-40 | 48.6 | Ivory | |
15.47 € | 1 | 15 Days | 60～Less than 70 | [Steel Pipe / Coated Steel Pipe] SGP Pipe | SG-50 | 60.5 | Ivory | ||
19.94 € | 1 | 18 Days | 70～Less than 80 | [Steel Pipe / Coated Steel Pipe] SGP Pipe | SG-65 | 76.3 | Ivory | ||
12.93 € | 1 | Available | 8 Days | 80～Less than 90 | [Steel Pipe / Coated Steel Pipe] SGP Pipe | SG-80 | 89.1 | Ivory | |
17.59 € | 1 | Available | 8 Days | 100～Less than 200 | [Steel Pipe / Coated Steel Pipe] SGP Pipe | SG-100 | 114.3 | Ivory | |
45.81 € | 1 | 20 Days | 100～Less than 200 | [Steel Pipe / Coated Steel Pipe] SGP Pipe | SG-125 | 139.8 | Ivory | ||
64.63 € | 1 | 20 Days | 100～Less than 200 | [Steel Pipe / Coated Steel Pipe] SGP Pipe | SG-150 | 165.2 | Ivory | ||
95.74 € | 1 | 13 Days | 200～Less than 300 | [Steel Pipe / Coated Steel Pipe] SGP Pipe | SG-200 | 216.3 | Ivory | ||
9.25 € | 1 | 20 Days | 10～Less than 20 | [Stainless Steel Pipe] Stainless Steel Thin Wall Tube | SU-13 | 15.88 | Blue | ||
6.60 € | 1 | Available | 8 Days | 20～Less than 30 | [Stainless Steel Pipe] Stainless Steel Thin Wall Tube | SU-20 | 22.22 | Blue | |
9.18 € | 1 | 13 Days | 20～Less than 30 | [Stainless Steel Pipe] Stainless Steel Thin Wall Tube | SU-25 | 28.58 | Blue | ||
13.46 € | 1 | 13 Days | 30～Less than 40 | [Stainless Steel Pipe] Stainless Steel Thin Wall Tube | SU-30 | 34 | Blue | ||
14.49 € | 1 | 13 Days | 40～Less than 50 | [Stainless Steel Pipe] Stainless Steel Thin Wall Tube | SU-40 | 42.7 | Blue | ||
14.61 € | 1 | 13 Days | 40～Less than 50 | [Stainless Steel Pipe] Stainless Steel Thin Wall Tube | SU-50 | 48.6 | Blue | ||
15.64 € | 1 | 13 Days | 60～Less than 70 | [Stainless Steel Pipe] Stainless Steel Thin Wall Tube | SU-60 | 60.5 | Blue | ||
14.87 € | 1 | Available | 8 Days | 70～Less than 80 | [Stainless Steel Pipe] Stainless Steel Thin Wall Tube | SU-75 | 76.3 | Blue | |
12.93 € | 1 | Available | 8 Days | 80～Less than 90 | [Stainless Steel Pipe] Stainless Steel Thin Wall Tube | SU-80 | 89.1 | Blue | |
14.94 € | 1 | Available | 8 Days | 100～Less than 200 | [Stainless Steel Pipe] Stainless Steel Thin Wall Tube | SU-100 | 114.3 | Blue | |
45.81 € | 1 | 20 Days | 100～Less than 200 | [Stainless Steel Pipe] Stainless Steel Thin Wall Tube | SU-125 | 139.8 | Blue | ||
60.47 € | 1 | 20 Days | 100～Less than 200 | [Stainless Steel Pipe] Stainless Steel Thin Wall Tube | SU-150 | 165.2 | Blue |
Loading...
Basic information
| Type | U-Bolt | Material | Steel | Surface Treatment | Electrogalvanizing |
|---|---|---|---|---|---|
| Number Contained In A Packet(piece) | 1 |
