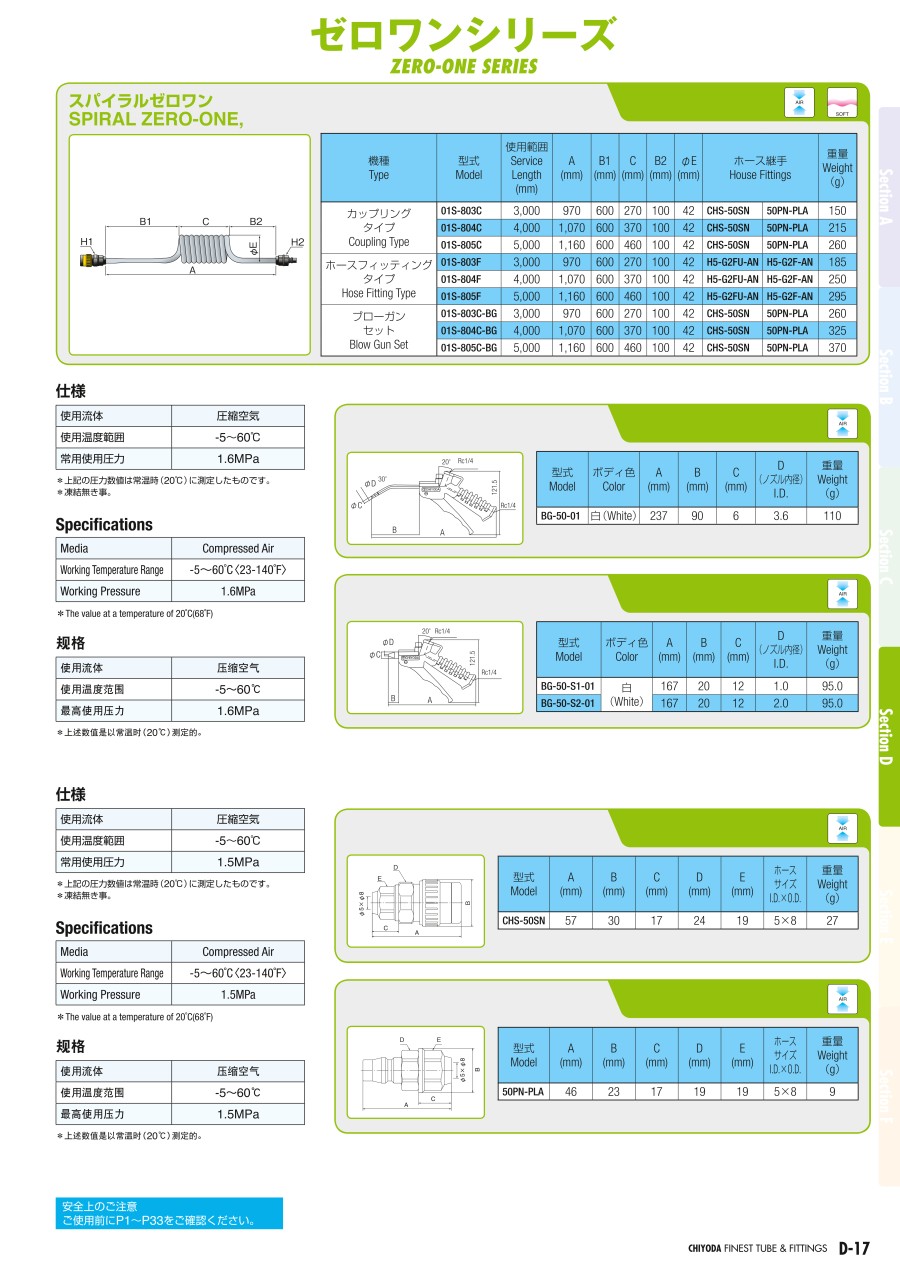

Zero One Series Spiral Zero One
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 01S-803C |
| 01S-803C-BG |
| 01S-803F |
| 01S-804C |
| 01S-804C-BG |
| 01S-804F |
| 01S-805C |
| 01S-805C-BG |
| 01S-805F |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Operating Range (mm) | Hose fitting H1 | Hose fitting H2 | Model | |
|---|---|---|---|---|---|---|---|---|
30.94 € | 1 | 5 Days | 3000 | CHS-50SN | 50PN-PLA | Coupling Type | ||
46.49 € | 1 | 10 Days | 3000 | CHS-50SN | 50PN-PLA | Blow Gun Set | ||
26.29 € | 1 | 10 Days | 3000 | H5-G2FU-AN | H5-G2F-AN | Hose Fitting Type | ||
34.41 € | 1 | 5 Days | 4000 | CHS-50SN | 50PN-PLA | Coupling Type | ||
64.44 € | 1 | 5 Days | 4000 | CHS-50SN | 50PN-PLA | Blow Gun Set | ||
29.41 € | 1 | 10 Days | 4000 | H5-G2FU-AN | H5-G2F-AN | Hose Fitting Type | ||
37.72 € | 1 | 15 Days | 5000 | CHS-50SN | 50PN-PLA | Coupling Type | ||
52.60 € | 1 | 10 Days | 5000 | CHS-50SN | 50PN-PLA | Blow Gun Set | ||
32.40 € | 1 | 10 Days | 5000 | H5-G2FU-AN | H5-G2F-AN | Hose Fitting Type |
Loading...
Basic information
| Type | Spiral | Cutting Service Usage | NA | Outer Diameter(Ø) | 8 |
|---|---|---|---|---|---|
| O.D. [Distinction] | Up to 8 | Material | Urethane | Applicable Fluid | Compressed Air |
| Operating Environment | Standard | Number of Bores(Core) | 1 | Material, Urethane | Polyurethane |
| Operating Temperature Range (when using air)(°C) | -5::60 | Operating Pressure Range (when using air)(MPa) | ::0.8 | Vacuum Compatible | Not Applicable |
Configure
Basic Attributes
-
Operating Range(mm)
-
Hose fitting H1
- CHS-50SN
- H5-G2FU-AN
-
Hose fitting H2
- H5-G2F-AN
- 50PN-PLA
-
Model
- Blow Gun Set
- Coupling Type
- Hose Fitting Type
-
Type
- 01S
Filter by standard shipping days
-
- All
- 5 Days or Less
- 10 Days or Less
- 15 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
