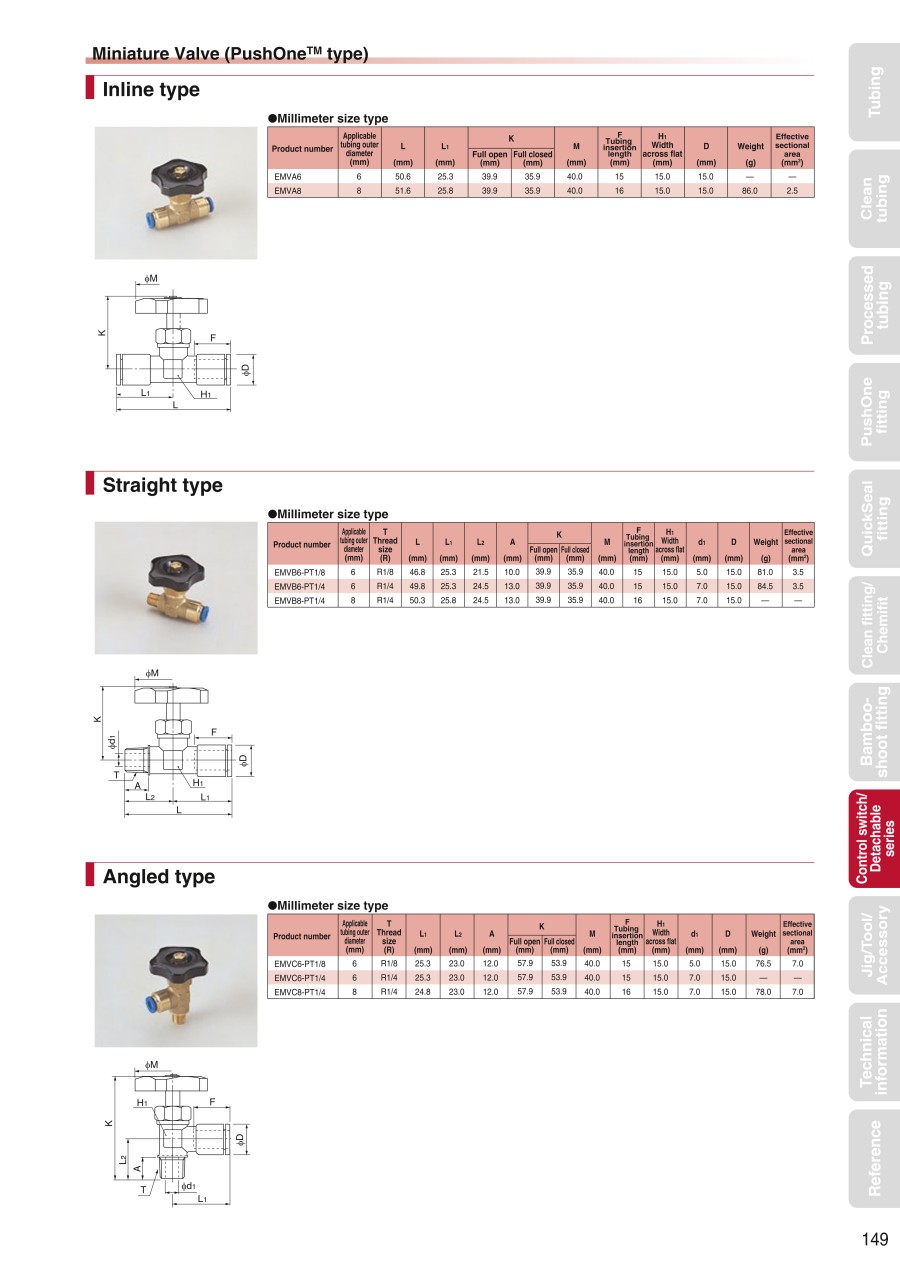

Miniature Valve Angle Type EMVC, QMVC
[Features]
· Allows for easy adjustment of flow rate.
· Large handle makes it easy to operate.
· Enables fine adjustment of flow rate.
· Valve system uses fine threads.
· Millimeter size is connected by Push One.
· No need of jigs or tools to connect the tube.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| EMVC6-PT1/4 |
| EMVC6-PT1/8 |
| EMVC8-PT1/4 |
| QMVC1N1/4-R1/4 |
| QMVC1N1/4-R1/8 |
| QMVC1N3/8-R1/4 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main Body Shape | Compatible Tube Outer Diameter | Screw Size | Effective Sectional Area (mm2) | Effective Sectional Area【classification】 (mm2) | |
|---|---|---|---|---|---|---|---|---|---|
17.84 € | 1 | 8 Days | Push One Type | 6mm | 1/4 | - | - | ||
14.19 € | 1 | 8 Days | Push One Type | 6mm | 1/8 | 7.0 | Up to 10 | ||
19.65 € | 1 | 8 Days | Push One Type | 8mm | 1/4 | 7.0 | Up to 10 | ||
17.07 € | 1 | 8 Days | Quick Seal Type | 1/4inch | 1/4 | 7.0 | Up to 10 | ||
15.17 € | 1 | 8 Days | Quick Seal Type | 1/4inch | 1/8 | - | - | ||
18.13 € | 1 | 8 Days | Quick Seal Type | 3/8inch | 1/4 | 7.0 | Up to 10 |
Loading...
Basic information
| Number of Ports | 2-Port | Switch Operation | Handle | Pipe Port Type | R |
|---|---|---|---|---|---|
| Mounting Method | Bottom | State of Operation Retention | Holding | Color of Operating Unit | Black |
Configure
Basic Attributes
-
Main Body Shape
- Push One Type
- Quick Seal Type
-
Compatible Tube Outer Diameter
- 6mm
- 8mm
- 1/4inch
- 3/8inch
-
Screw Size
- 1/8
- 1/4
-
Effective Sectional Area(mm2)
-
Effective Sectional Area【classification】(mm2)
-
Type
- EMVC
- QMVC
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- 8 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
