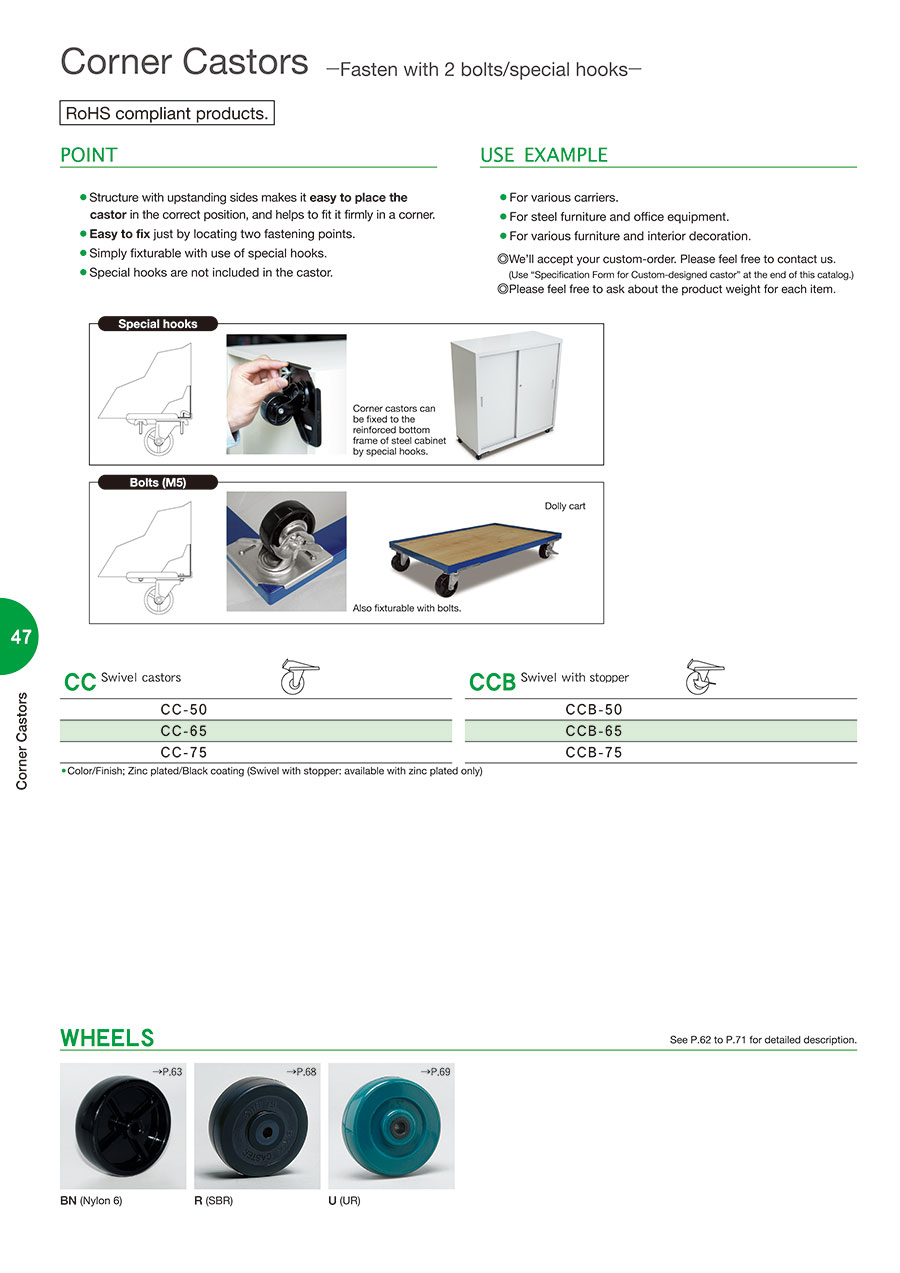

Corner Castors CC
[Features]
· With a two-surface rising structure, securely fits against corners and positioning is easy.
· Has two mounting locations, few parts and is easily installed.
· Easy mounting by hand using a special hook is also possible.
· The special hook is sold separately
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| CC-50B-BN |
| CC-50B-R |
| CC-50B-U |
| CC-50U-BN |
| CC-50U-R |
| CC-50U-U |
| CC-65B-R |
| CC-65B-U |
| CC-65U-BN |
| CC-65U-R |
| CC-65U-U |
| CC-75B-BN |
| CC-75B-R |
| CC-75B-U |
| CC-75U-BN |
| CC-75U-R |
| CC-75U-U |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Allowable Load (daN) | Wheel Material | Wheel Characteristics | Wheel Diameter (mm) | Rim Width (mm) | Metal Fitting Color (Finish) | Detailed Wheel Specifications | Wheel color | Eccentricity (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
12.39 € | 1 | 11 Days | 66 | ~35.00 | 34 | [Nylon] Nylon 6 | Abrasion Resistance / Oil Resistance / Chemical Resistance | 50 | 20 | Baked-on Black | (Core: None) | Black | 20 | ||
11.20 € | 1 | 9 Days | 66 | ~35.00 | 29 | [Synthetic Rubber] Rubber SBR | Abrasion Resistance | 50 | 20 | Baked-on Black | (Core: None) high elasticity | Black | 20 | ||
12.12 € | 1 | 9 Days | 66 | ~35.00 | 34 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | 50 | 20 | Baked-on Black | (Core: None) Shock Resistance | Green | 20 | ||
9.99 € | 8 | 10 Days | 66 | ~35.00 | 34 | [Nylon] Nylon 6 | Abrasion Resistance / Oil Resistance / Chemical Resistance | 50 | 20 | Bright Chromate Plating | (Core: None) | Black | 20 | ||
8.79 € | 1 | 9 Days | 66 | ~35.00 | 29 | [Synthetic Rubber] Rubber SBR | Abrasion Resistance | 50 | 20 | Bright Chromate Plating | (Core: None) high elasticity | Green | 20 | ||
9.69 € | 1 | 9 Days | 66 | ~35.00 | 34 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | 50 | 20 | Bright Chromate Plating | (Core: None) Shock Resistance | Green | 20 | ||
15.33 € | 1 | 9 Days | 79 | 35.01~80.00 | 39 | [Synthetic Rubber] Rubber SBR | Abrasion Resistance | 65 | 25 | Baked-on Black | (Core: None) high elasticity | Black | 21 | ||
17.30 € | 1 | 9 Days | 79 | 35.01~80.00 | 49 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | 65 | 25 | Baked-on Black | (Core: None) Shock Resistance | Green | 21 | ||
12.17 € | 8 | 10 Days | 79 | 35.01~80.00 | 49 | [Nylon] Nylon 6 | Abrasion Resistance / Oil Resistance / Chemical Resistance | 65 | 25 | Bright Chromate Plating | (Core: None) | Black | 21 | ||
12.93 € | 1 | 9 Days | 79 | 35.01~80.00 | 39 | [Synthetic Rubber] Rubber SBR | Abrasion Resistance | 65 | 25 | Bright Chromate Plating | (Core: None) high elasticity | Green | 21 | ||
14.91 € | 1 | 9 Days | 79 | 35.01~80.00 | 49 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | 65 | 25 | Bright Chromate Plating | (Core: None) Shock Resistance | Green | 21 | ||
15.45 € | 1 | 11 Days | 89 | 35.01~80.00 | 58 | [Nylon] Nylon 6 | Abrasion Resistance / Oil Resistance / Chemical Resistance | 75 | 25 | Baked-on Black | (Core: None) | Black | 21 | ||
16.15 € | 1 | 9 Days | 89 | 35.01~80.00 | 49 | [Synthetic Rubber] Rubber SBR | Abrasion Resistance | 75 | 27 | Baked-on Black | (Core: None) high elasticity | Black | 21 | ||
18.21 € | 1 | 9 Days | 89 | 35.01~80.00 | 58 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | 75 | 25 | Baked-on Black | (Core: None) Shock Resistance | Green | 21 | ||
13.03 € | 8 | 10 Days | 89 | 35.01~80.00 | 58 | [Nylon] Nylon 6 | Abrasion Resistance / Oil Resistance / Chemical Resistance | 75 | 25 | Bright Chromate Plating | (Core: None) | Black | 21 | ||
13.77 € | 1 | 9 Days | 89 | 35.01~80.00 | 49 | [Synthetic Rubber] Rubber SBR | Abrasion Resistance | 75 | 27 | Bright Chromate Plating | (Core: None) high elasticity | Green | 21 | ||
15.80 € | 1 | 9 Days | 89 | 35.01~80.00 | 58 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | 75 | 25 | Bright Chromate Plating | (Core: None) Shock Resistance | Green | 21 |
Loading...
Basic information
| Caster Type | Plate Type Universal / Corner Caster | Stopper | NA | Fitting Material | Steel |
|---|---|---|---|---|---|
| Mounting Hole Type | Long Hole | Application | Commercial Facilities Display / Streamlining of Logistics, Hand Truck / Steel shelve, woodwork furniture | Plate Size (For Corners)(mm) | 113×76×37 |
| Mounting Hole Pitch (For Corners)(mm) | 73.5×103.5×25.0 | Specifications | The wheels on earth | Floor Protection | No Floor Protection |
| Bearing | NA |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- ~35.00
- 35.01~80.00
-
Allowable Load(daN)
-
Wheel Material
- Synthetic Rubber
- Nylon
- Urethane
- Synthetic Rubber
-
Wheel Characteristics
- Abrasion Resistance
- Gasoline Resistance (Light Oil included)
- Oil Resistance
- Chemical Resistance
-
Wheel Diameter(mm)
-
Rim Width(mm)
-
Metal Fitting Color (Finish)
- Baked-on Black
- Bright Chromate Plating
-
Detailed Wheel Specifications
-
Wheel color
- Black
- Green
-
Eccentricity(mm)
- 20
- 21
-
Type
- CC
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- 9 Days or Less
- 10 Days or Less
- 11 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
