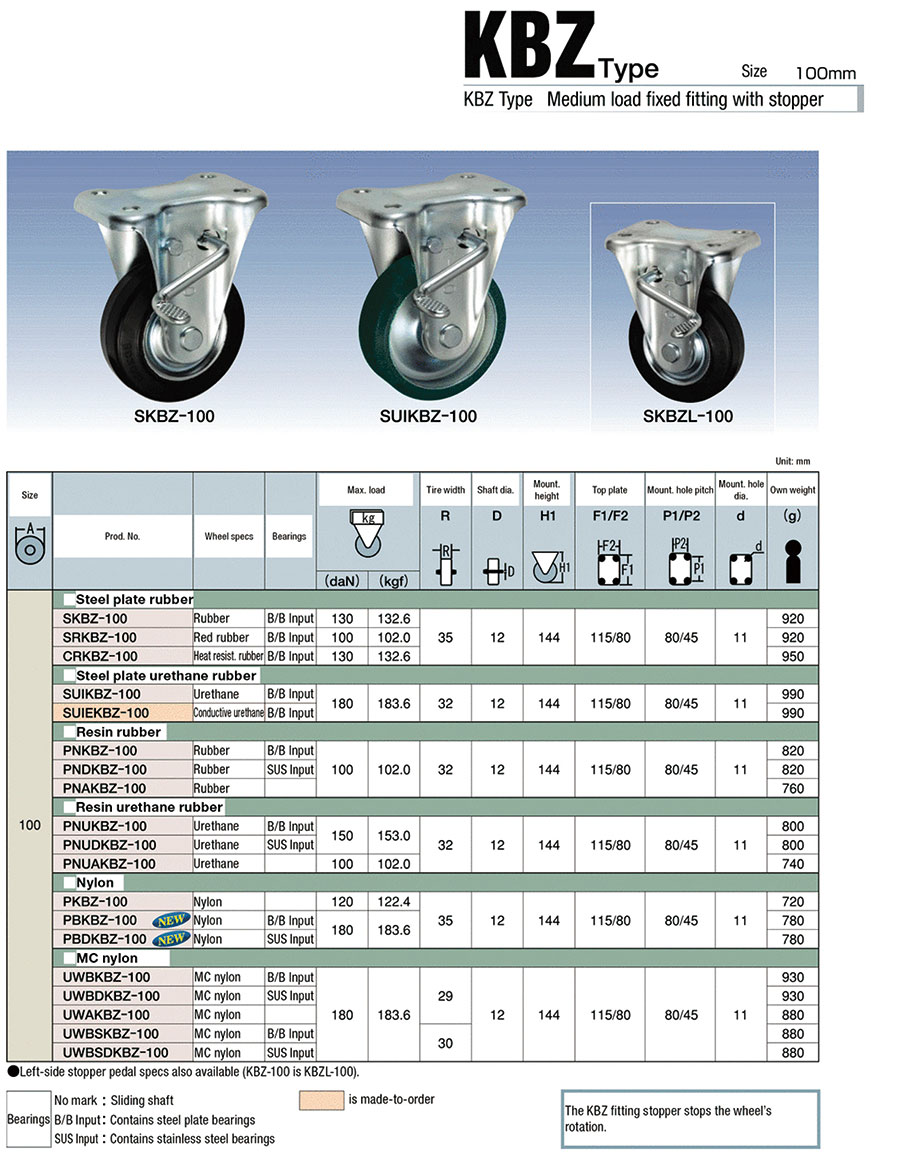

Castors for Medium Loads (with Rotation Stopper) KBZtype Size 100 mm

Castors for Medium Loads (with Rotation Stopper) KBZtype Size 100 mm

GIFU SANKEN KOGYO

GIFU SANKEN KOGYO

[Features]
· A directionally-fixed type caster for medium loads that includes a stopper for stopping the rotation of the wheel

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
CRKBZ-100
KBZ-100
KBZL-100
PBDKBZ-100
PBKBZ-100
PKBZ-100
PNAKBZ-100
PNDKBZ-100
PNKBZ-100
PNUAKBZ-100
PNUDKBZ-100
PNUKBZ-100
SKBZ-100
SRKBZ-100
SUIKBZ-100
UWAKBZ-100
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Caster Type Mounting Height H1
(mm) 		Load Range
(daN) 		Maximum Load Capacity
(daN) 		Wheel specification Wheel Characteristics Mounting Hole Type Shaft Diameter D
(mm) 		Tire width R
(mm) 		Stopper Pedal Specifications Metal Fitting Specifications Shaft Bearing

46.98 €

1 9 Days Plate Type Fixed14480.01~140.00130[Synthetic Rubber] Heat Resistant RubberAbrasion Resistance / Chemical ResistanceRound Hole1235RightThe wheels on earthSteel Plate with Bearing

21.57 €

1 9 Days Plate Type Fixed / Related Components-140.01~220.00180-----RightMetal Fitting Only - No Wheels-

21.57 €

1 9 Days Plate Type Fixed / Related Components-140.01~220.00180-----LeftMetal Fitting Only - No Wheels-

58.06 €

1 9 Days Plate Type Fixed144140.01~220.00180[Nylon] NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold ResistanceRound Hole1235RightThe wheels on earthStainless Steel Bearing

38.47 €

1 9 Days Plate Type Fixed144140.01~220.00180[Nylon] NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold ResistanceRound Hole1235RightThe wheels on earthSteel Plate with Bearing

33.04 €

1 9 Days Plate Type Fixed14480.01~140.00120[Nylon] NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold ResistanceRound Hole1235RightThe wheels on earthSlide Bearing

32.91 €

1 9 Days Plate Type Fixed14480.01~140.00100[Synthetic Rubber] RubberAbrasion ResistanceRound Hole1232RightThe wheels on earthSlide Bearing

55.77 €

1 9 Days Plate Type Fixed14480.01~140.00100[Synthetic Rubber] RubberAbrasion ResistanceRound Hole1232RightThe wheels on earthStainless Steel Bearing

34.61 €

1 9 Days Plate Type Fixed14480.01~140.00100[Synthetic Rubber] RubberAbrasion ResistanceRound Hole1232RightThe wheels on earthSteel Plate with Bearing

43.04 €

1 9 Days Plate Type Fixed14480.01~140.00100[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole1232RightThe wheels on earthSlide Bearing

62.57 €

1 9 Days Plate Type Fixed144140.01~220.00150[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole1232RightThe wheels on earthStainless Steel Bearing

46.08 €

1 9 Days Plate Type Fixed144140.01~220.00150[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole1232RightThe wheels on earthSteel Plate with Bearing

33.89 €

1 9 Days Plate Type Fixed14480.01~140.00130[Synthetic Rubber] RubberAbrasion ResistanceRound Hole1235RightThe wheels on earthSteel Plate with Bearing

43.14 €

1 9 Days Plate Type Fixed14480.01~140.00100[Synthetic Rubber] Red rubberAbrasion ResistanceRound Hole1235RightThe wheels on earthSteel Plate with Bearing

42.40 €

1 10 Days Plate Type Fixed144140.01~220.00180[Urethane] UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole1232RightThe wheels on earthSteel Plate with Bearing

74.79 €

1 14 Days Plate Type Fixed144140.01~220.00180[Nylon] MC NylonAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold ResistanceRound Hole1229RightThe wheels on earthSlide Bearing

Loading...

  1. 1

Basic information

Stopper With Rotation Stopper Fitting Material Steel Mounting Hole Pitch Longitudinal direction(mm) 80
Mounting Hole Pitch Transverse Direction(mm) 45 Top Plate F1(mm) 115 Top Plate F2(mm) 80
Size A or outer diameter A of the tire(mm) 100 Load Category Light/Medium Load

Configure

Clear all

16Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Caster Type

    • Plate Type Fixed
    • Related Components

    Clear

  • Mounting Height H1(mm)

    • 144

    Clear

  • Load Range(daN)

    • 80.01~140.00
    • 140.01~220.00

    Clear

  • Maximum Load Capacity(daN)

    • 100
    • 120
    • 130
    • 150
    • 180

    Clear

  • Wheel specification

    • Synthetic Rubber
      • Heat Resistant Rubber
      • Red rubber
      • Rubber
    • Nylon
      • MC Nylon
      • Nylon
    • Urethane
      • Urethane

    Clear

  • Wheel Characteristics

    • Abrasion Resistance
    • Gasoline Resistance (Light Oil included)
    • Oil Resistance
    • Chemical Resistance
    • Heat-Resistance
    • Cold Resistance

    Clear

  • Mounting Hole Type

    • Round Hole

    Clear

  • Shaft Diameter D(mm)

    • 12

    Clear

  • Tire width R(mm)

    • 29
    • 32
    • 35

    Clear

  • Stopper Pedal Specifications

    • Left
    • Right

    Clear

  • Metal Fitting Specifications

    • Metal Fitting Only - No Wheels
    • The wheels on earth

    Clear

  • Shaft Bearing

    • Slide Bearing
    • Stainless Steel Bearing
    • Steel Plate with Bearing

    Clear

  • Type

    • KBZ

    Clear

Filter by standard shipping days

    • All
    • 9 Days or Less
    • 10 Days or Less
    • 14 Days or Less
