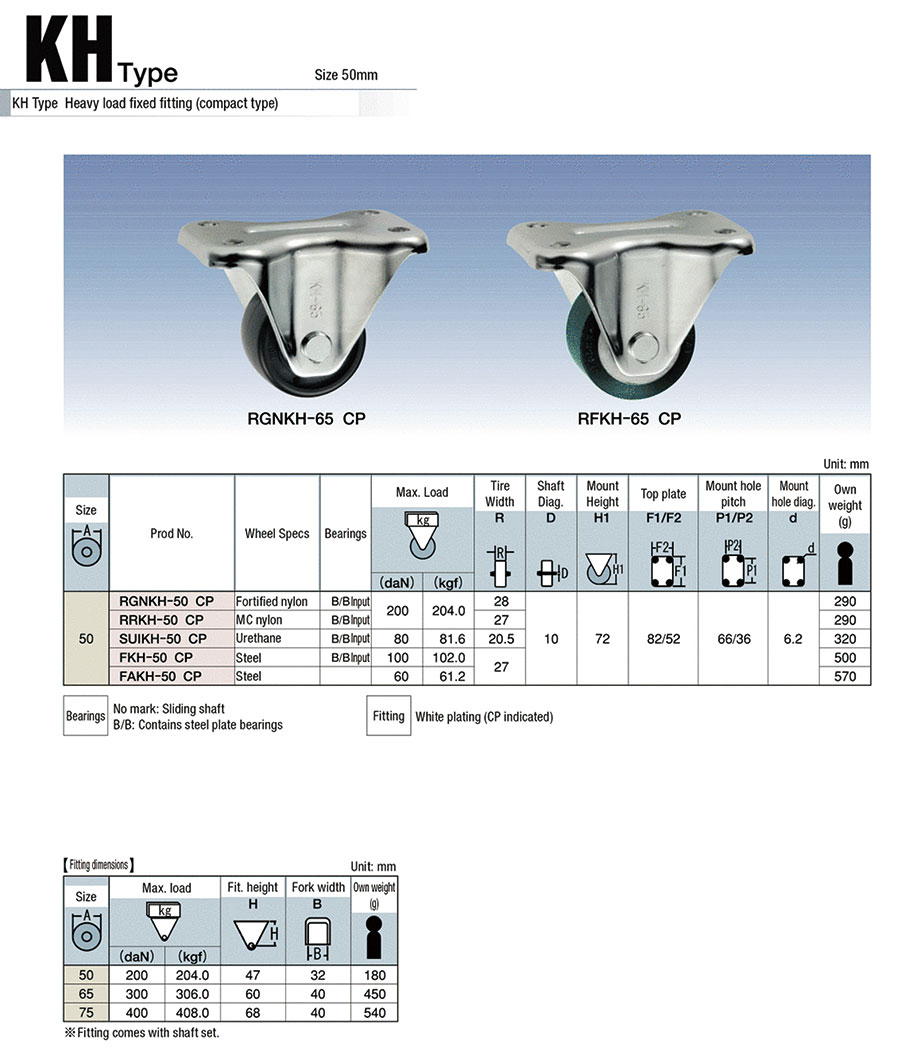

Castors for Heavy Loads (Compact Type) Fixed KHtype Size 50 mm
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| FAKH-50-CP |
| FKH-50-CP |
| KH-50-CP |
| RGNKH-50-CP |
| RRKH-50-CP |
| SUIKH-50-CP |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Caster Type | Mounting Height H1 (mm) | Load Range (daN) | Maximum Load Capacity (daN) | Wheel specification | Wheel Characteristics | Mounting Hole Type | Shaft Diameter D (mm) | Tire width R (mm) | Metal Fitting Specifications | Shaft Bearing | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
22.38 € | 1 | 9 Days | Plate Type Fixed | 72 | 35.01~80.00 | 60 | Iron | - | Round Hole | 10 | 27 | The wheels on earth | Slide Bearing | ||
30.58 € | 1 | 9 Days | Plate Type Fixed | 72 | 80.01~140.00 | 100 | Iron | - | Round Hole | 10 | 27 | The wheels on earth | Steel Plate with Bearing | ||
9.32 € | 1 | 10 Days | Plate Type Fixed / Related Components | - | 140.01~220.00 | 200 | - | - | - | - | - | Metal Fitting Only - No Wheels | - | ||
19.47 € | 1 | 10 Days | Plate Type Fixed | 72 | 140.01~220.00 | 200 | [Nylon] Reinforced Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold Resistance | Round Hole | 10 | 28 | The wheels on earth | Steel Plate with Bearing | ||
39.08 € | 1 | 9 Days | Plate Type Fixed | 72 | 140.01~220.00 | 200 | [Nylon] MC Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance | Round Hole | 10 | 27 | The wheels on earth | Steel Plate with Bearing | ||
18.69 € | 1 | 10 Days | Plate Type Fixed | 72 | 35.01~80.00 | 80 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | Round Hole | 10 | 20.5 | The wheels on earth | Steel Plate with Bearing |
Loading...
Basic information
| Stopper | NA | Fitting Material | Steel | Mounting Hole Pitch Longitudinal direction(mm) | 66 |
|---|---|---|---|---|---|
| Mounting Hole Pitch Transverse Direction(mm) | 36 | Top Plate F1(mm) | 85 | Top Plate F2(mm) | 52 |
| Size A or outer diameter A of the tire(mm) | 50 | Load Category | Light/Medium Load |
Configure
Basic Attributes
-
Caster Type
- Plate Type Fixed
- Related Components
-
Mounting Height H1(mm)
-
Load Range(daN)
- 35.01~80.00
- 80.01~140.00
- 140.01~220.00
-
Maximum Load Capacity(daN)
-
Wheel specification
- Nylon
- Urethane
- Iron
- Nylon
-
Wheel Characteristics
- Abrasion Resistance
- Gasoline Resistance (Light Oil included)
- Oil Resistance
- Chemical Resistance
- Heat-Resistance
- Cold Resistance
-
Mounting Hole Type
- Round Hole
-
Shaft Diameter D(mm)
-
Tire width R(mm)
-
Metal Fitting Specifications
- Metal Fitting Only - No Wheels
- The wheels on earth
-
Shaft Bearing
- Slide Bearing
- Steel Plate with Bearing
-
Type
- KH
Filter by standard shipping days
-
- All
- 9 Days or Less
- 10 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
