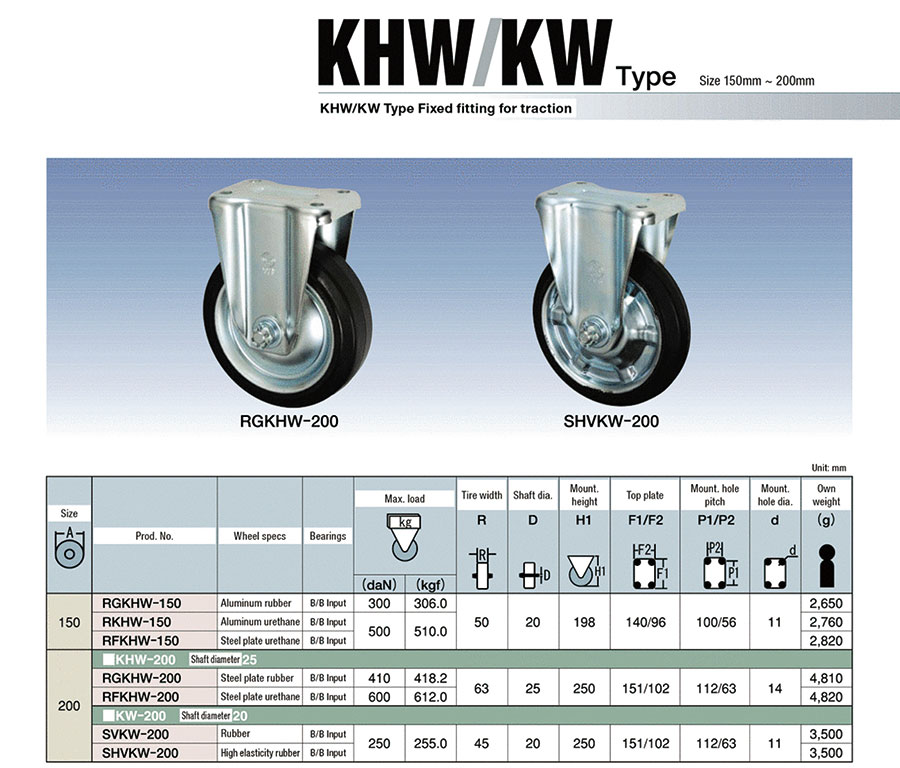

Fixed Castors for Towing KHW / KWtype, Size 150 mm to 200 mm.

Fixed Castors for Towing KHW / KWtype, Size 150 mm to 200 mm.

GIFU SANKEN KOGYO

GIFU SANKEN KOGYO

Directional steering wheel for towing. Towing caster with high impact resistance and excellent durability even with heavy loads.

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
KHW-150
KHW-200-25
KW-200-20
RFKHW-150
RFKHW-200
RGKHW-150
RGKHW-200
RKHW-150
SHVKW-200
SVKW-200
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Caster Type Mounting Height H1
(mm) 		Load Range
(daN) 		Maximum Load Capacity
(daN) 		Wheel specification Wheel Characteristics Mounting Hole Type Mounting Hole Pitch Longitudinal direction
(mm) 		Mounting Hole Pitch Transverse Direction
(mm) 		Top Plate F1
(mm) 		Top Plate F2
(mm) 		Shaft Diameter D
(mm) 		Size A or outer diameter A of the tire
(mm) 		Tire width R
(mm) 		Metal Fitting Specifications Shaft Bearing Shaft Diameter D
(mm)

47.28 €

1 10 Days Plate Type Fixed / Related Components-485.01~750.00550---1005614096-150-Metal Fitting Only - No Wheels--

56.43 €

1 10 Days Plate Type Fixed / Related Components-485.01~750.00660---1126315110225200-Metal Fitting Only - No Wheels-25

44.52 €

1 10 Days Plate Type Fixed / Related Components-320.01~485.00420---1126315110220200-Metal Fitting Only - No Wheels-20

122.70 €

1 10 Days Plate Type Fixed198485.01~750.00500[Urethane] Urethane made of steel plateAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole10056140962015050The wheels on earthSteel Plate with Bearing20

149.09 €

1 10 Days Plate Type Fixed250485.01~750.00600[Urethane] Urethane made of steel plateAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole112631511022520063The wheels on earthSteel Plate with Bearing25

94.77 €

1 10 Days Plate Type Fixed198220.01~320.00300[Synthetic Rubber] Aluminum RubberAbrasion ResistanceRound Hole10056140962015050The wheels on earthSteel Plate with Bearing20

133.85 €

1 10 Days Plate Type Fixed250320.01~485.00410[Synthetic Rubber] Rubber made of steel plateAbrasion ResistanceRound Hole112631511022520063The wheels on earthSteel Plate with Bearing25

93.67 €

1 10 Days Plate Type Fixed198485.01~750.00500[Urethane] Aluminum UrethaneAbrasion Resistance / Gasoline Resistance (Light Oil included) / Oil ResistanceRound Hole10056140962015050The wheels on earthSteel Plate with Bearing20

92.01 €

1 10 Days Plate Type Fixed250220.01~320.00250[Synthetic Rubber] High impact rubberAbrasion ResistanceRound Hole112631511022020045The wheels on earthSteel Plate with Bearing20

116.36 €

1 15 Days Plate Type Fixed250220.01~320.00250[Synthetic Rubber] RubberAbrasion ResistanceRound Hole112631511022020045The wheels on earthSteel Plate with Bearing20

Loading...

  1. 1

Basic information

Stopper NA Fitting Material Steel Load Category Heavy Load

Configure

Clear all

10Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Caster Type

    • Plate Type Fixed
    • Related Components

    Clear

  • Mounting Height H1(mm)

    • 198
    • 250

    Clear

  • Load Range(daN)

    • 220.01~320.00
    • 320.01~485.00
    • 485.01~750.00

    Clear

  • Maximum Load Capacity(daN)

    • 250
    • 300
    • 410
    • 420
    • 500
    • 550
    • 600
    • 660

    Clear

  • Wheel specification

    • Synthetic Rubber
      • Aluminum Rubber
      • High impact rubber
      • Rubber
      • Rubber made of steel plate
    • Urethane
      • Aluminum Urethane
      • Urethane made of steel plate

    Clear

  • Wheel Characteristics

    • Abrasion Resistance
    • Gasoline Resistance (Light Oil included)
    • Oil Resistance

    Clear

  • Mounting Hole Type

    • Round Hole

    Clear

  • Mounting Hole Pitch Longitudinal direction(mm)

    • 100
    • 112

    Clear

  • Mounting Hole Pitch Transverse Direction(mm)

    • 56
    • 63

    Clear

  • Top Plate F1(mm)

    • 140
    • 151

    Clear

  • Top Plate F2(mm)

    • 96
    • 102

    Clear

  • Shaft Diameter D(mm)

    • 20
    • 25

    Clear

  • Size A or outer diameter A of the tire(mm)

    • 150
    • 200

    Clear

  • Tire width R(mm)

    • 45
    • 50
    • 63

    Clear

  • Metal Fitting Specifications

    • Metal Fitting Only - No Wheels
    • The wheels on earth

    Clear

  • Shaft Bearing

    • Steel Plate with Bearing

    Clear

  • Shaft Diameter D(mm)

    • 20
    • 25

    Clear

  • Type

    • KHW/KW

    Clear

Filter by standard shipping days

    • All
    • 10 Days or Less
    • 15 Days or Less

    Reset
