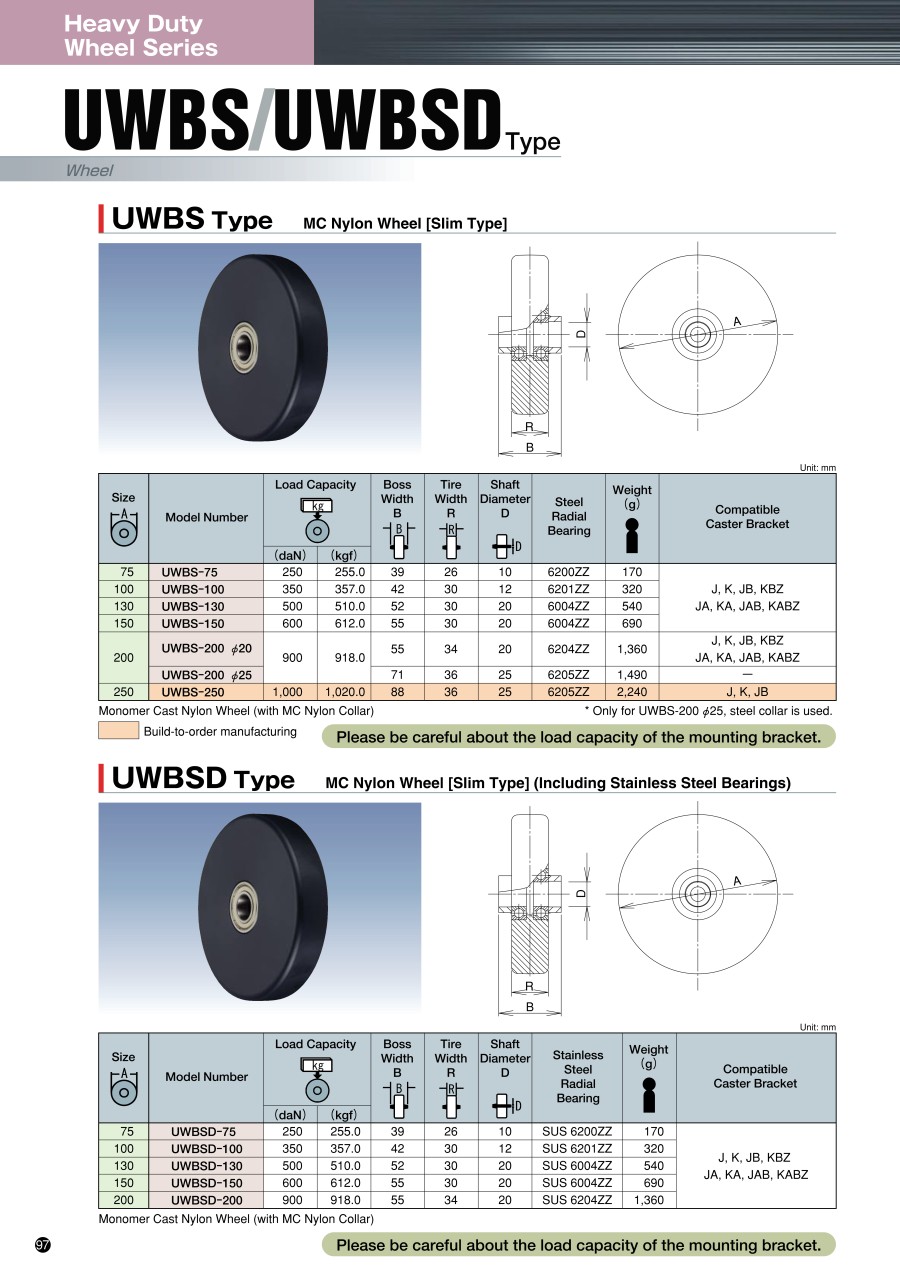

UWBS Type MC Nylon Wheel [Slim Type]
![UWBS Type MC Nylon Wheel [Slim Type]](http://uk.misumi-ec.com/linked/material/mech/GIF1/PHOTO/UWBS.jpg?$product_main$)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| UWBS-75 |
| UWBS-100 |
| UWBS-130 |
| UWBS-150 |
| UWBS-200-55 |
| UWBS-200-71 |
| UWBS-250 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel O.D. (mm) | Wheel Width (mm) | Hole Diameter (mm) | Hub Width (mm) | |
|---|---|---|---|---|---|---|---|---|
46.44 € | 1 | 22 Days | 75 | 26 | 10 | 39 | ||
59.64 € | 1 | 22 Days | 100 | 30 | 12 | 42 | ||
97.55 € | 1 | 22 Days | 130 | 30 | 20 | 52 | ||
82.17 € | 1 | 22 Days | 150 | 30 | 20 | 55 | ||
129.29 € | 1 | 22 Days | 200 | 34 | 20 | 55 | ||
135.49 € | 1 | 22 Days | 200 | 36 | 25 | 71 | ||
255.49 € | 1 | 19 Days | 250 | 36 | 25 | 88 |
Loading...
Basic information
| Wheel Type | Integrated | Wheel Material | Nylon | Bearing | Available |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
