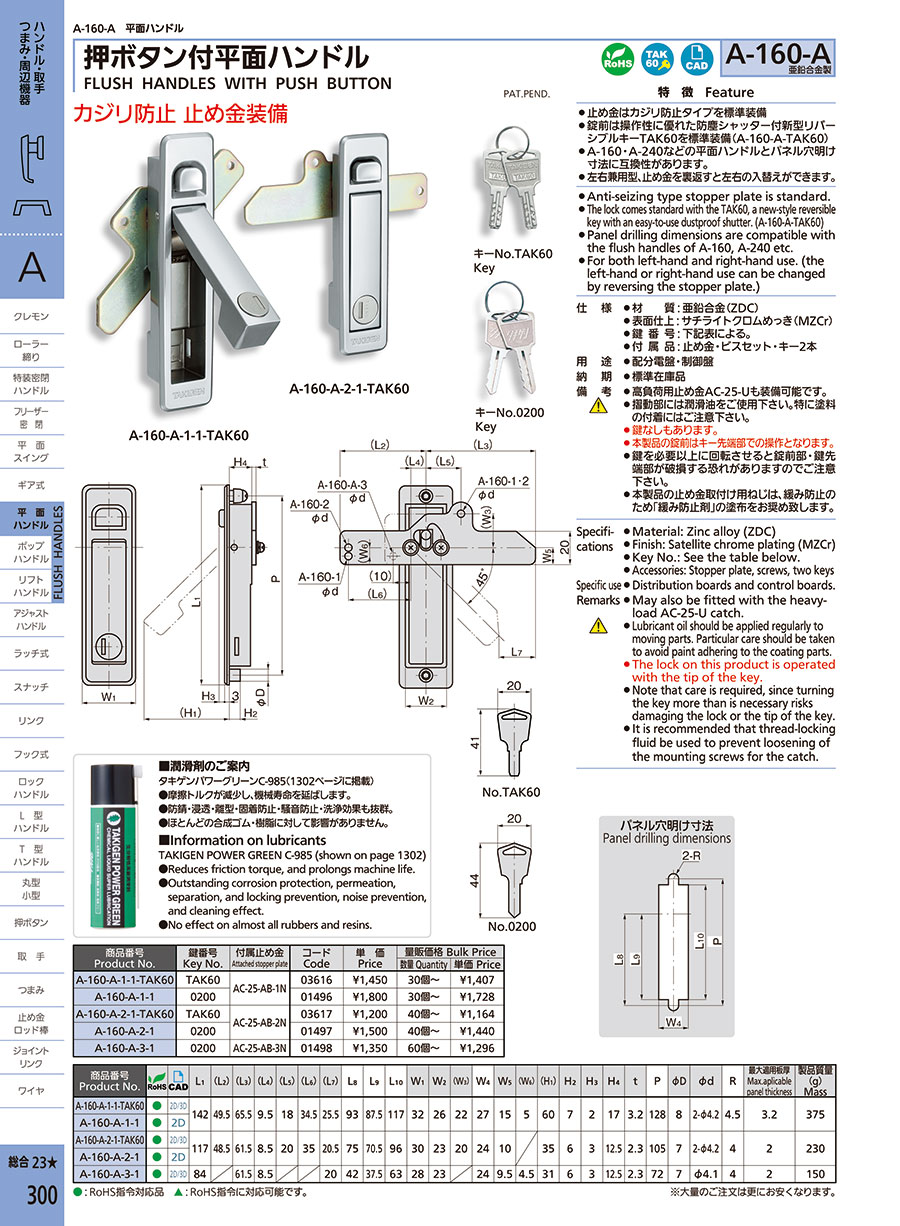

Flat Handle with Push Button A-160-A
- Volume Discount
· Standard equipped clasp is an anti-scratch type.
· A new reversible key with a dust proof shutter with excellent operability, TAK60 is standard equipment. (A-160-A-TAK60).
· A-160· A-240, etc. flat handle and panel drilling dimensions are compatible.
· Left/right combination type, exchange left and right by turning over the stopper.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| A-160-A-1-1 |
| A-160-A-1-1-TAK60 |
| A-160-A-1-2 |
| A-160-A-2-1 |
| A-160-A-2-1-TAK60 |
| A-160-A-3-1 |
| A-160-A-3-2 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Finish | Number of Keys | Compatible Plate Thickness (mm) | Accessory | Overall Length (mm) | Overall Width (mm) | Full height (mm) | Product Code | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
30.25 € | 1 | Available |
Same day
Stock | Satin Nickel Chrome Plating (MZCr) | 0200 | 3.2 | Clasp and screw Set Key -2 | 142 | 32 | 25.2 | 01496 | |
30.25 € | 1 | Available |
Same day
Stock | Satin Nickel Chrome Plating (MZCr) | TAK60 | 3.2 | Clasp and screw Set Key -2 | 142 | 32 | 25.2 | 03616 | |
21.40 € | 1 | Available |
Same day
Stock | Chrome Plating | No Key | 3.2 | Clasp | 142 | 32 | 25.2 | 01682 | |
33.26 € | 1 | 6 Days | Satin Nickel Chrome Plating (MZCr) | 0200 | 2 | Clasp and screw Set Key -2 | 117 | 30 | 20.8 | 01497 | ||
25.23 € | 1 | Available |
Same day
Stock | Satin Nickel Chrome Plating (MZCr) | TAK60 | 2 | Clasp and screw Set Key -2 | 117 | 30 | 20.8 | 03617 | |
21.35 € | 1 | Available |
Same day
Stock | Satin Nickel Chrome Plating (MZCr) | 0200 | 2 | Clasp and screw Set Key -2 | 84 | 28 | 20.8 | 01498 | |
18.57 € | 1 | 6 Days | Chrome Plating | No Key | 2 | Clasp | 84 | 28 | 20.8 | 01376 |
Loading...
Basic information
| Material | Zinc Alloy (ZDC) |
|---|
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Finish
- Chrome Plating
- Satin Nickel Chrome Plating (MZCr)
-
Number of Keys
-
Compatible Plate Thickness(mm)
- 2
- 3.2
-
Accessory
- Clasp and screw Set Key -2
- Clasp
-
Overall Length(mm)
-
Overall Width(mm)
-
Full height(mm)
-
Type
- A
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
