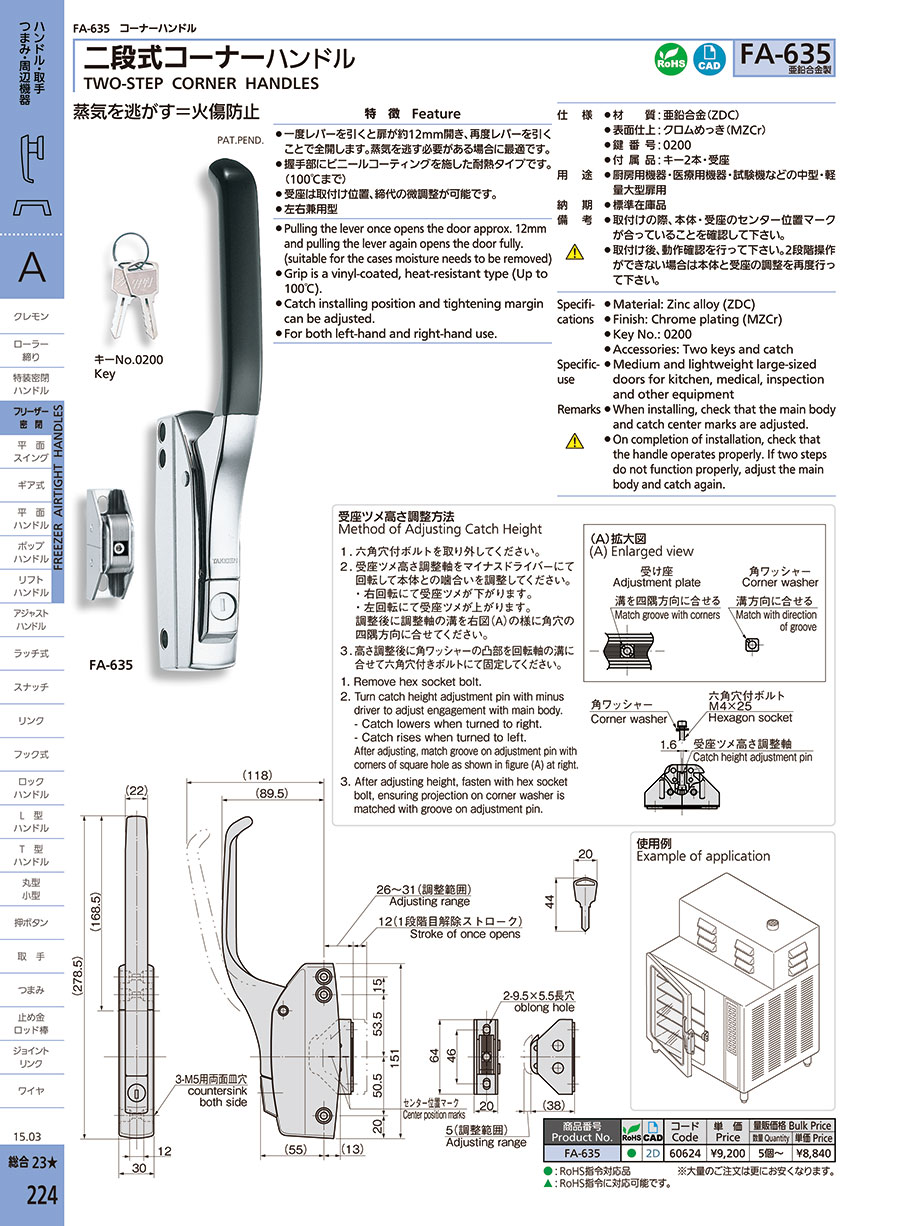

Two-Stage Corner Handle FA-635
[Features]
· Once the lever is pulled, the door opens about 12 mm and then fully opens by pulling the lever again.
· It is ideal for when you need to escape steam.
· Heat resistant type with vinyl coating on the hand grip (up to 100° C).
· It is possible to finely adjust the mounting position.
· For both left hand and right hand use
· Once the lever is pulled, the door opens about 12 mm and then fully opens by pulling the lever again.
· It is ideal for when you need to escape steam.
· Heat resistant type with vinyl coating on the hand grip (up to 100° C).
· It is possible to finely adjust the mounting position.
· For both left hand and right hand use
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
FA-635
Basic information
| Application | For medium/lightweight large door of kitchen equipment/medical equipment/test equipment, etc. | Type | Handle body | Material | Zinc Alloy |
|---|---|---|---|---|---|
| Finishing | Chrome Plating | Selfishly | Left/Right Combination Type | Number of Keys | 0200 |
| Accessory | Two keys, Receiving Seat | Overall Length(mm) | 278.5 | Overall Width(mm) | 30 |
| Full height(mm) | 118 | Product Code | 60624 |
This page is Two-Stage Corner Handle FA-635, part number FA-635.
You can find the detail information about specifications and dimensions on part number FA-635.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
