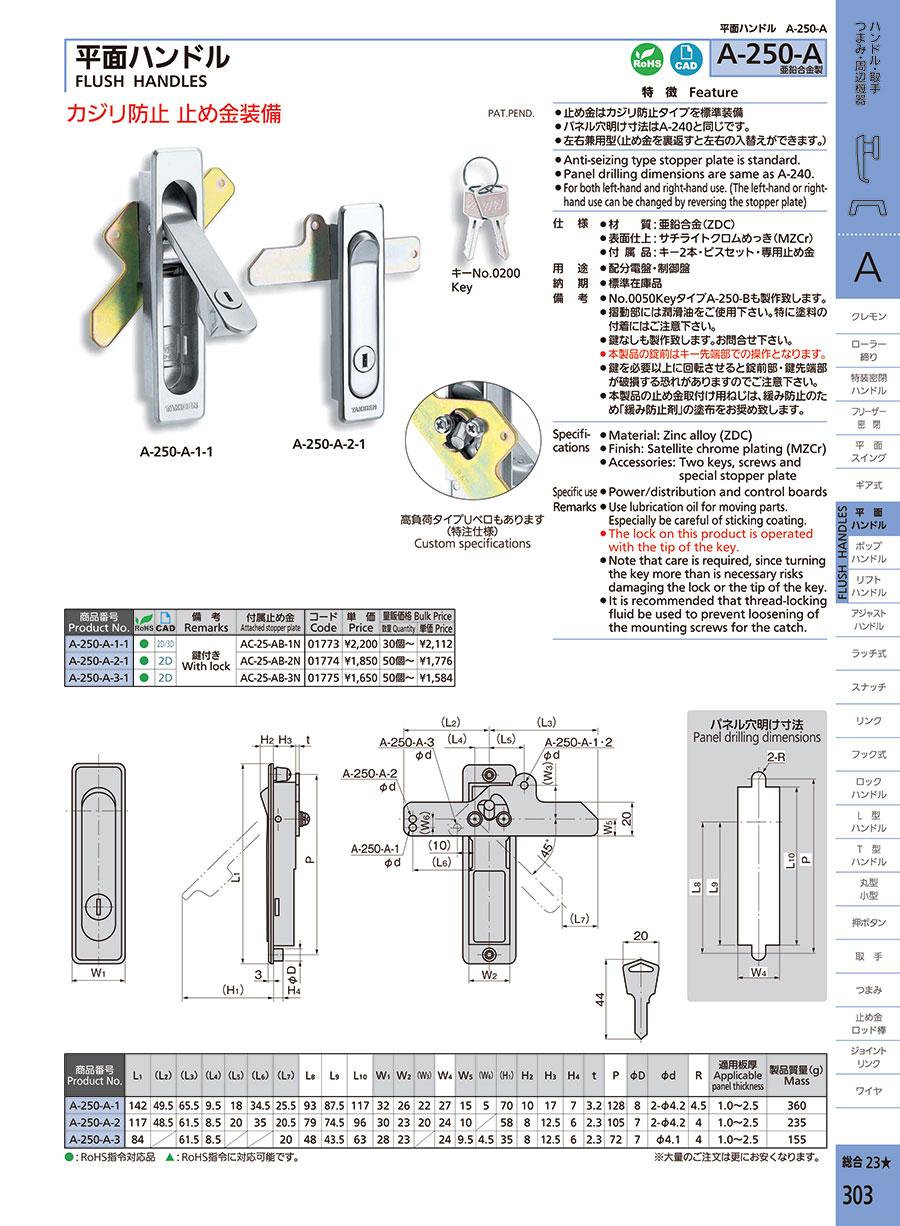

Flat Handle A-250-A
[Features]
· Standard equipped clasp is an anti-scratch type.
· Panel drilling dimensions are the same as A-240.
· Left and right hand dual use (exchange left and right by turning over the stopper)
· Standard equipped clasp is an anti-scratch type.
· Panel drilling dimensions are the same as A-240.
· Left and right hand dual use (exchange left and right by turning over the stopper)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| A-250-A-1-1 |
| A-250-A-2-1 |
| A-250-A-3-1 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Overall Length (mm) | Overall Width (mm) | Full height (mm) | Product Code | |
|---|---|---|---|---|---|---|---|---|
34.84 € | 1 |
Same day
Stock | 142 | 32 | 30.2 | 01773 | ||
29.89 € | 1 |
Same day
Stock | 117 | 30 | 22.8 | 01774 | ||
28.85 € | 1 | 6 Days | 84 | 28 | 22.8 | 01775 |
Loading...
Basic information
| Material | Zinc Alloy | Finish | Satin Nickel Plating | Number of Keys | 0200 |
|---|---|---|---|---|---|
| Compatible Plate Thickness(mm) | 2.5 | Accessory | Clasp |
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
