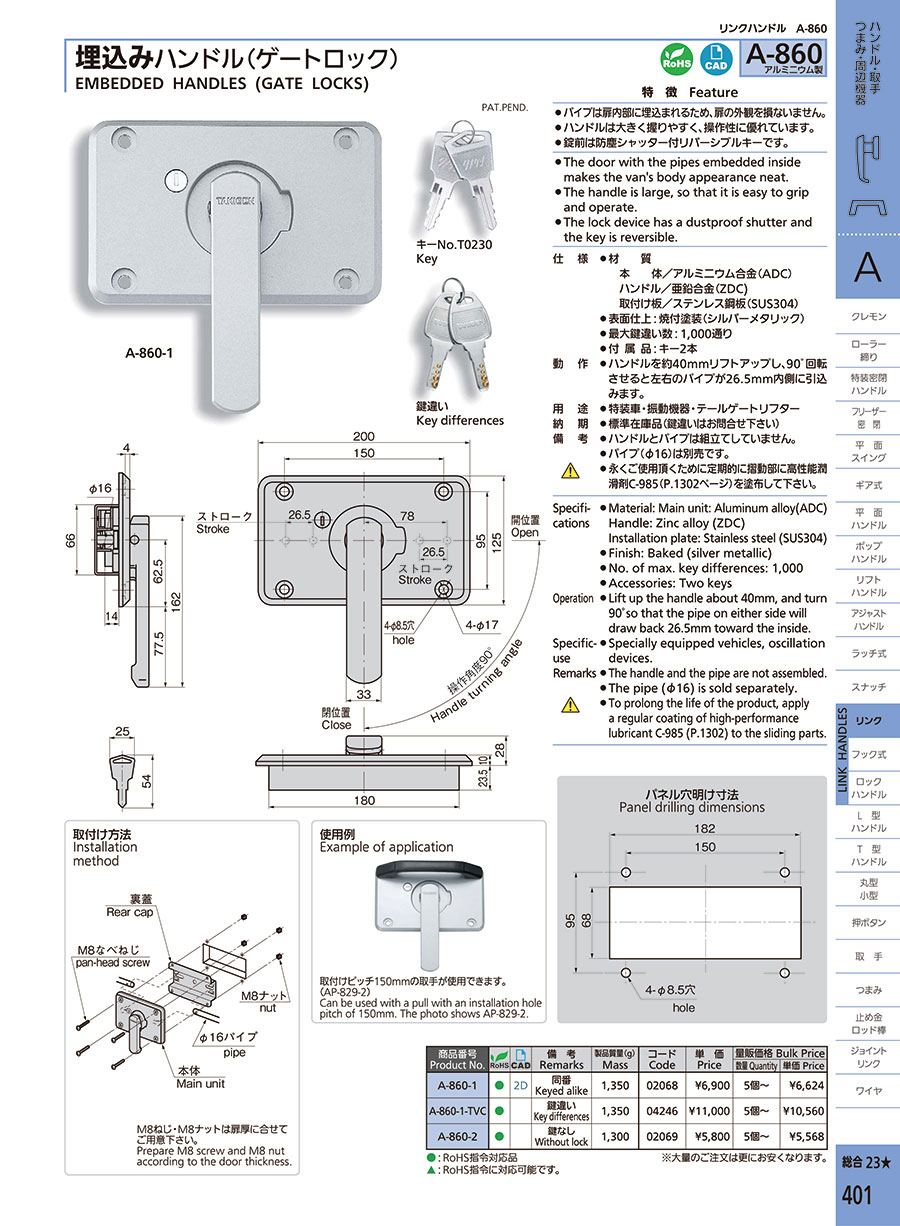

Embedded Handle A-860
[Features]
· Since the pipe is embedded inside the door, it does not disfigure the appearance of the door.
· Handle is big and easy to grasp with excellent operability.
· Lock has a reversible key and a dust-proof shutter
· Since the pipe is embedded inside the door, it does not disfigure the appearance of the door.
· Handle is big and easy to grasp with excellent operability.
· Lock has a reversible key and a dust-proof shutter
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Application | Specially-equipped vehicle, vibration equipment, tailgate lifter | Keyhole | Specially-equipped vehicle, vibration equipment, tailgate lifter | Main body length(mm) | 202.5 |
|---|---|---|---|---|---|
| Main Body Width(mm) | 200 | Depth(mm) | 51.5 | Material | Main body: Aluminum Alloy (Aluminium Die Cast (ADC)) / Handle: Zinc Alloy (ZDC) / Mounting plate: Stainless Steel plate (EN 1.4301 Equiv.) |
| Surface Finish | Baked Paint Finish | Collar | Silver metallic | Type | Handle body |
| Note | The pipe (φ16) is sold separately |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
