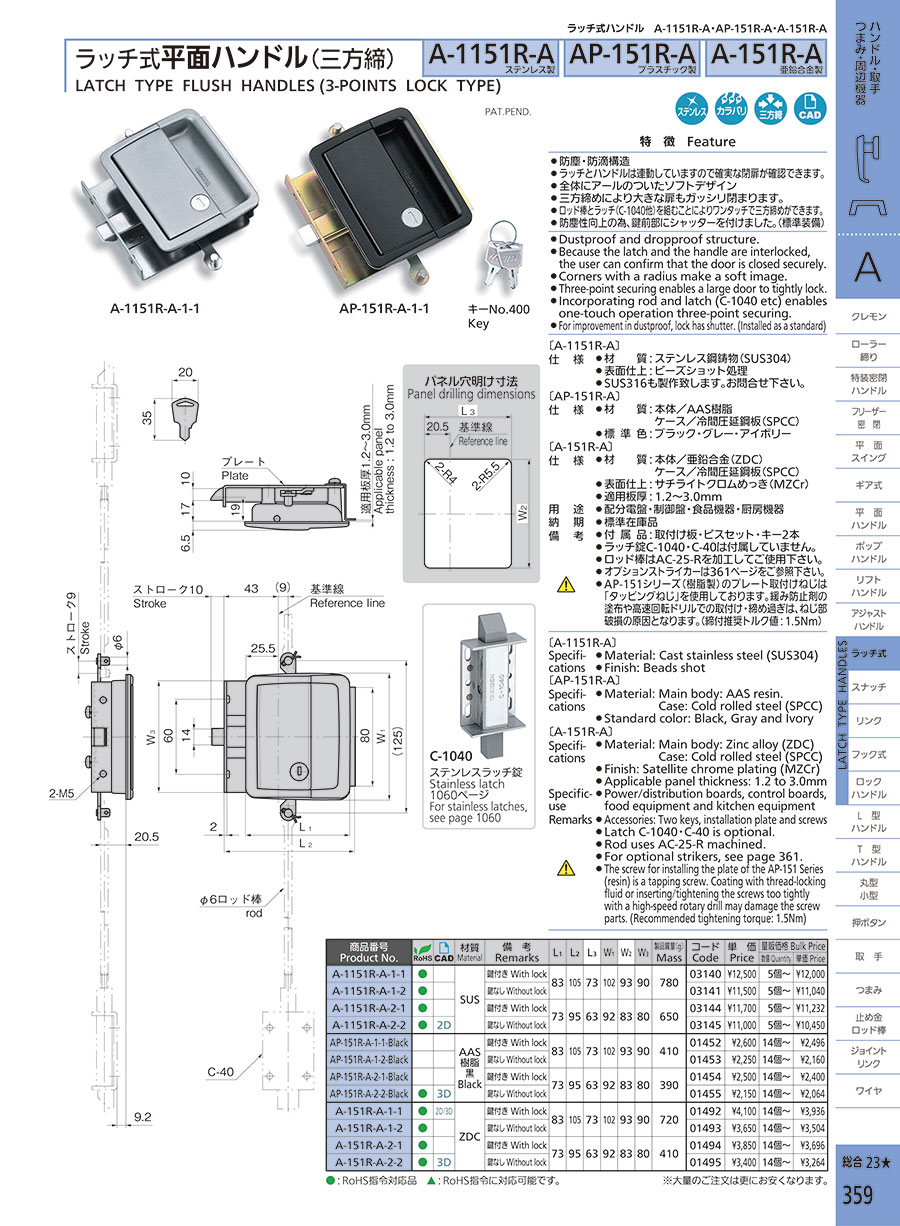

Stainless Steel Latch Type Flat Handle A-1151R-A

Stainless Steel Latch Type Flat Handle A-1151R-A
[Features]
· Dust-proof and drip-proof structure.
· Since the latch and the handle are interlocked, it is possible to confirm closing of the door.
· Soft fully curved design.
· With three way tightening, even big doors can be tightly closed.
· Rod and latch (C-1040, etc.) combinations can enable three way tightening with one touch.
· To improve dust proof properties, a shutter is attached to the front of the key (standard equipment)

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
A-1151R-A-1-1
A-1151R-A-1-2
A-1151R-A-2-1
A-1151R-A-2-2
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Key Main Body Width
(mm)
Product Code

151.94 €

1 10 Days 40010203140

147.14 €

1 10 Days No Key10203141

146.18 €

1 10 Days 4009203144

122.22 €

1 10 Days No Key9203145

Loading...

  1. 1

Basic information

Depth(mm) 33.5 Compatible Plate Thickness 3 Material Stainless Steel Casting
Surface Finish Bead Shot Treatment
