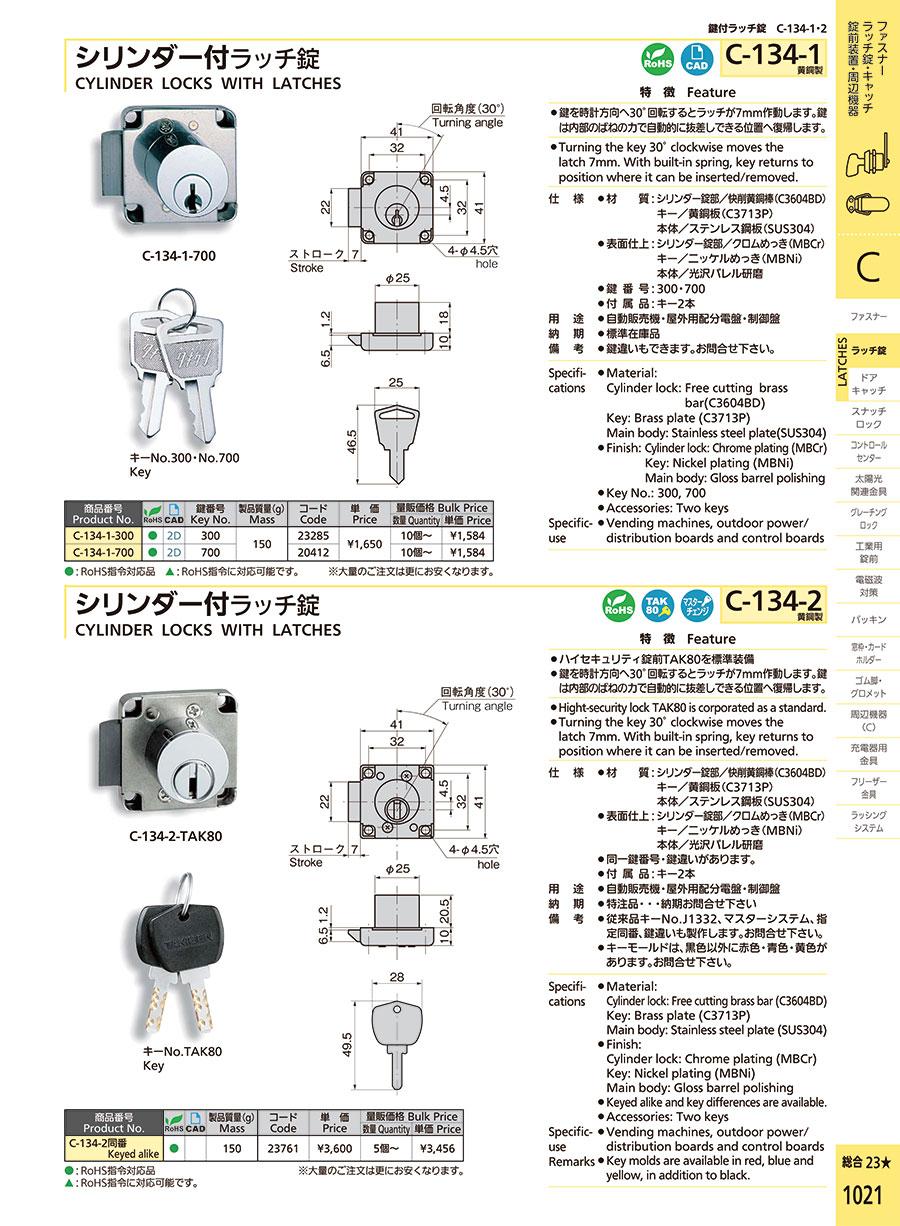

Latch Lock with Cylinder C-134-1
[Features]
· Rotating the key clockwise by 30° will activate the latch by 7 mm.
· Due to the internal spring force, the key will return to the position where it can be automatically withdrawn
· Rotating the key clockwise by 30° will activate the latch by 7 mm.
· Due to the internal spring force, the key will return to the position where it can be automatically withdrawn
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
C-134-1-300
Basic information
| Type | Lock(Embedded) | Key | 300 | Main Body Overall Length(L(mm)) | 41 |
|---|---|---|---|---|---|
| Main Body Width(W(mm)) | 41 | Thickness(H(mm)) | 28 | Lock external diameter(mm) | 25 |
| Main Body Material | Stainless Steel Plate | Surface Finish | Barrel Polishing | Key Material | Brass Plate |
| Key Surface Finish | Nickel plating | Product Code | 23285 |
This page is Latch Lock with Cylinder C-134-1, part number C-134-1-300.
You can find the detail information about specifications and dimensions on part number C-134-1-300.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
