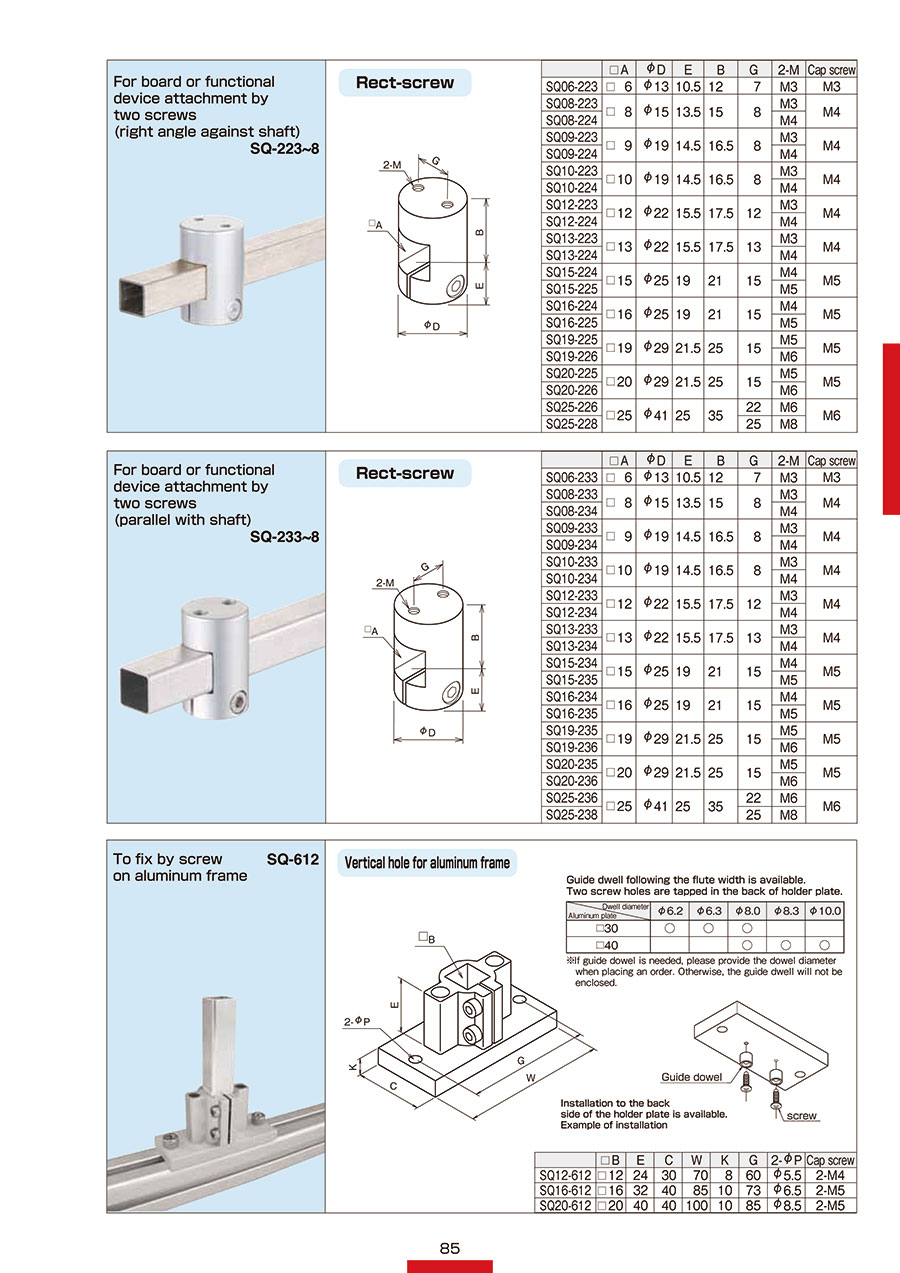

Square Pipe Joint Square, Threaded Type (2 Screws Perpendicular to the Shaft)
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| SQ06-223 |
| SQ08-223 |
| SQ08-224 |
| SQ09-223 |
| SQ09-224 |
| SQ10-223 |
| SQ10-224 |
| SQ12-223 |
| SQ12-224 |
| SQ13-223 |
| SQ13-224 |
| SQ15-224 |
| SQ15-225 |
| SQ16-224 |
| SQ16-225 |
| SQ19-225 |
| SQ19-226 |
| SQ20-225 |
| SQ20-226 |
| SQ25-226 |
| SQ25-228 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Post Dia. (mm) | Mounting Hole Screw Size M | □A (□S) (mm) | |
|---|---|---|---|---|---|---|---|
21.77 € | 1 | 9 Days | 6 | M3 | □6 | ||
21.80 € | 1 | 8 Days | 8 | M3 | □8 | ||
21.80 € | 1 | 9 Days | 8 | M4 | □8 | ||
23.08 € | 1 | 9 Days | 9 | M3 | □9 | ||
23.08 € | 1 | 9 Days | 9 | M4 | □9 | ||
22.08 € | 1 | Available |
Same day
Stock | 10 | M3 | □10 | |
23.08 € | 1 | 5 Days | 10 | M4 | □10 | ||
25.54 € | 1 | 9 Days | 12 | M3 | □12 | ||
25.54 € | 1 | 5 Days | 12 | M4 | □12 | ||
27.95 € | 1 | 9 Days | 13 | M3 | □13 | ||
27.95 € | 1 | 9 Days | 13 | M4 | □13 | ||
30.47 € | 1 | 5 Days | 15 | M4 | □15 | ||
29.21 € | 1 | Available |
Same day
Stock | 15 | M5 | □15 | |
30.45 € | 1 | 8 Days | 16 | M4 | □16 | ||
30.45 € | 1 | 8 Days | 16 | M5 | □16 | ||
37.83 € | 1 | 9 Days | 19 | M5 | □19 | ||
37.83 € | 1 | 9 Days | 19 | M6 | □19 | ||
35.87 € | 1 | Available |
Same day
Stock | 20 | M5 | □20 | |
37.82 € | 1 | 8 Days | 20 | M6 | □20 | ||
51.24 € | 1 | 7 Days | 25 | M6 | □25 | ||
53.00 € | 1 | 9 Days | 25 | M8 | □25 |
Loading...
Basic information
| How to Mount Device | Parallel with Tap | Material | Aluminum | Surface Treatment | Clear Anodized Aluminum |
|---|---|---|---|---|---|
| Collar | White (Standard Product) |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Post Dia.(mm)
-
Mounting Hole Screw Size M
-
□A (□S)(mm)
- □6
- □8
- □9
- □10
- □12
- □13
- □15
- □16
- □19
- □20
- □25
-
Type
- SQ-22
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 7 Days or Less
- 8 Days or Less
- 9 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
