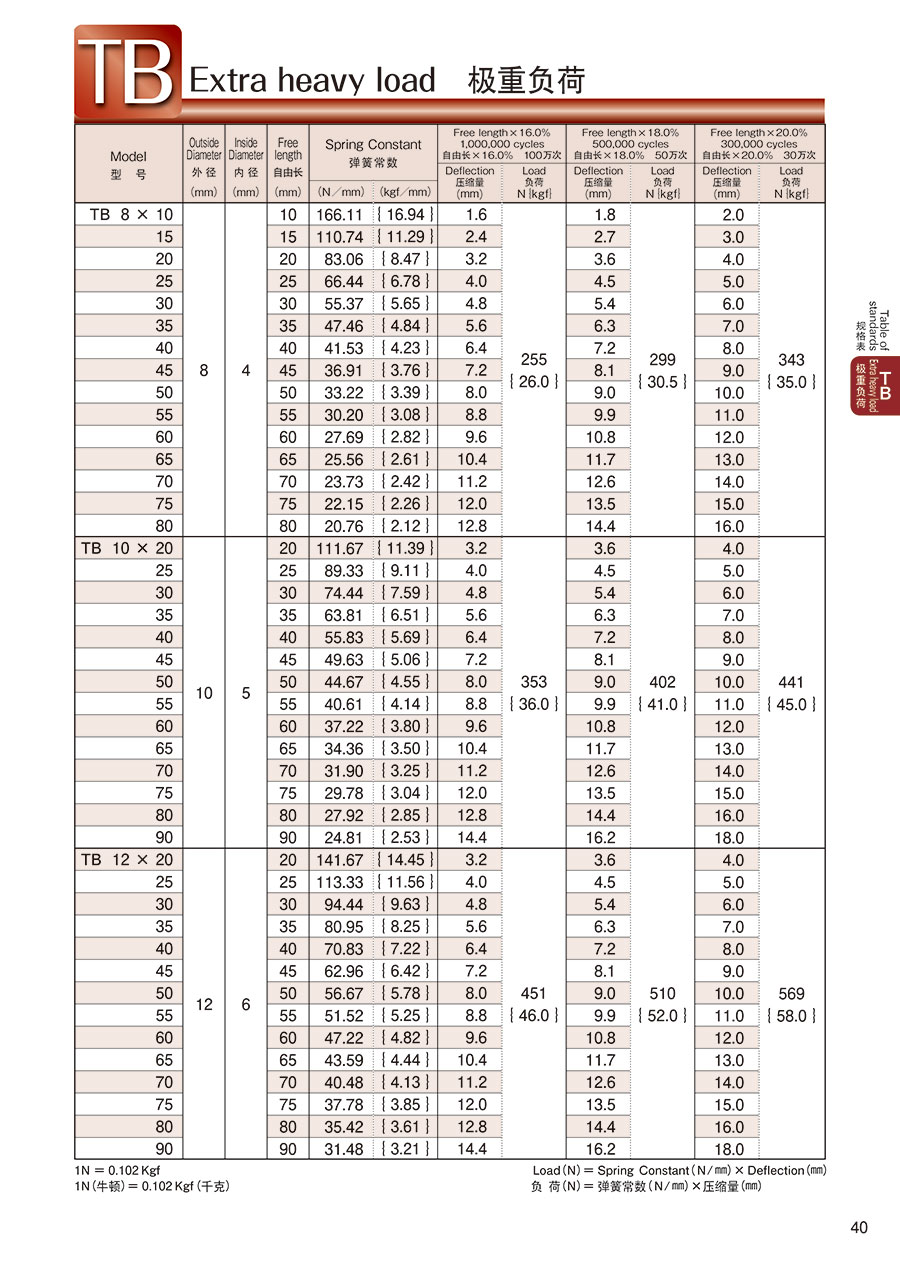

Strong Spring TB (Extra Heavy Load)
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Max. Load (Secified Range) (N) | Maximum Load Capacity (N) | Customer-Specified Length (mm) | Outer Diameter (mm) | Coil I.D. ID (mm) | Spring Constant (N/mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
1.77 € | 1 | 5 Days | 10 | 230.01 to 580.00 | 343 | 10 | 8 | 4 | 166.11 | ||
2.77 € | 1 | Available |
Same day
Stock | 10 | 230.01 to 580.00 | 343 | 15 | 8 | 4 | 110.74 | |
1.98 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 343 | 20 | 8 | 4 | 83.06 | ||
3.05 € | 1 | Available |
Same day
Stock | 10 | 230.01 to 580.00 | 343 | 25 | 8 | 4 | 66.44 | |
2.56 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 343 | 30 | 8 | 4 | 55.37 | ||
2.43 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 343 | 35 | 8 | 4 | 47.46 | ||
3.23 € | 1 | Available |
Same day
Stock | 10 | 230.01 to 580.00 | 343 | 40 | 8 | 4 | 41.53 | |
2.80 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 343 | 50 | 8 | 4 | 33.22 | ||
3.25 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 343 | 55 | 8 | 4 | 30.2 | ||
3.62 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 343 | 60 | 8 | 4 | 27.69 | ||
3.17 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 343 | 65 | 8 | 4 | 25.56 | ||
3.86 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 343 | 70 | 8 | 4 | 23.73 | ||
3.61 € | 1 |
Same day
Stock | 10 | 230.01 to 580.00 | 343 | 75 | 8 | 4 | 22.15 | ||
4.38 € | 1 | Available |
Same day
Stock | 10 | 230.01 to 580.00 | 343 | 80 | 8 | 4 | 20.76 | |
2.09 € | 1 | 5 Days | 10 | 230.01 to 580.00 | 441 | 20 | 10 | 5 | 111.67 | ||
2.27 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 441 | 25 | 10 | 5 | 89.33 | ||
2.99 € | 1 | Available |
Same day
Stock | 10 | 230.01 to 580.00 | 441 | 30 | 10 | 5 | 74.44 | |
2.56 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 441 | 35 | 10 | 5 | 63.81 | ||
2.74 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 441 | 40 | 10 | 5 | 55.83 | ||
2.92 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 441 | 45 | 10 | 5 | 49.63 | ||
3.04 € | 1 | 5 Days | 10 | 230.01 to 580.00 | 441 | 50 | 10 | 5 | 44.67 | ||
3.07 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 441 | 55 | 10 | 5 | 40.61 | ||
3.21 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 441 | 60 | 10 | 5 | 37.22 | ||
3.47 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 441 | 65 | 10 | 5 | 34.36 | ||
3.47 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 441 | 70 | 10 | 5 | 31.9 | ||
3.59 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 441 | 75 | 10 | 5 | 29.78 | ||
3.72 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 441 | 80 | 10 | 5 | 29.78 | ||
4.05 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 441 | 90 | 10 | 5 | 24.81 | ||
2.83 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 569 | 20 | 12 | 6 | 141.67 | ||
2.74 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 569 | 25 | 12 | 6 | 113.33 | ||
2.76 € | 1 |
Same day
Stock | 10 | 230.01 to 580.00 | 569 | 30 | 12 | 6 | 94.44 | ||
3.00 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 569 | 35 | 12 | 6 | 80.95 | ||
3.21 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 569 | 40 | 12 | 6 | 70.83 | ||
3.39 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 569 | 45 | 12 | 6 | 62.96 | ||
3.53 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 569 | 50 | 12 | 6 | 56.67 | ||
3.78 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 569 | 55 | 12 | 6 | 51.52 | ||
3.92 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 569 | 60 | 12 | 6 | 47.22 | ||
4.33 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 569 | 65 | 12 | 6 | 43.59 | ||
4.11 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 569 | 70 | 12 | 6 | 40.48 | ||
4.26 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 569 | 75 | 12 | 6 | 37.78 | ||
4.65 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 569 | 80 | 12 | 6 | 35.42 | ||
5.07 € | 1 | 7 Days | 10 | 230.01 to 580.00 | 569 | 90 | 12 | 6 | 31.48 | ||
2.97 € | 1 | 5 Days | 10 | 580.01～ | 736 | 25 | 14 | 7 | 148.22 | ||
2.97 € | 1 | 5 Days | 10 | 580.01～ | 736 | 30 | 14 | 7 | 123.52 | ||
3.21 € | 1 | 7 Days | 10 | 580.01～ | 736 | 35 | 14 | 7 | 105.87 | ||
3.39 € | 1 | 7 Days | 10 | 580.01～ | 736 | 40 | 14 | 7 | 92.64 | ||
3.66 € | 1 | 7 Days | 10 | 580.01～ | 736 | 45 | 14 | 7 | 82.35 | ||
3.87 € | 1 | 7 Days | 10 | 580.01～ | 736 | 50 | 14 | 7 | 74.11 | ||
4.11 € | 1 | 7 Days | 10 | 580.01～ | 736 | 55 | 14 | 7 | 67.37 | ||
4.31 € | 1 | 7 Days | 10 | 580.01～ | 736 | 60 | 14 | 7 | 61.76 | ||
4.63 € | 1 | 5 Days | 10 | 580.01～ | 736 | 65 | 14 | 7 | 57.01 | ||
7.49 € | 1 | 5 Days | 10 | 580.01～ | 736 | 70 | 14 | 7 | 52.94 | ||
5.06 € | 1 | 7 Days | 10 | 580.01～ | 736 | 75 | 14 | 7 | 49.41 | ||
5.06 € | 1 | 7 Days | 10 | 580.01～ | 736 | 80 | 14 | 7 | 46.32 | ||
5.31 € | 1 | 7 Days | 10 | 580.01～ | 736 | 90 | 14 | 7 | 41.17 | ||
5.46 € | 1 | 7 Days | 10 | 580.01～ | 736 | 100 | 14 | 7 | 37.06 | ||
3.23 € | 1 | 5 Days | 10 | 580.01～ | 981 | 25 | 16 | 8 | 196.22 | ||
3.53 € | 1 | 7 Days | 10 | 580.01～ | 981 | 35 | 16 | 8 | 140.16 | ||
3.78 € | 1 | 7 Days | 10 | 580.01～ | 981 | 40 | 16 | 8 | 122.64 | ||
4.06 € | 1 | 7 Days | 10 | 580.01～ | 981 | 45 | 16 | 8 | 109.01 |
Loading...
Basic information
| Material | Silicon Chrome Steel for Springs | Color | Brown |
|---|
