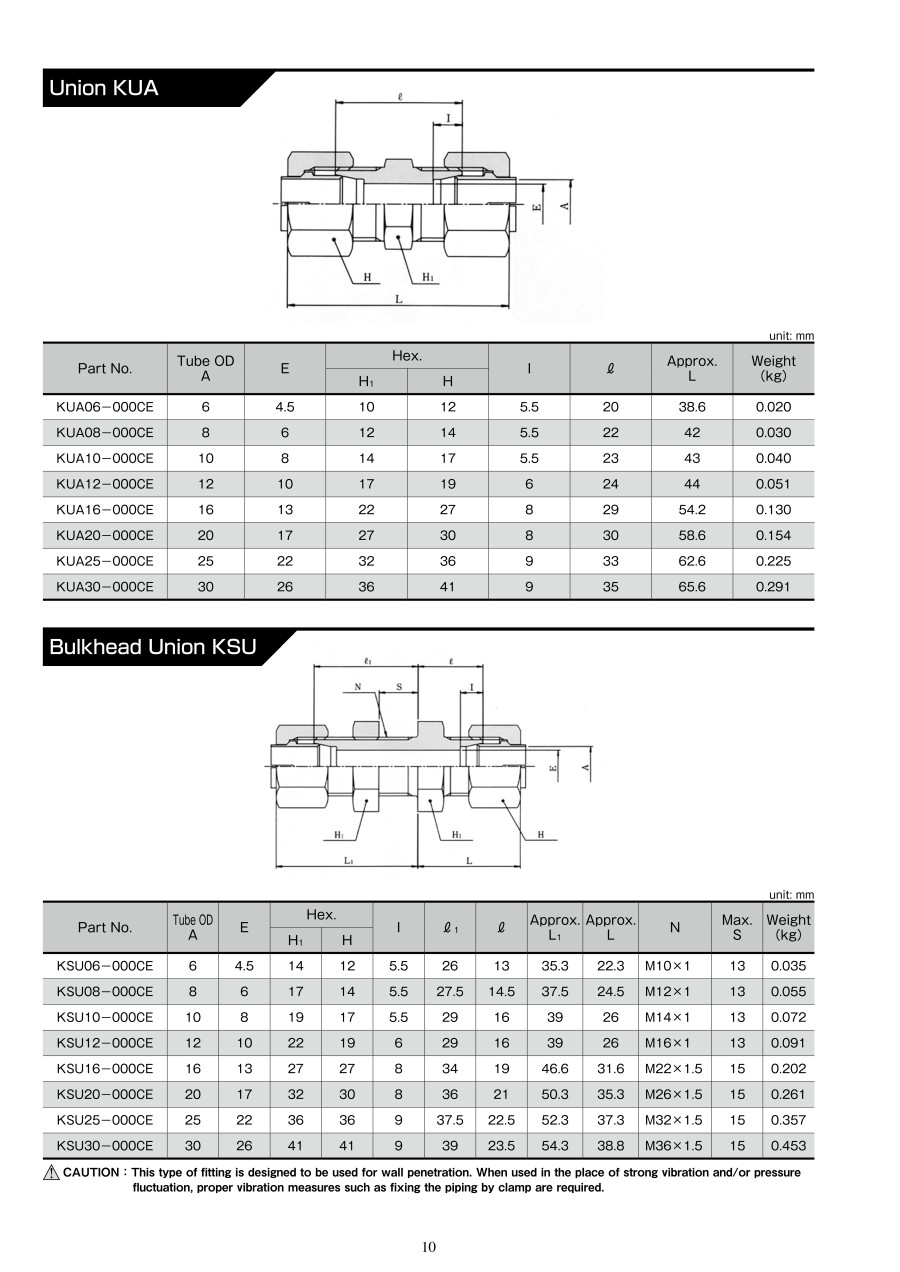

Flareless Joint for CE-Model Steel Pipe Union KUA
The CE series of biting fittings were developed for hydraulic equipment subjected to up to 13.7 MPa of pressure.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| KUA06-000CE |
| KUA08-000CE |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Nominal 1 (mm) | Applicable Pipe O.D. 1 (mm) | |
|---|---|---|---|---|---|---|
13.12 € | 1 | 5 Days | 6 | 6 | ||
14.78 € | 1 | 5 Days | 8 | 8 |
Loading...
Basic information
| Type | Fitting | Material | Carbon steel | Applicable Pipe Type | Steel pipe (general) |
|---|---|---|---|---|---|
| Applicable Fluid | Air / Oil | Connection Type | Pipe-to-Pipe, Equal Diameter, Socket Type | Connection Shape | Straight Pipe-to-Screw (Union/Socket/Reducer, etc.) |
| Fitting type | Bite type Fittings | Applicable Tube Size Type | Steel pipe metric size | Material of Applicable Pipe | Steel |
| Max. Operating Pressure(MPa) | 13.7 | Operating Temperature Range(°C) | -20::250 | Divisions of Max. Operating Pressure(MPa) | More than 2.0MPa |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
