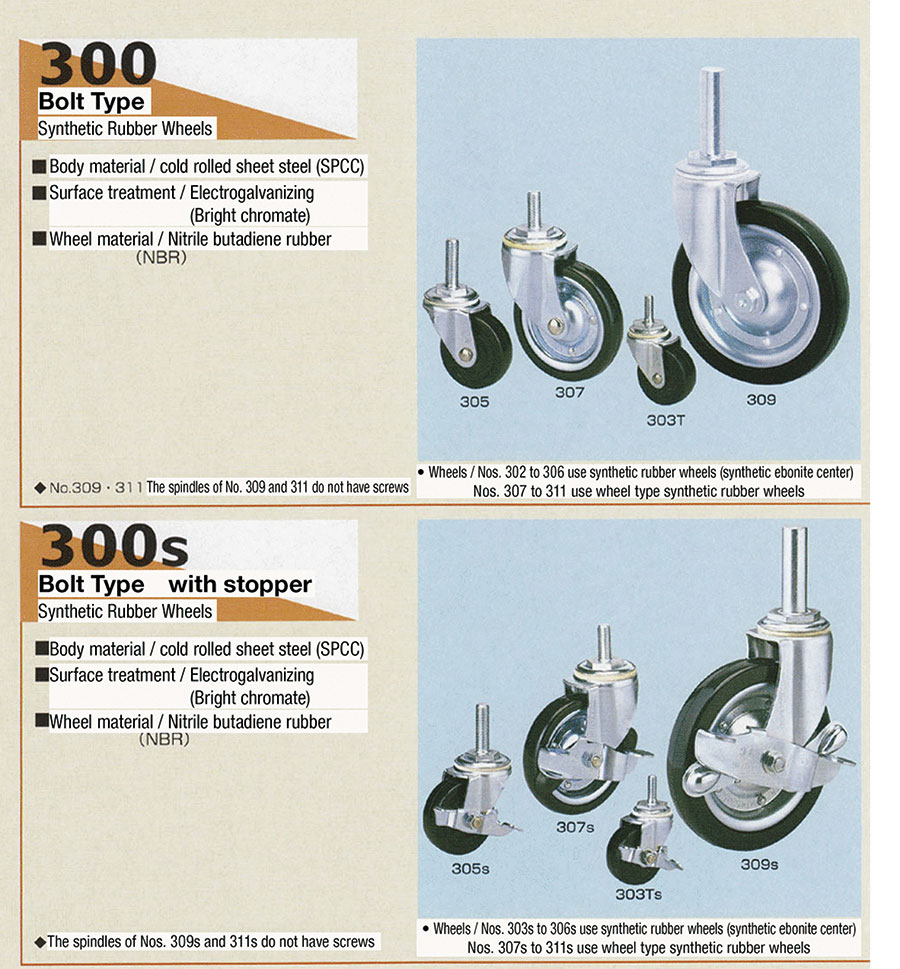

Standard Class 300 Bot Type Synthetic Rubber Wheel (Packing Castors) (306)
- Volume Discount
Product Details:
Manufacturer part number: 306
Brand: UCHIMURA
Price: 17.65 €
Delivery time: 12 Days
Technical Data:
Wheel mounting height H: 95 mm
Load Range: 35.01~80.00 daN
Allowable Load: 63.7 daN
Screw Diameter d (Main Mounting Shaft Diameter): M12_P1.25
Wheel Dia. D: 75 mm
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
306
Part Number
|
|---|
| 306 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel mounting height H (mm) | Load Range (daN) | Allowable Load (daN) | Screw Diameter d (Main Mounting Shaft Diameter) | Wheel Dia. D (mm) | Wheel width W (mm) | Turning Radius r (mm) | Wheel Color | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
17.65 € | 1 | Available | 12 Days | 95 | 35.01~80.00 | 63.7 | M12_P1.25 | 75 | 21 | 63 | Black (Center Portion Synthetic Ebonite-Based Synthetic Rubber Wheels) |
Loading...
Basic information
| Caster Type | Screw-In Type | Stopper | NA | Wheel Material | Nitrile Butadiene Rubber (NBR) |
|---|---|---|---|---|---|
| Wheel Characteristics | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance | Main Body Material | Cold rolled steel plate (EN 1.0330 Equiv.) |
This page is Standard Class 300 Bot Type Synthetic Rubber Wheel (Packing Castors), part number 306.
You can find the detail information about specifications and dimensions on part number 306.
Configure
Basic Attributes
-
Type
- 300
-
Wheel mounting height H(mm)
-
Load Range(daN)
- 35.01~80.00
- 80.01~140.00
-
Allowable Load(daN)
-
Screw Diameter d (Main Mounting Shaft Diameter)
-
Wheel Dia. D(mm)
-
Wheel width W(mm)
-
Turning Radius r(mm)
-
Wheel Color
- Black (Center Portion Synthetic Ebonite-Based Synthetic Rubber Wheels)
- Black (Foil-Type Synthetic Rubber Wheel)
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 12 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Variation of this product
| Part Number |
|---|
| 302T |
| 303 |
| 303T |
| 304 |
| 305 |
| 307 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Standard Shipping Days ? | Wheel mounting height H (mm) | Load Range (daN) | Allowable Load (daN) | Screw Diameter d (Main Mounting Shaft Diameter) | Wheel Dia. D (mm) | Wheel width W (mm) | Turning Radius r (mm) | Wheel Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
5.76 € | 1 | 5 Days | 56 | 35.01~80.00 | 39.2 | M8_P1.25 | 40 | 17 | 39 | Black (Center Portion Synthetic Ebonite-Based Synthetic Rubber Wheels) | ||
8.11 € | 1 | Available |
Same day
Stock | 67 | 35.01~80.00 | 49 | M12_P1.25 | 50 | 20 | 44 | Black (Center Portion Synthetic Ebonite-Based Synthetic Rubber Wheels) | |
8.11 € | 1 | Available |
Same day
Stock | 66 | 35.01~80.00 | 49 | M8_P1.25 | 50 | 20 | 44 | Black (Center Portion Synthetic Ebonite-Based Synthetic Rubber Wheels) | |
8.51 € | 1 | Available | 12 Days | 69 | 35.01~80.00 | 53.9 | M12_P1.25 | 50 | 20 | 45 | Black (Center Portion Synthetic Ebonite-Based Synthetic Rubber Wheels) | |
14.86 € | 1 | Available | 12 Days | 82 | 35.01~80.00 | 58.8 | M12_P1.25 | 63 | 21 | 57 | Black (Center Portion Synthetic Ebonite-Based Synthetic Rubber Wheels) | |
31.86 € | 1 | Available | 5 Days | 124 | 80.01~140.00 | 83.3 | M12_P1.25 | 100 | 22 | 83 | Black (Foil-Type Synthetic Rubber Wheel) |
